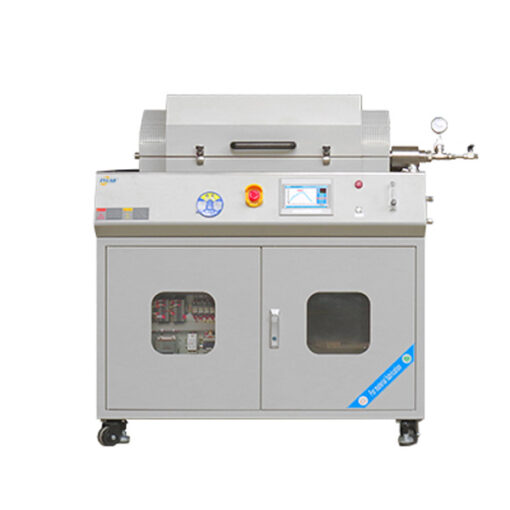

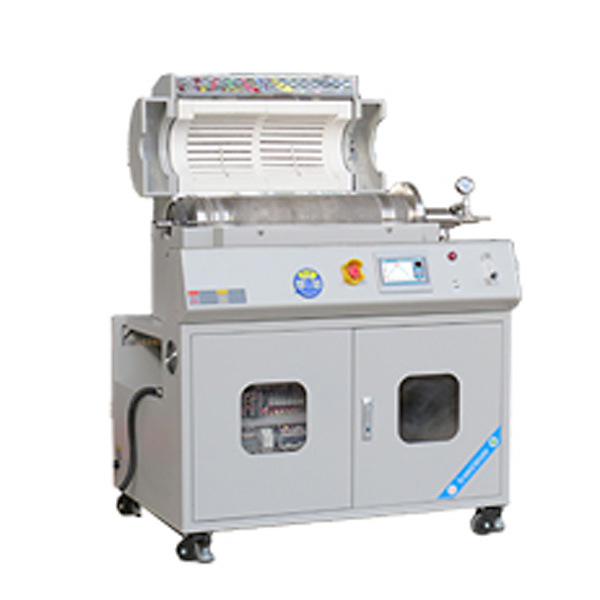

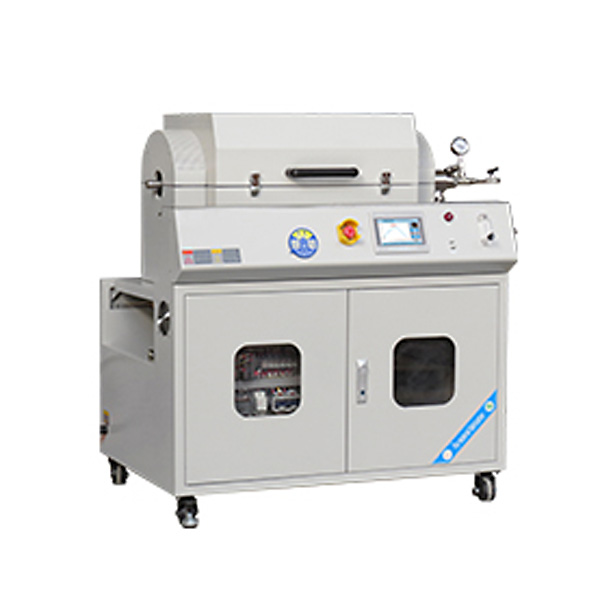

High-Performance Low-Temperature Corrosion-Resistant Rotary Furnace

High-Performance Low-Temperature Corrosion-Resistant Rotary Furnace

Introduction

This specialized Corrosion-Resistant Rotary Furnace is designed for sintering applications in ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new material development, special materials, construction materials, metals, non-metals, and other compound materials. It is widely used in universities, research institutes, and industrial enterprises. The furnace features PLC control and touchscreen operation, ensuring simple and convenient use.

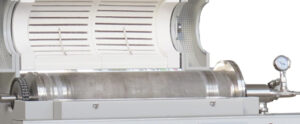

The furnace tube is made of austenitic stainless steel (316L), enhanced with molybdenum (Mo) for superior corrosion resistance. This stainless steel provides excellent resistance to pitting and high-temperature performance, operating effectively at temperatures up to 1200–1300°C.

Features and Benefits

1. Stable and Reliable Control: Easy to operate.
2. Advanced PID Fuzzy Control: Ensures high temperature control precision, within ±1°
3. High-Purity Alumina Fiber Insulation: Superior insulation and energy efficiency.

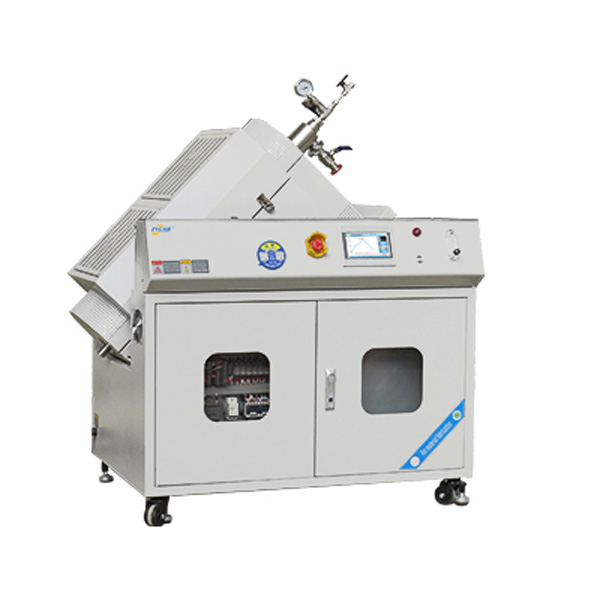

4. Adjustable Tilt Angle: Up to -45° to +5°.
5. Data Storage Capability: Can store key sintering parameters for up to 30 days (8 hours/day operation).
6. Recipe Functionality: Over 100 recipes can be pre-stored.
7. Networking Capability: Equipped with RJ45 interface and TCP/IP protocol, allowing integration with host computers (requires dedicated software).

Technical Parameters

Model	RTF500
Power Supply	380V 50HZ, 12 KW
Temperature Control Accuracy	±1℃
Max.Temperature	1150℃
Tilt Angle Range	-43°-4°
Maximum Rotation Speed	18.2r/min (adjustable)
Heating Zone	φ250*600mm
Furnace Tube Size	316Lφ203*870mm（6 mm thickness）
Effective Load Volume	11L
Material Mixing Device	Built-in stainless steel spiral agitator
Furnace Dimensions	1550 mm (L) × 1400 mm (H) × 1000 mm (D)
Recommended Heating Rate	≤10℃/min
Weight	Approx. 350 kg
Details
Control System	1.      Sintering Curve Settings: Dynamic display of set curves. Multiple sintering process curves can be pre-stored and freely adjusted. 2.      Scheduled Sintering: Enables unmanned sintering operations. 3.      Real-Time Monitoring: Displays and records sintering data such as power and voltage. Data export available for paperless documentation. 4.      Remote Control: Enables real-time monitoring of equipment status. 5.      Temperature Calibration: Non-linear corrections applied throughout the sintering process to account for differences between main control and sample temperatures.
Service Support	One-year limited warranty with lifetime support.

Applications

This specialized Corrosion-Resistant Rotary Furnace is designed for sintering applications in ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new material development, special materials, construction materials, metals, non-metals, and other compound materials. It is widely used in universities, research institutes, and industrial enterprises.
