Compact Box Furnace 1500°C | Small Laboratory Heat Treatment Furnace 1.7L

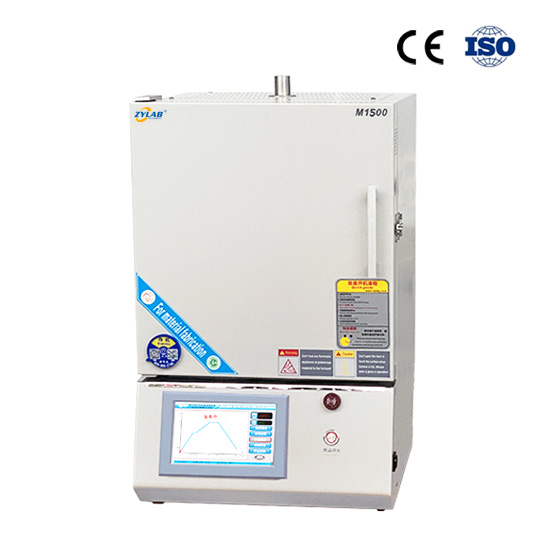

ZYLAB Compact Box Furnace 1500°C

ZYLAB Compact Box Furnace is a high-performance electric furnace designed for limited-space laboratories and research settings. With a 1.7L chamber and a maximum temperature of 1500°C, it offers precise temperature control, reliable safety features, and long-lasting SiC heating elements—ideal for R&D and academic use.

Key Features

• High Maximum Temperature – Up to 1500°C
  Suitable for high-temperature sintering, annealing, and material testing applications.

• Compact 1.7L Chamber
  Internal dimensions: 120 × 120 × 120 mm. Ideal for small samples and benchtop use in space-limited labs.

• 7-Inch Color Touchscreen Controller
  Intuitive interface with real-time temperature display, program memory, and precise PID control.

• 30-Segment Programmable Logic
  Enables automatic execution of custom heating profiles for consistent and repeatable results.

• Durable Ceramic Fiber Chamber
  Offers low thermal conductivity, fast heat-up rates, and improved energy efficiency.

• Premium Silicon Carbide Heating Elements
  Equipped with high-purity SiC rods featuring excellent acid resistance and corrosion resistance, ensuring durability and clean thermal processing.

• Double-Layer Steel Casing with Cooling Fan
  Keeps the exterior surface temperature below 50°C to ensure safe operation in lab environments.

• Top-Mounted Exhaust Chimney
  Efficient removal of gases and fumes generated during heat treatment processes, improving workplace safety and sample integrity.

• Customizable Chamber Dimensions
  Furnace chamber size can be tailored to meet specific experimental or production requirements.

Applications of Compact Box Furnace

• Ceramic & Glass Sintering – Perfect for firing technical ceramics, glass test pieces, and enamel coatings

• Battery Materials – Used for sintering electrodes and solid-state electrolyte samples

• Metal Annealing & Debinding – Ideal for powder metallurgy research and small metal parts

• Material Testing – Excellent for labs performing thermal analysis, crystallization, and heat treatment studies

• University & R&D Labs – Suitable for education, innovation projects, and controlled thermal environments

Technical Specifications of Compact Box Furnace

Model	M1500-12
Working voltage	AC 208 – 240V, 50/60 Hz (according to requirement)
Max. Power	1.5KW
Maximum Temperature	1500°C (for ≤1 hour)
Continuous Working Temp	1450°C (continuous)
Max Heating Rate	≤20°C/min
Chamber Size	120 × 120 × 120 mm
Temperature Controller		Color touchscreen with intuitive GUI (English/Chinese switchable). Embedded OS with smart HMI. Non-linear temperature calibration. Stores up to 15 programs, 30 segments per program. Safety features: over-temp alarm, thermocouple break alert, leakage protection.
Temperature Accuracy	±1°C
Heating Element		High-density silicon carbide rods
Net Weight	50 kg
Safety Notice	Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance.
Warranty & Support	18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support.

Advantages of ZYLAB Furnaces

• Flexible Customization – Designed to meet diverse laboratory demands

• Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments

• Professional Support – Dedicated technical service and documentation

• Efficient Logistics – Timely delivery and global shipment options
