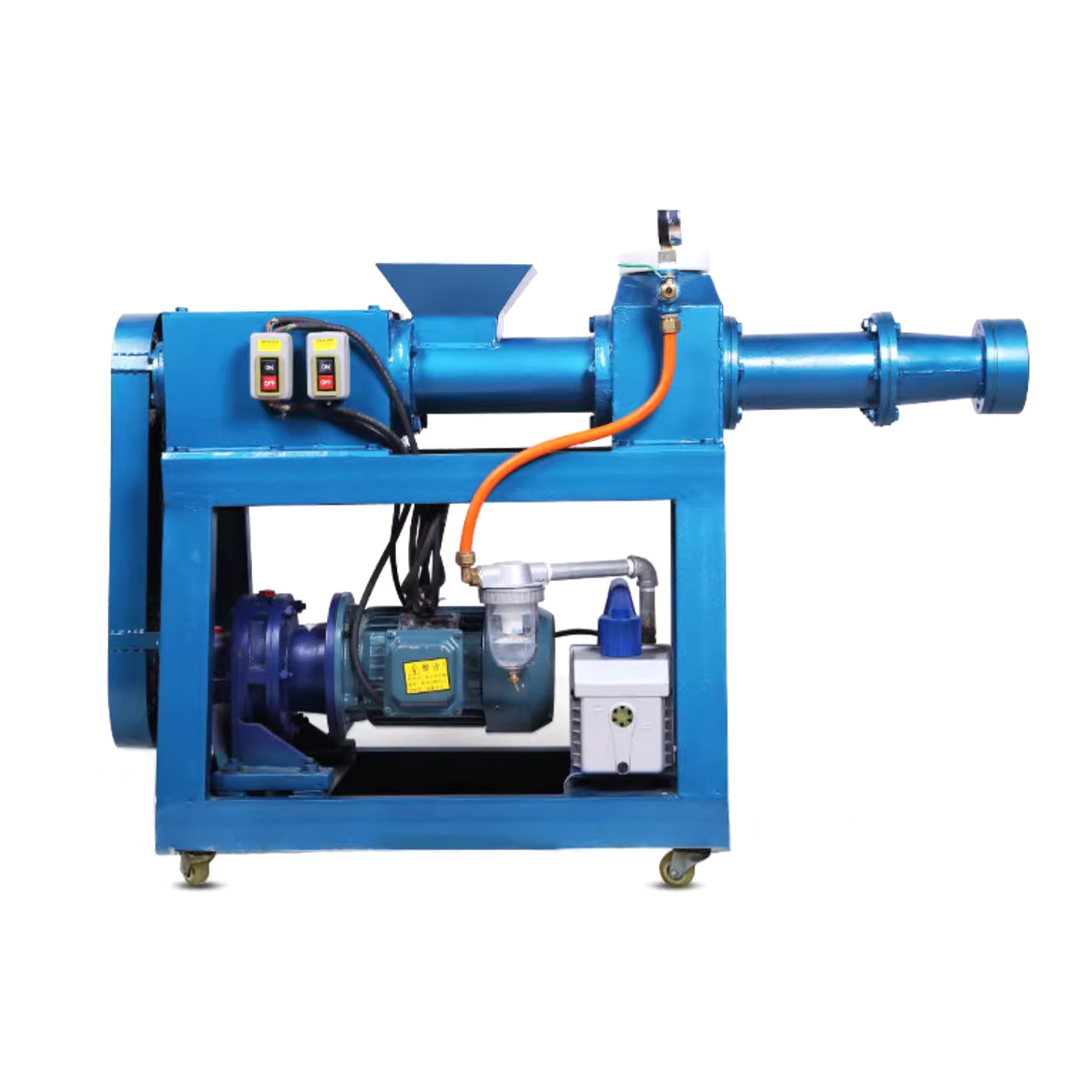

Vacuum Clay Kneading Machine
Introduction:
A vacuum clay kneading machine is a mechanical device used for vacuum processing ceramic materials. The leftover clay usually contains numerous air bubbles, and direct firing may result in cracking during the kiln process. To achieve the desired quality of new clay, we utilize a vacuum clay kneading machine, employing vacuum refining to eliminate the trapped air bubbles.
Main Features:

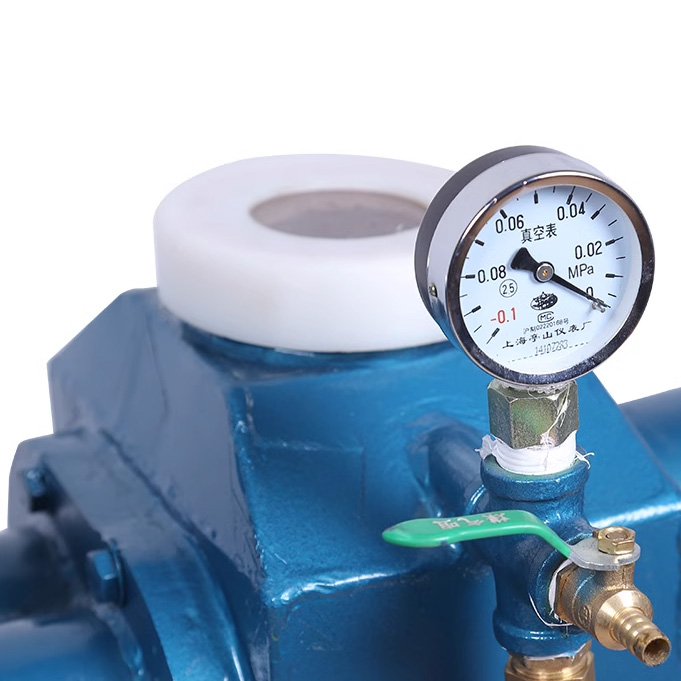

- The vacuum hydraulic gauge ensures accurate and safe readings, allowing for a more intuitive inspection of density.
- With a large output, the clay has a fine texture, and the material is densely compacted, effectively eliminating air bubbles.

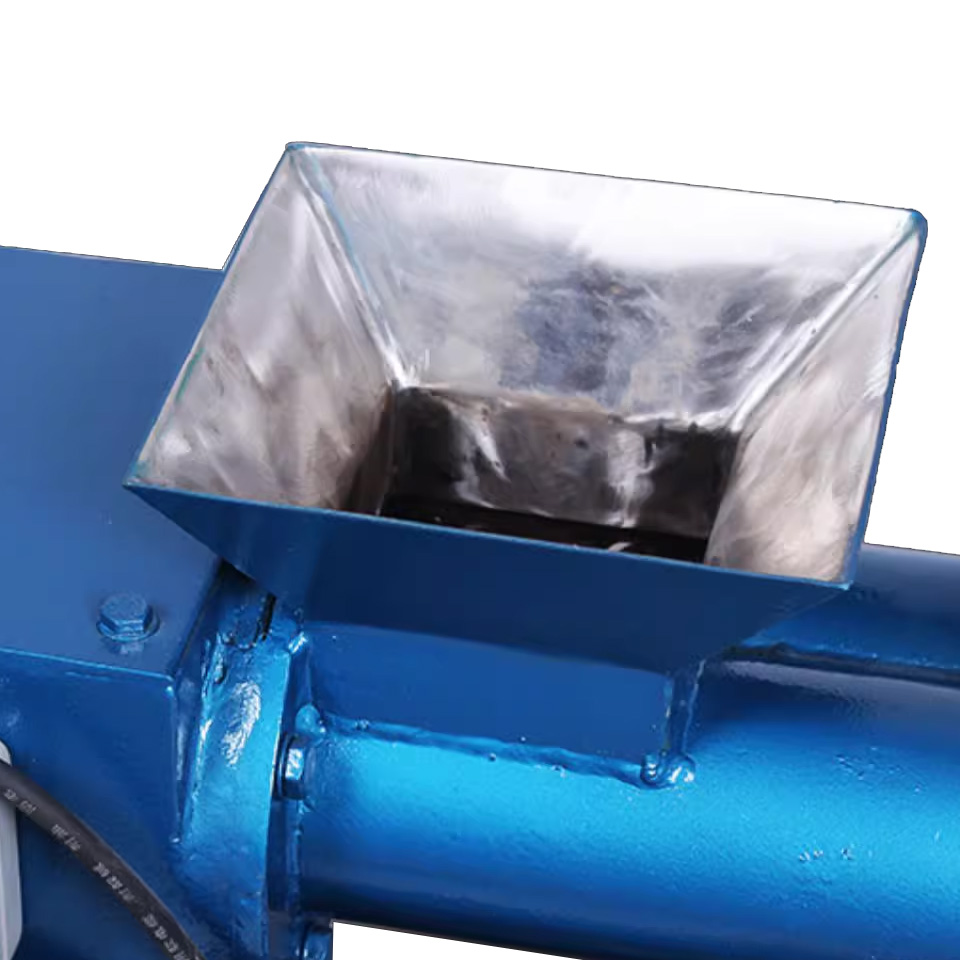

- The stainless-steel dual-axis feeding inlet facilitates a more delicate clay refining process, and preventing material contamination.
Specification:
| Product Name | Vacuum Clay Kneading Machine | Model | TCSW-80A |
| Voltage | 220V | Motor Power | 2.2KW |
| Vacuum Pump Power | 550W | Evacuation Speed | 4L/S |
| Production Capacity | 150-200kg/H | Rotation Speed | 1390rpm |

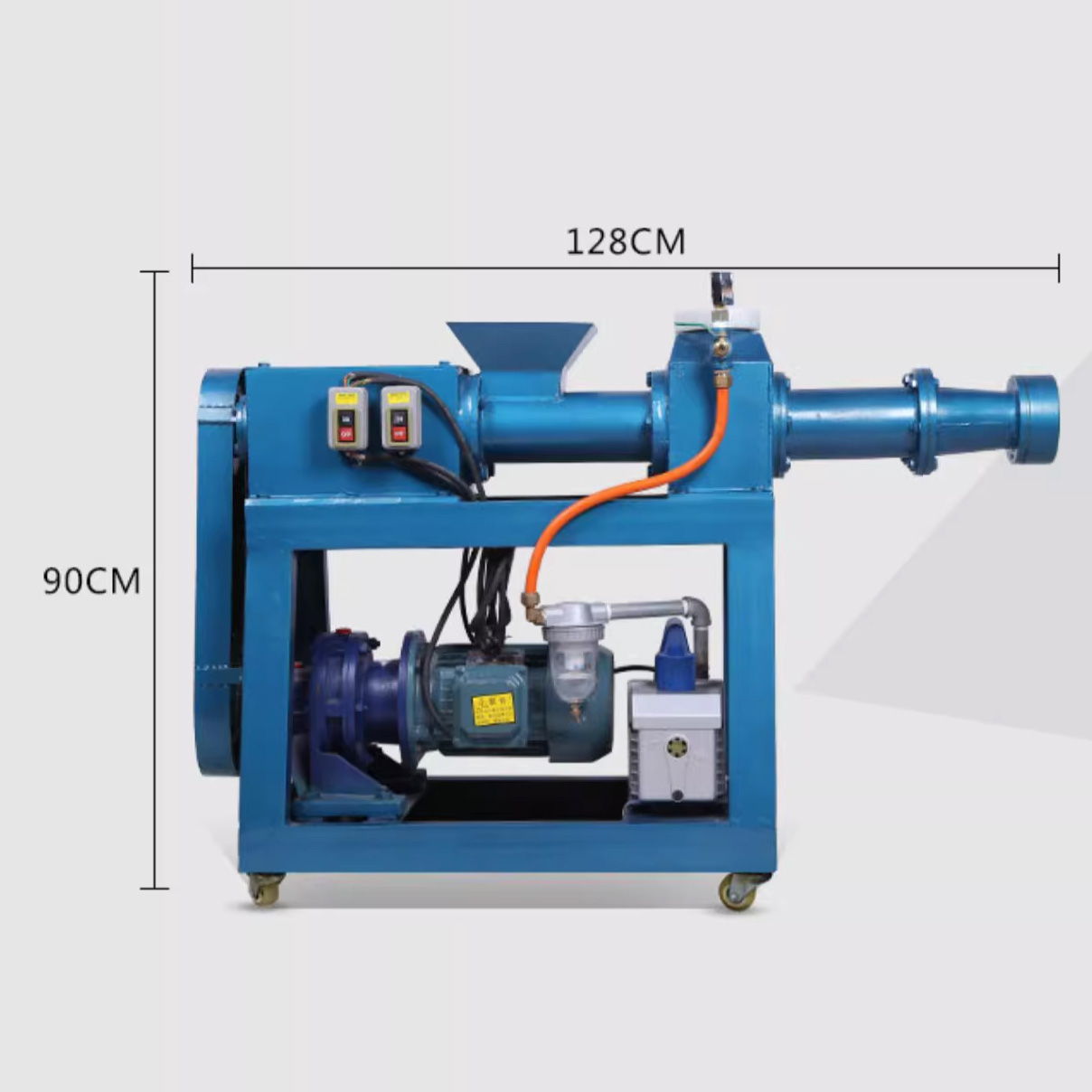

| Dimensions | 128*90cm | Weight | About 180kg |

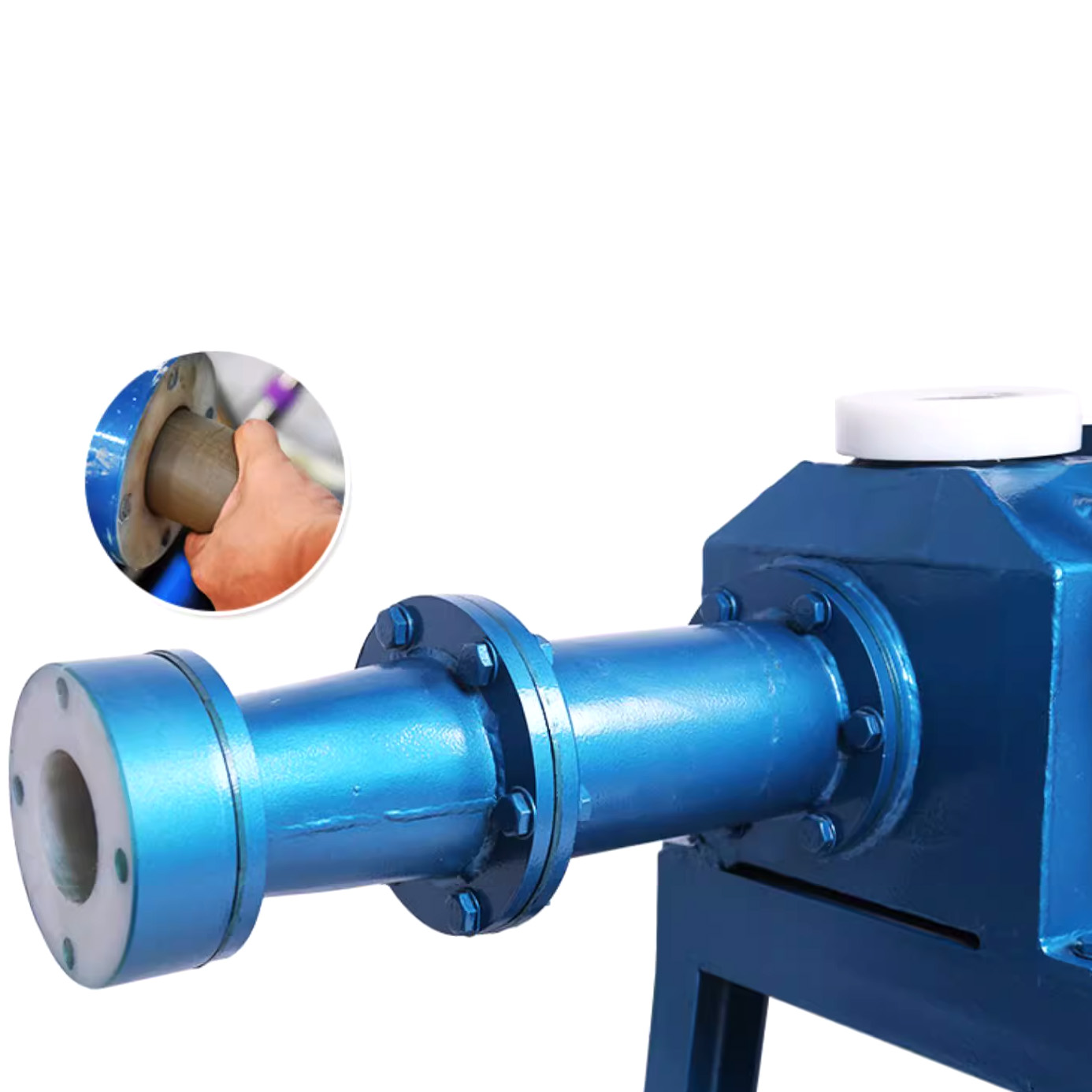

| Note | The minimum diameter of the mud nozzle is 25mm, and the maximum diameter is 60mm. | ||
Fields:
Art Colleges
Kindergarten
Art Studio
Personal Hobby Studio
Education and Training
