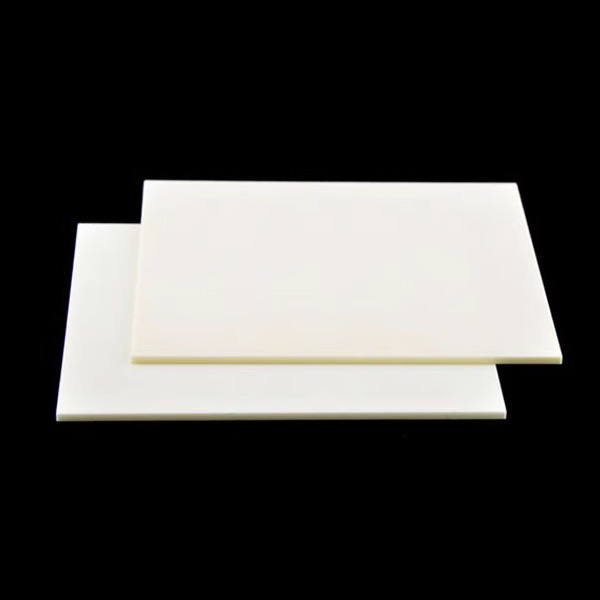

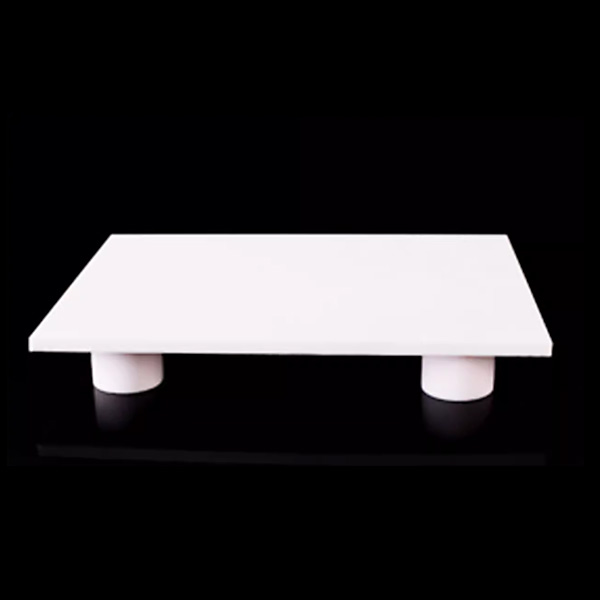

High-purity 99% Alumina Fine Corundum Ceramic Setter Plate for Kiln(Furnace)Furniture
Introduction:
The high-purity 99% alumina fine corundum ceramic setter plate for kiln (furnace) furniture is a specialized component designed for use in high-temperature kiln environments. It serves as a support platform for arranging and firing precision components with utmost accuracy and reliability. Crafted from top-quality materials and engineered to withstand up to 1700.C high temperatures.
Features:
1. The material of the product is 99% alumina (Al2O3 > 99%).
2. Adopting slip casting/pressure molding technology.
3. Firing temperature is 1800°C, long-term use temperature ≤1600°C.
4. High temperature resistance and chemical corrosion resistance.
Benefits:
1. Superior Purity: With a purity level of more than 99% alumina, this setter plate offers exceptional chemical stability and resistance to contamination.
2. High Temperature Resistance: The fine corundum ceramic composition of the plate enables it to withstand extremely high temperatures encountered in kiln firing processes without warping or deforming, ensuring consistent performance over prolonged use.
3. Precision Machining: Each setter plate is meticulously crafted to precise dimensions, ensuring uniformity and accuracy in component positioning during firing.
4. Longevity and Durability: This setter plate exhibits exceptional durability, resisting wear, corrosion, and thermal shock for extended service life and reliable performance.
5. Cost-Effective Solution: Through rational layout and design, the setter plate can process multiple samples simultaneously or increase processing speed. helps minimize material wastage and optimize production throughput.

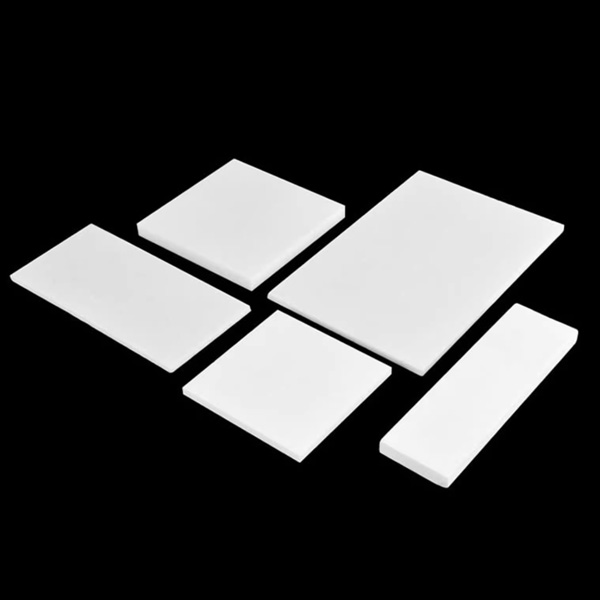

Specifications:
50*40*3mm | 50*50*4.5mm | 60*60*4mm | 70*70*7mm |

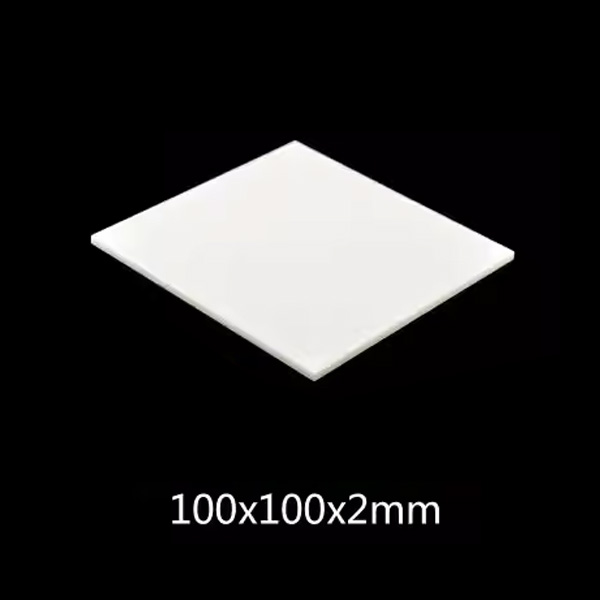

90*90*8mm | 100*30*7mm | 100*50*3mm | 100*100*2mm |
100*100*7mm | 100*100*8mm | 120*120*6mm | 120*120*7mm |
121*81*5mm | 122*86*7mm | 140*140*7mm | 145*145*8mm |
150*40*5mm | 150*130*7mm | 180*180*6mm | 190*145*6mm |

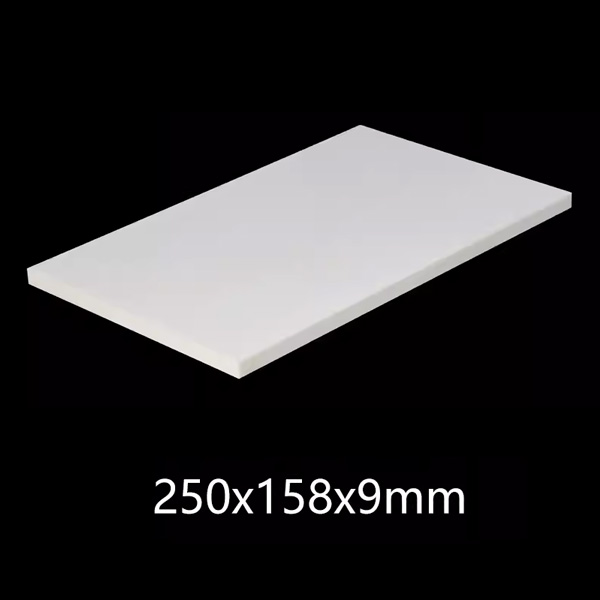

200*100*7mm | 200*200*7mm | 206*126*7mm | 250*158*9mm |
295*275*5mm | 320*320*6mm | ||
Note: Above list is our standard stock size.
Other sizes can be customized. |
Related Furnaces:

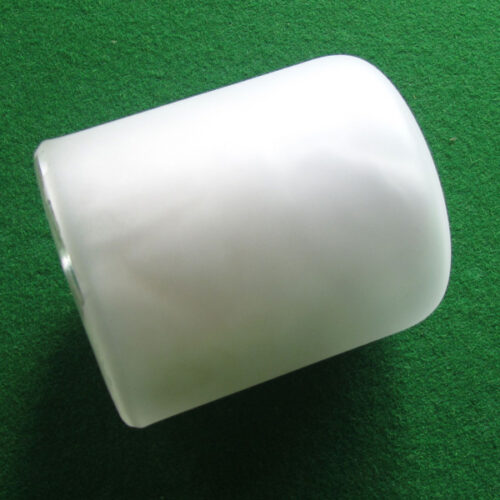

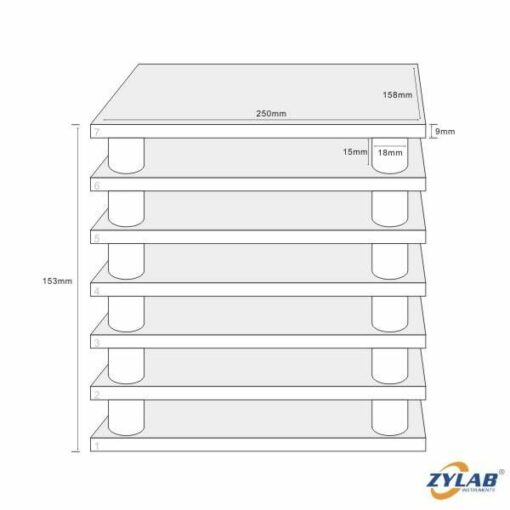

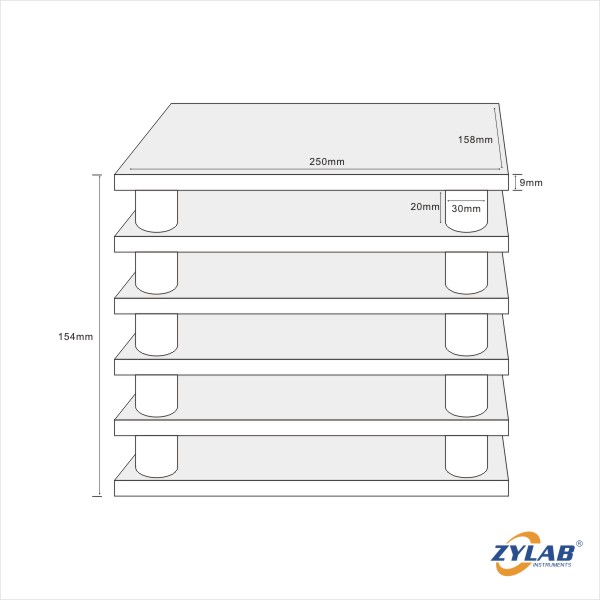

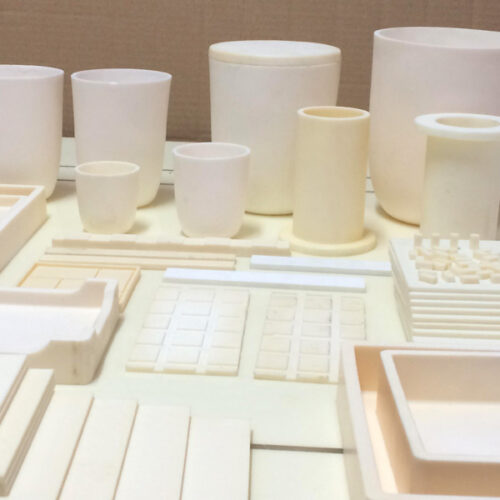

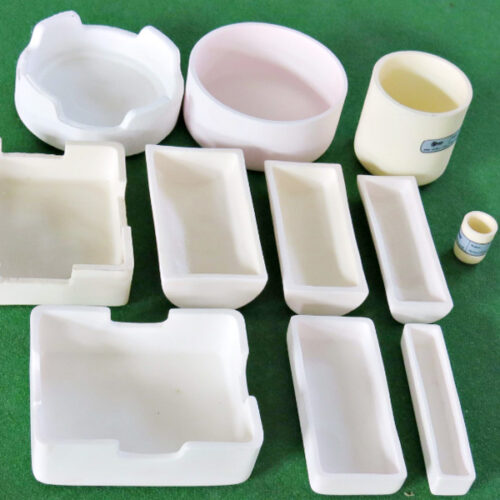

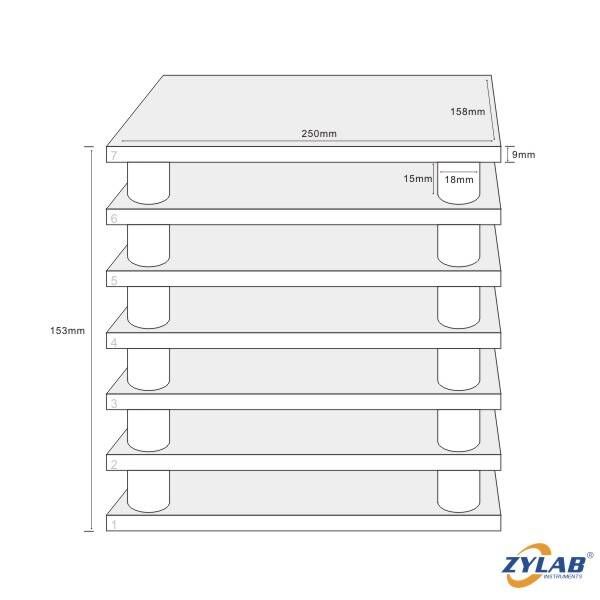

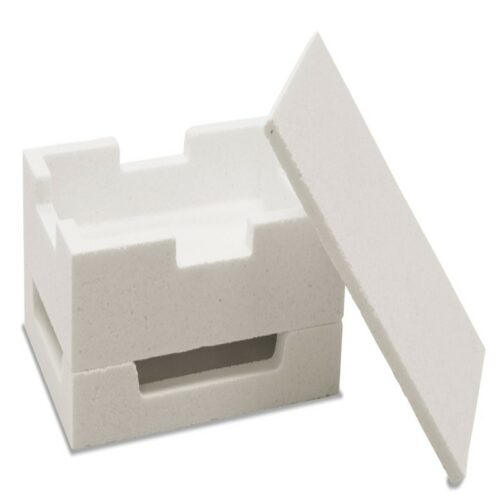

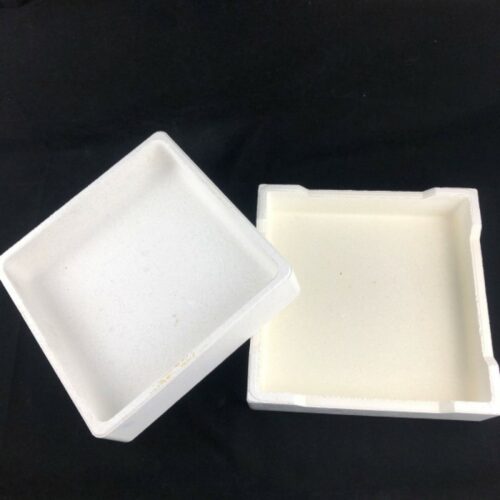

Other Related Furnace Furniture:
Precautions for Using Ceramic Setter Plate:
1. Ceramic Setter Plate is typically fragile, so handle with care to avoid collision or dropping, thus preventing damage.
2. Pay attention to controlling the temperature changes inside the furnace, avoiding sudden fluctuations to prevent the furnace furniture from fracturing or stress accumulation.
3. Regularly clean the surface of the furnace furniture to ensure it remains in good working condition, thus extending its service life.
4. Users often utilize ceramic furnace furniture for processing materials requiring high purity, so they should avoid contact with other impurities or chemicals to prevent material contamination.
5. When not in use, store the furnace furniture properly to prevent exposure to moisture, heat, or other environmental factors.
6. Select suitable ceramic furnace furniture according to the specific processing techniques and requirements to ensure it meets the demands of the process.
