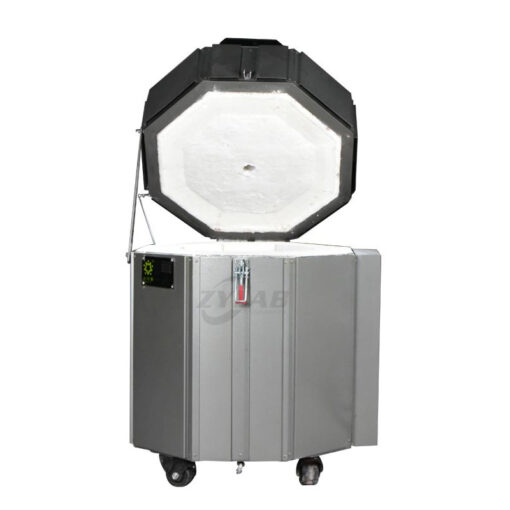

1300.C 8-sided Intelligent Top Loading Ceramic Kiln
Introduction:
This Top Loading Ceramic Kiln is a professional high-temperature electric kiln for pottery(ceramic art).
Exquisite and reasonable design will bring you a better ceramic art experience.
Main Features:
1. The top loading ceramic kiln is designed with energy-saving.
2. 32 steps of intelligent temperature control, automatically run and stop according to setting, without personnel on duty.
3. Multiple firing modes can be achieve.
4. 8 sides and bottom are surround the heating wire, the three-dimensional circulation is heated in all directions.
Detail Characteristics:
1. 0.06m3 (L38cm * W38cm * H46cm octagonal liner) has a large capacity and space. It can handle multiple works at one time, greatly improving the firing efficiency and making it more practical.

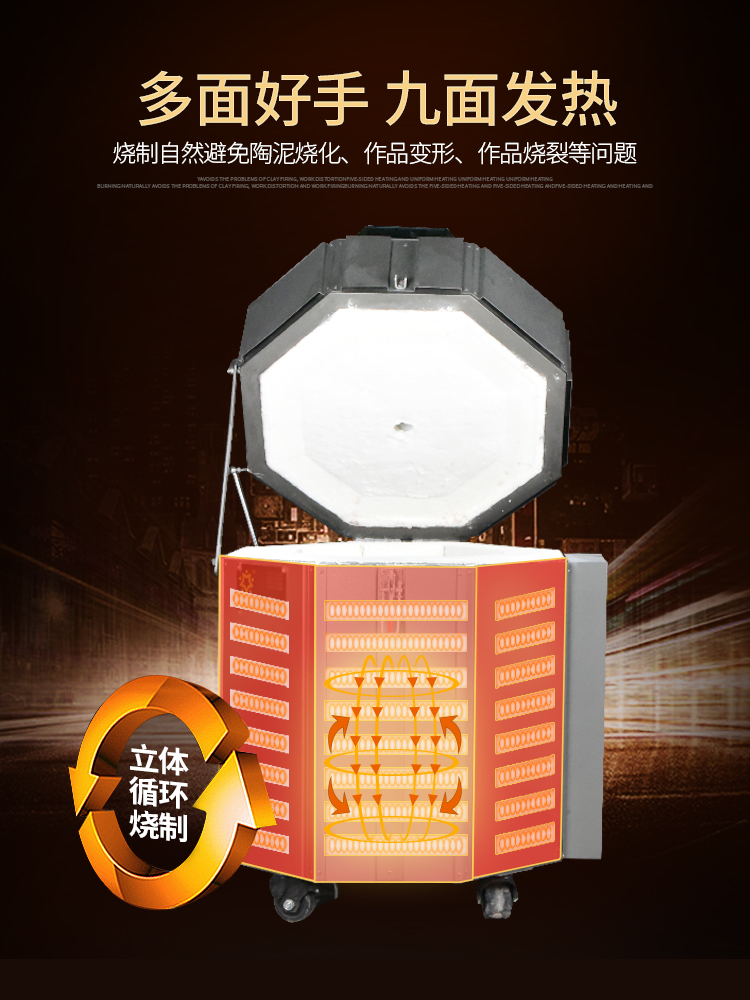

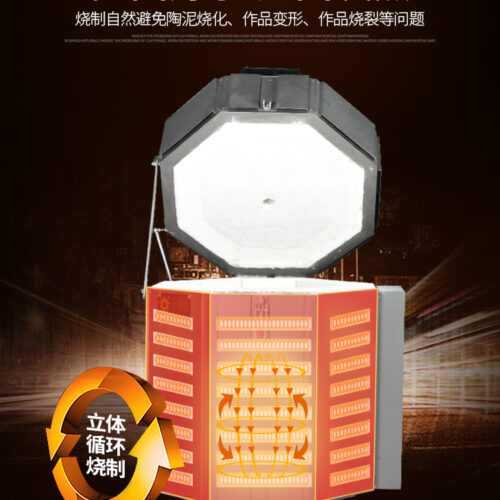

2. 8 sides and bottom are surround the heating wire, the three-dimensional circulation is heated in all directions. The firing is even and natural to avoid problems, such as clay burning, work deformation, work burning crack, and the finished product is better.

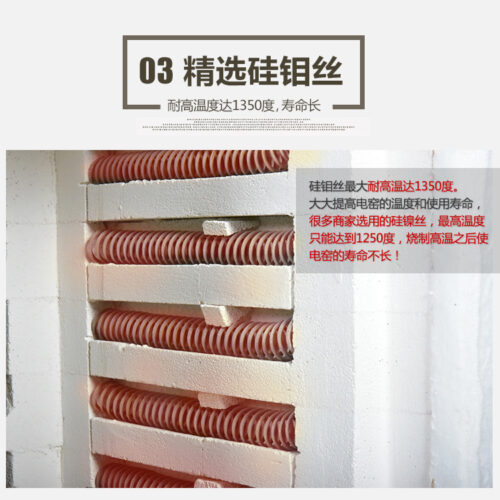

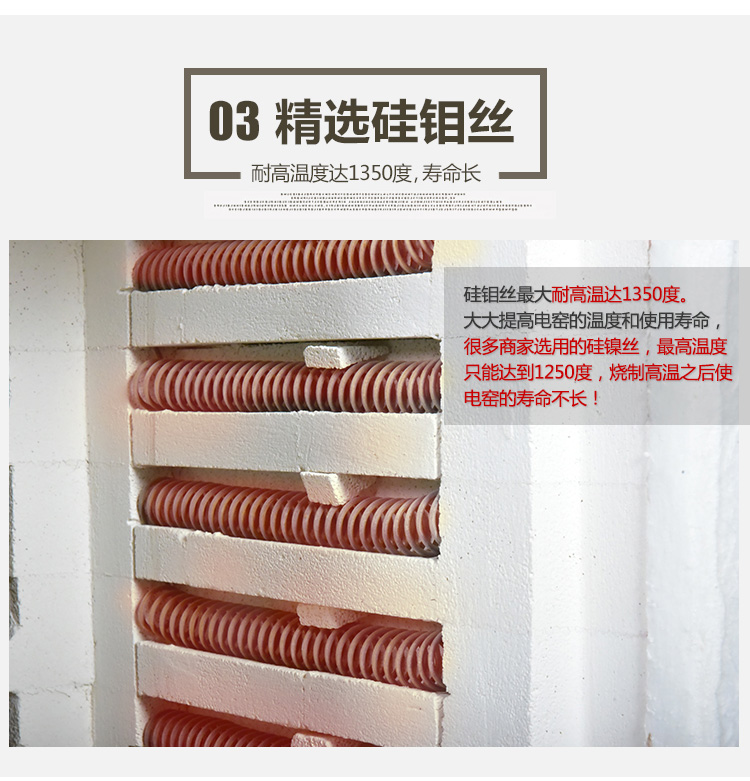

3.The maximum temperature of selected silicon molybdenum wire is 1350.C, long service life. And the temperature and service life of the electric kiln have been greatly improved. The maximum temperature of silicon nickel wire selected by many manufactures can only reach 1250.C. The life of the electric kiln will not be long after firing at high temperature!
4. Selected new lightweight mullite brick as insulation, which is not only light in weight, but also the key is that the thermal expansion and contraction at high temperature and low temperature are not easy to cause cracks.

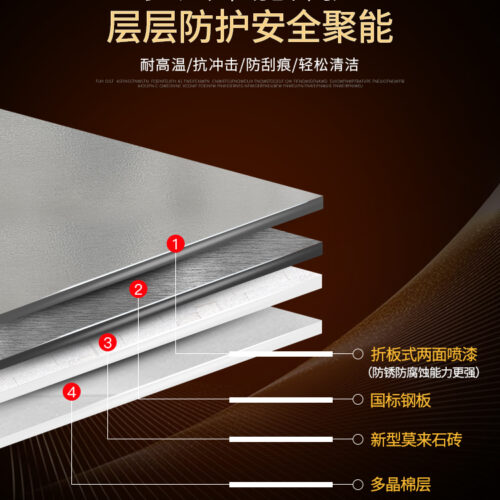

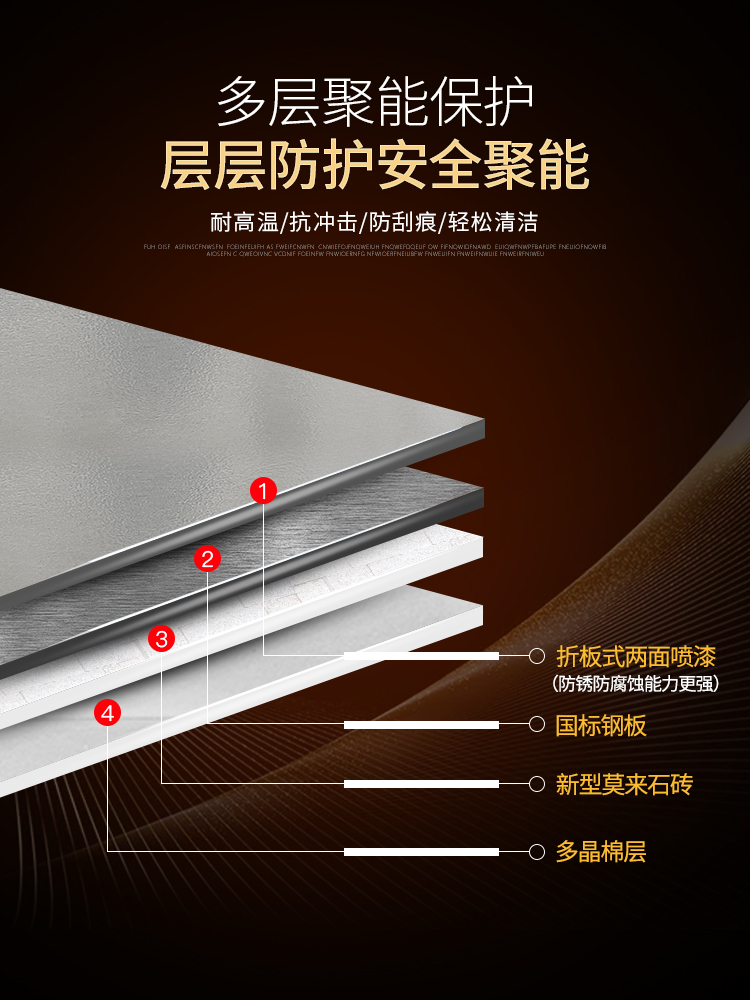

5. Five layer safety energy insulation and scald proof kiln body (silicon molybdenum wire +polycrystalline cotton layer +new mullite brick +high-quality national standard steel plate + folded type plate paint on both sides for rust prevention and corrosion resistance). External scald prevention, internal temperature locking, reduce heat emission, lower the temperature of the kiln body, and heat insulation is not hot. During firing, the temperature of the whole room does not rise more than 2. C, safe and secure. And it is easy cleaning.
6.Exquisite universal wheel, single wheel can bear 250kg, made of compression resistant material, and equipped with fixed locking rotating device, which is convenient for handling and moving.
7. The top is designed with a fire observation hole, and is equipped with a polycrystalline cotton cap, which is convenient to take and it is double insulated.
8. Intelligent APP control(optional), it can be controlled remotely and controlled by one key. No matter where you are, you can remotely control the electric kiln as long as you have a network, and the temperature can be adjusted at any time.
9. A variety of firing modes can meet various needs, whether it is on-glaze, underglaze, glaze firing (color glaze, artistic glaze, crack glaze), green body drying, ceramic firing, blue and white firing, etc.

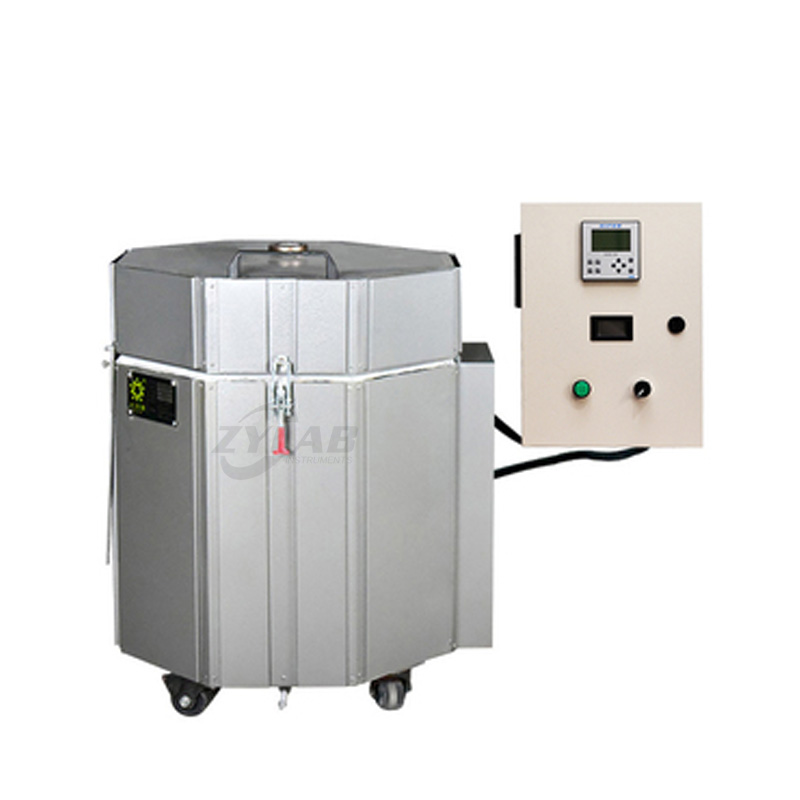

10.The optional LCD touch screen intelligent controller, is intuitive and easy to operate, can store a variety of firing curves, standard firing, pottery drying & firing, blue and white, red in glaze, color glaze, on-glaze color, under-glaze color, etc.
11. It is green and environment-friendly, low energy consumption, more energy-saving, and more cost-effective for long-term use.
12. Firing utility tools are delivered come with kiln.
* 20 pillars, * 3 SiC slab, * 1 bottle of slab coating, diameter: 6cm aluminum oxide cake * 20, * 1 pair of High temperature protective gloves.
Main Specifications:
| Model | GW-04 |
| Kiln structure | •High quality new lightweight mullite brick + high temperature polycrystalline cotton as insulation Materials. • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size
(working space) |
380(L)*380(W)*460(H)mm(0.06m3) |
| Max. working temperature | 1300.C |
| Long-term
working temperature |
Rt -1250.C |
| Intelligent
temperature controller |
•PID automatic control and auto-tune function. •32 programmable steps for precise control. •Built in protection for over-heated and broken thermal couple.•Automatically run and stop, without personnel on duty. |
| Heating element | High quality Silicon Molybdenum Wire, 9 heating sides |
| Heating rate | 0~20℃/min |
| Temperature accuracy | +/- 1 ℃ |
| Thermocouple | S type |
| Working voltage | 220V 50Hz |
| Max. Power | 6 Kw |
| Dimension | 760*640*890mm |
| Weight | 150kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
| Certificate | ISO9001 |
Turnkey solution are available:(optional)
Equipment (pottery wheel ,drying oven, glazing machines, air pump, pressing machine, etc.)
Clay
Glaze
Pigments
Tools
mold
etc.
(Details, pls contact with our expert)
Which kinds of industry can use this Ceramic Kiln?
Education(school & college)
Ceramic art
Applications:
Professional high-temperature electric kiln for pottery(ceramic art) firing.
