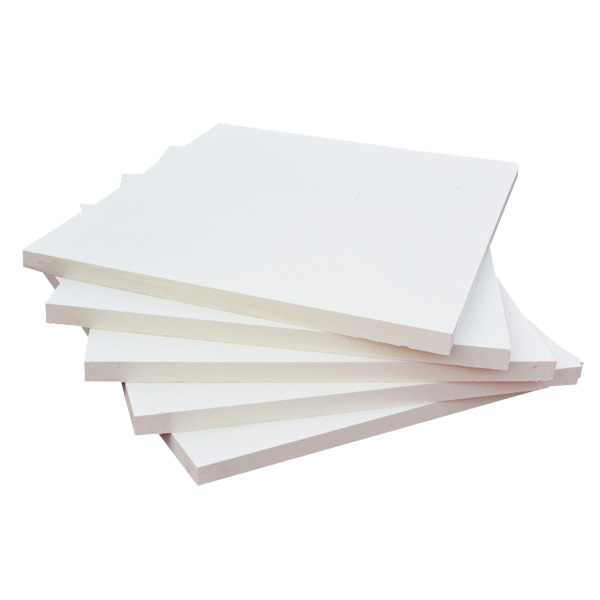

High Quality Ceramic Fiber Board
Introduction:
Ceramic Fiber Board is made of high purity alumina fibrous and alumina powder, to be formed and fired in special equipment with advanced patent process, can withstand temperature up to 1700 Celsius.
Features and Benefits:
1. Smooth surface.
2. Average thickness and density.
3. Excellent mechanism and structure strength.
4. Low thermal conductivity and less shrinkage.
5. High temperature stability, thermal shock resistance.
6. Good flame resistance and air flow erosion.
7. Super light weight.
8. Easy processing and cutting performance, accurate thickness and size, easy installation and use.
Applications of Ceramic Fiber Board:
1. The kiln wall of industrial kiln, is lined with refractory layer and insulation layer, which can be directly calcined by open flame
2.Lining of high-temperature kiln, kiln car, furnace door baffle, the temperature partition plate of kiln or furnaces.
3. Insulation and heat preservation of high-temperature and high-heat equipment
4. Heat insulation, fire prevention, sound insulation etc for aerospace and shipbuilding industry
5. High temperature thermal insulation cover plate of polycrystalline crucible.
Technical Parameters of Ceramic Fiber Board:
| Model | B-1260 | B-1400 | B-1500 | B-1600 | B-1700 | B-1800 |
| Classification temperature℃ | 1260 | 1400 | 1500 | 1600 | 1700 | 1800 |
| density (Kg/m3) | 250/300/350 | 250/300/350 | 300/350/400 | 300-600 | 350-600 | 350-600 |
| Line change
(.CX24hS) |
(1050℃x24h)<1 | (1150℃x24h)<1 | (1400℃x24h)<1 | (1500℃x6h)<1 | (1600℃x6h)<1 | (1700℃x6h)<1 |
| Compressive strength | 0.5 | 0.5 | 0.5 | 0.3 | 0.3 | 0.3 |
Physical Character:
| Density (Kg/m3) | 400 | |
| Strength to resist bending (MPa,25.C) | 0.72 | |
| Linear shrinkage rate % (1600 .Cx8hrs) | 0.13(1.7)* | |
| Expansion rate at % (600℃) | 0.28 | |
| Average modulus of linear expansion (x10-6/K) | 1.77 | |
| Thermal conductivity rate GHP[W/(mK)] | 400.C | 0.147 |
| 600.C | 0.186 | |
| 800.C | 0.236 | |
| 1000.C | 0.296 | |
| Chemical composition | AL2O3:87% SiO2:13% | |
Standard size:
900x600x（25-150）mm 1000x600x（25-150）mm
