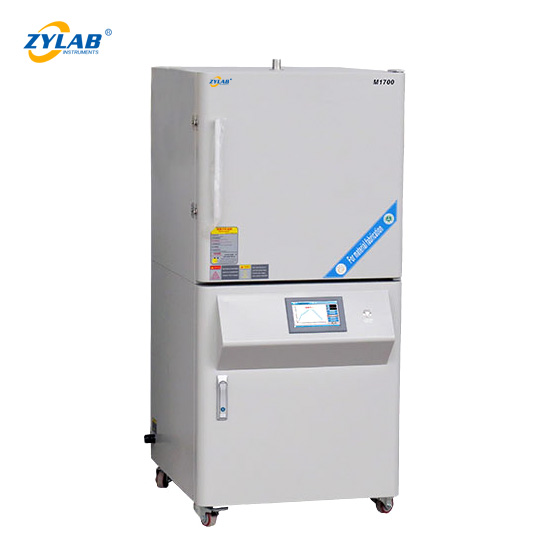

1700°C Smart Box Furnace for 3D Printing Post-Processing

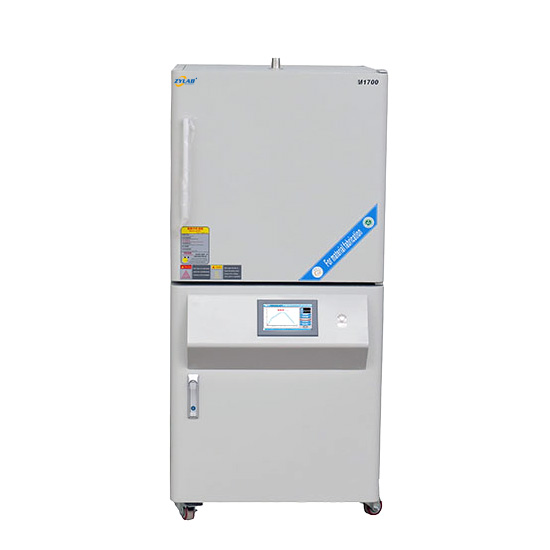

ZYLAB 1700°C Box Furnace for 3D Printing

Introduction

ZYLAB 1700°C Box Furnace for 3D Printing is an advanced heat treatment solution designed for the post-processing of metal, ceramic, and composite 3D printed parts. Engineered with both performance and usability in mind, this furnace is ideal for debinding, sintering, and annealing of components produced by metal FDM/FFF, ceramic printing, or binder jetting technologies.

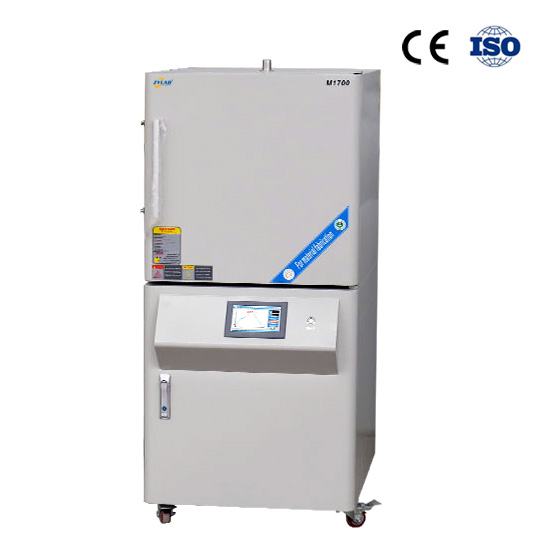

With a maximum working temperature of 1700°C, the furnace is capable of handling high-temperature sintering requirements for advanced additive manufacturing materials. Its 36-liter chamber offers generous space for batch processing, making it suitable for research and small-scale production.

Key Features Tailored for 3D Printing Applications

• High-Temperature Capability (Up to 1700°C):
  Equipped with MoSi₂ (Molybdenum Disilicide) heating elements, the furnace ensures stable performance and precise temperature control during sintering and debinding of high-performance printed parts.

• Large 36L Chamber:
  The spacious chamber supports processing of multiple parts simultaneously or large-format components, enhancing productivity in post-printing workflows.

• Vertical Standalone Design – No Additional Table Required:
  Unlike conventional box furnaces, this unit features a freestanding vertical structure, eliminating the need for a bench or support table. It saves space and simplifies installation, especially in laboratory environments.

• Ergonomic 43° Tilted Control Panel:
  The slanted front-mounted digital controller is positioned at a 43-degree viewing angle, offering excellent ergonomics and ease of operation. Users can monitor and program thermal profiles comfortably, even during extended use.

• Exhaust Chimney for Safe Debinding:
  A built-in ventilation chimney on the furnace roof allows effective evacuation of binder vapors and processing gases during thermal debinding, helping to maintain a cleaner and safer workspace.

• Efficient Operation with Low Maintenance Costs:
  The furnace is built with high-efficiency insulation materials that minimize heat loss and power consumption. The robust MoSi₂ heating elements offer long service life and easy replacement, keeping maintenance requirements low.

Applications of 1700°C Box Furnace for 3D Printing

• Debinding of metal or ceramic composite filaments (e.g. metal FDM)

• Sintering of complex parts printed via binder jetting, ceramic extrusion, or resin-based methods

• Post-curing and thermal hardening for SLA/DLP parts

• Thermal annealing and stress-relief for metal prints

Key Technical Features

1. Ultra-High Temperature Capability

• Maximum temperature: 1700°C

• Recommended working range: 800–1650°C

• Powered by high-purity MoSi₂ heating elements and equipped with Japanese-imported furnace insulation, the system ensures superior thermal stability, energy efficiency, and chemical resistance—ideal for sintering high-performance metal and ceramic 3D printed parts.

2. Smart 7-Inch Touchscreen Controller

• Full-color intuitive interface for easy programming and monitoring

• 30 programmable segments for automatic temperature control

• Supports temperature curve storage, eliminating repetitive programming for different post-processing cycles

• Real-time display of heating status, making the thermal process easy to manage at a glance

3. Fast Heating & Energy Saving

• High-efficiency ceramic fiber insulation enables rapid heating and reduced power consumption

• Furnace design optimizes thermal uniformity and chamber efficiency for consistent results across batches

4. User-Centric Ergonomic Design

• Freestanding vertical structure: No additional bench required

• Control panel angled at 43° for a comfortable viewing and operation experience

• Double-layer steel housing with fan cooling, keeping the surface temperature below 50°C for safe handling

• Mounted on lockable caster wheels, making it easy to move or reposition as needed

5. Safe and Clean Operation

• Integrated exhaust chimney on the furnace top for effective vapor and gas removal during debinding

• Internal components engineered to minimize contamination, extending the usable life of both furnace and workpieces

Optional Add-ons

• Customizable chamber size or layout to maximize workspace efficiency

• Vacuum or inert gas configuration for oxygen-sensitive materials

• Exhaust gas filtration system for volatile compounds

• alumina trays

Technical Specifications of Box Furnace for 3D Printing

Model	M1700-30IT
Furnace structure	1800 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C.
Chamber size (working space)	300*300*400mm(36L)
Max. temperature	1700 ℃(<1 hours)
Working temperature	800 -1650 ℃
Touch Screen Temperature controller		Intelligent PID automatic control. 30 programmable segments for precise control of heating rate, cooling rate and dwell time. Build in auto-tune function with overheating and broken thermocouple broken protection, over temperature protection and alarm allows for operation without attendant. Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. Can store sintering programs to avoid the trouble caused by repeated settings of different processes.
Heating rate	0-20 ℃ /min
Thermocouple	B type
Temperature accuracy	+/- 1 ℃
Heating element		M1800 high purity MoSi2 heating element
Working voltage	AC 380V, 50 Hz (or as requirement)
Max. Power	9 Kw
Dimension	640(W)*1530(H)*900(D)mm
Quantity / Net weight	1set / 240kgs
Warranty	18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support.

FAQ – 1700°C Box Furnace for 3D Printing

Q: What types of 3D printing materials is this furnace suitable for?
A: This furnace is ideal for metal and ceramic 3D printed components. It supports post-processing tasks such as debinding, sintering, annealing, and thermal curing of parts produced via FDM with metal/ceramic filaments, binder jetting, ceramic extrusion, and resin printing (e.g. SLA/DLP).

Q: What is the recommended working temperature range?
A: While the maximum temperature is 1700°C, the recommended working range is 800°C to 1650°C, depending on the material and process requirements. The system maintains precise and uniform heating throughout the process.

Q: Does the furnace remove binder vapors during debinding?
A: Absolutely. The furnace features a top-mounted exhaust chimney that allows safe removal of vapors and gases generated during binder burnout. For sensitive environments, optional exhaust filtration systems are available.

Q: Can this furnace operate under vacuum or inert atmosphere?
A: The standard model operates in ambient air, but optional configurations are available for vacuum or inert gas (N₂ or Ar) processing. Please contact us for customization details.

Q: Is chamber size customizable?
A: Yes. While the standard model offers a 36L chamber, we provide custom sizes and designs based on your processing needs. Contact us for tailored solutions.
