ZYLAB Boron Nitride（BN ）Crucible
Product Details:
The ZYLAB Boron Nitride Crucible is a high-performance ceramic container designed for high-temperature and corrosive environments.
Made from high purity boron nitride (BN) with a purity greater than 99%, this crucible offers exceptional thermal stability, excellent chemical resistance, and superior non-wetting properties. It is an ideal choice for melting, evaporation, and material processing under vacuum or inert gas atmospheres.
Material: High Purity Boron Nitride (BN)
Purity: ≥99%
Shape: Round / Square, With or Without Lid
High Temperature Resistance: Up to 2000°C in Vacuum or Inert Gas Atmosphere
For more information, custom orders, or technical support, please contact us.
Key Features
- High Purity Material: 99% Boron Nitride ensures excellent thermal and chemical stability.
- High-Temperature Resistance: Operates up to 2000°C in vacuum or inert environments.
- Excellent Thermal Shock Resistance: Low thermal expansion minimizes cracking during rapid heating and cooling cycles.
- Non-Wetting Surface: Ideal for working with molten metals like aluminum, magnesium, and zinc—materials do not stick to the crucible.
- Good Electrical Insulation: Suitable for applications requiring high thermal conductivity and electrical insulation.
- Corrosion Resistance: Resists most molten metals, acids, alkalis, and organic solvents.
- Custom Sizes and Shapes: Available in round or square shapes, with optional lids. Customization for different dimensions is supported.
Applications
- Melting and casting of reactive and non-reactive metals (Aluminum, Magnesium, Zinc, etc.)
- High-temperature processing in semiconductor and electronic industries
- Vacuum and inert gas sintering
- Crystal growth experiments
- Rare earth metal refining
- Laboratory research and material testing

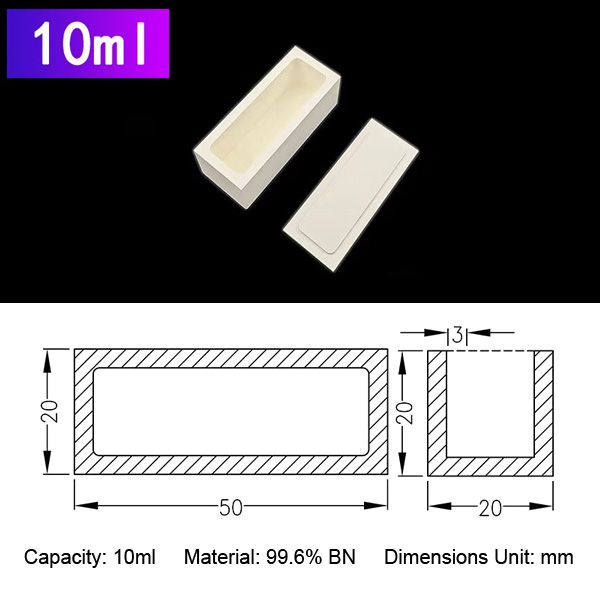

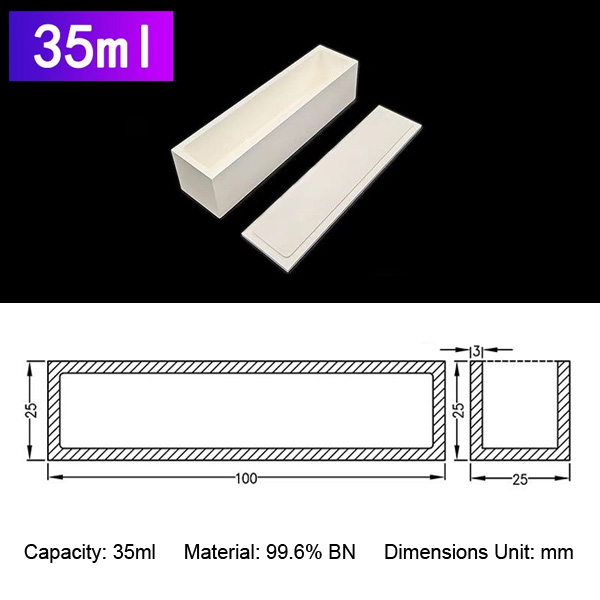

Specifications for Square Boron Nitride Crucible
| Square Boron Nitride Crucible (UoM：mm) | |||
| 50×15×15 | 50×20×20 | 45×22×15 | 60×30×15 |
| 60×30×20 | 100×40×20 | 120×20×20 | 100×50×30 |
Specifications for Round Boron Nitride Crucible

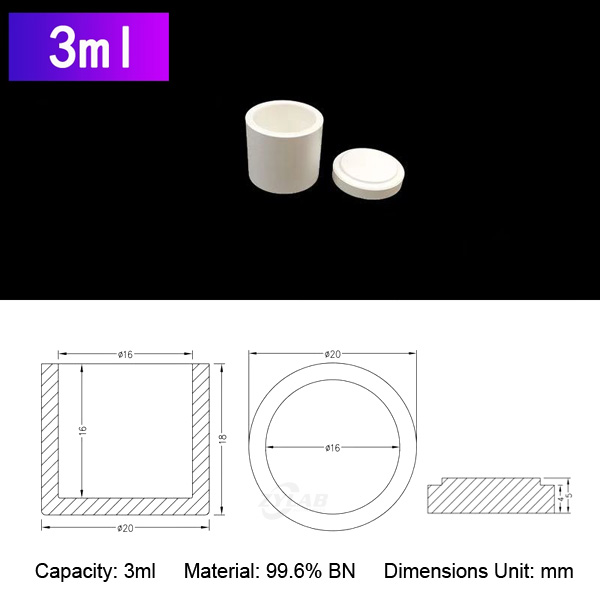

| Round Boron Nitride Crucible (UoM：mm) | |||
| 0.5ml (φ9×19) | 1.8ml (φ13×25) | 2ml (φ16×20) | 3ml (φ13×40) |
| 3ml (φ20×20) | 5ml (φ24×24) | 5ml (φ36×13) | 5ml (φ15×50) |
| 6ml (φ16×50) | 10ml (φ30×25) | 10ml (φ28×30) | 20ml (φ40×25) |
| 20ml (φ32×32) | 24ml (φ36×37) | 50ml (φ47×45) | 100ml (φ58×58) |
If you need more detailed information, please contact us immediately. We offer free quotes on all products!
