High-Efficiency Lab Bench-top Sieve Shaker (Dia 200/300/400mm) for Accurate Material Separation
Introduction
Features and Benefits of Bench-top Sieve Shaker
- High efficiency, sophisticated and durable design, suitable for sieving any powder or liquid.
- Compact size, space-saving, and easy to move.

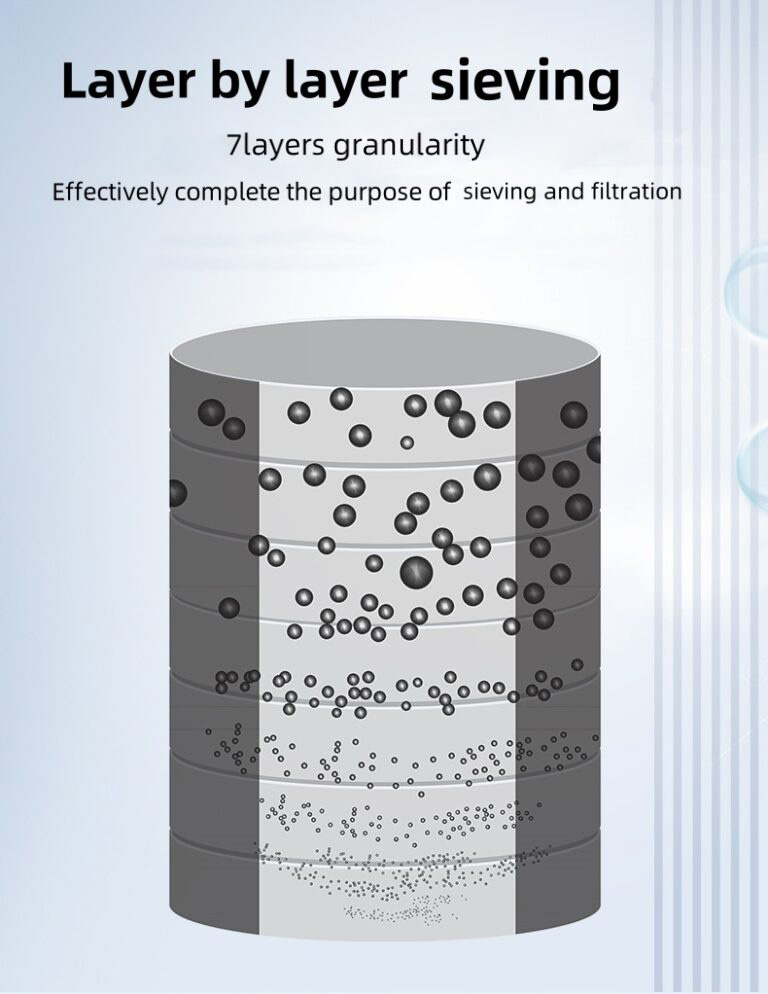

- The sieve machine can accommodate up to eight test sieves (including the bottom sieve), allowing precise separation of a granular material into 2 to 7 particle segments at the same time.
- Automatic shut-off timer.
- Ensures experiment repeatability.
- Fully functional and easy to operate.
- Low noise and lightweight.
- Platform operation, no need for fixation.
- Optional ultrasonic feature, suitable for ultrafine powder solutions.
- Sieve mesh material options include stainless steel and nylon.
Technical Parameters of Bench-top Sieve Shaker
Model | ZDS-200 |
Sieve diameter | 200mm |
Measuring range | 0.025~3mm |
Motor power | 0.125kw |
Sound | Less than50 dB |
Amplitude | 0~3mm |
Speed | 1420rpm |
Overall dimension | 400*300*300mm |
Net Weight | 30Kg |
Power suppy | 220V 50HZ |
Other Optional Models
Model | ZDS-200 | ZDS-300 | ZDS-400 | ZDS-600 |
Sieve Diameter | 200mm | 300mm | 400mm | 600mm |
Number of Sieve Layers | 7 Layers | 3 Layers | ||
Sieve Material | Nylon/Metal | Metal | ||
Sieve Selection Range | 5-1000mesh | |||
Power | 0.125kw | 0.125kw | 0.25kw | 0.37kw |
Power Supply | 220V 50HZ | 380V 50HZ |
Applications
Sieve shakers are versatile laboratory tools used across various industries for particle size analysis, grading, and separation. Here are some common applications:
-
Pharmaceutical Industry:
- Powder Screening: To ensure consistent particle size distribution in drug formulations, which affects drug release and absorption.
- Quality Control: Checking the granularity of excipients and active pharmaceutical ingredients (APIs).
-
Chemical Industry:
- Powder and Granule Grading: Used to grade chemicals into different particle sizes for specific applications, ensuring uniformity in product batches.
- Catalyst Screening: To ensure catalysts have the correct particle size for optimal reaction rates.
-
Food Industry:
- Flour and Powder Screening: To ensure uniform particle size in products like flour, spices, and baking powders.
- Quality Assurance: Ensuring consistency in products like sugar, salt, and other granulated food products.
-
Construction Industry:
- Aggregate Testing: Grading sand, gravel, and crushed stone for concrete and asphalt production.
- Cement and Lime: To ensure proper particle size distribution for better mixing and bonding.
-
Mining and Metallurgy:
- Ore and Mineral Screening: Used to classify ores, minerals, and coal according to particle size.
- Quality Control: Ensuring the consistency of raw materials for processing.
-
Environmental Science:
- Soil Analysis: Determining soil particle size distribution for agricultural and environmental studies.
- Waste Management: Grading waste materials for recycling and processing.
-
Cosmetics Industry:
- Powder Grading: To achieve consistent particle size in products like makeup powders and creams.
- Quality Control: Ensuring uniformity in raw materials and final products.
-
Ceramics and Glass:
- Material Sizing: For precise sizing of raw materials used in ceramics and glass production.
- Consistency Testing: Ensuring the homogeneity of particle sizes for better product quality.
-
Nanotechnology:
- Particle Size Analysis: For research and development of nanoparticles, ensuring precise size distribution in innovative materials.
-
Academic and Research Laboratories:
- Research and Development: Used in various experiments to analyze particle sizes and distributions in different materials.
- Teaching Tool: Helps students understand the principles of particle size analysis and material separation.
These applications highlight the importance of sieve shakers in ensuring product quality, consistency, and compliance with industry standards.
