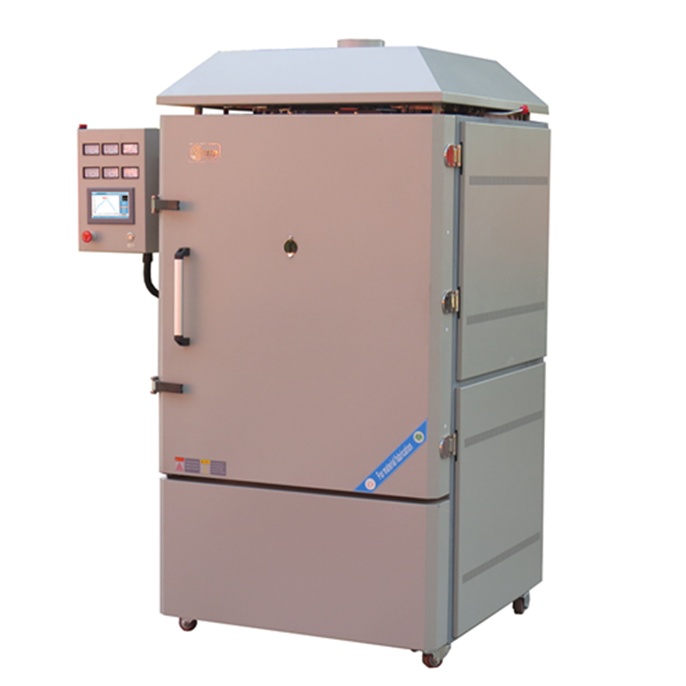

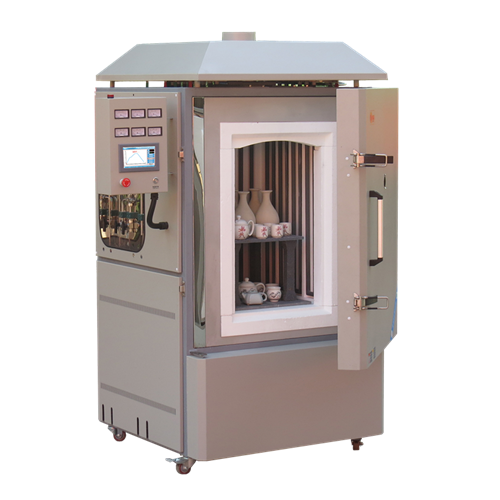

1500.C/1700.C Atmosphere Ceramic Sintering Furnace
Introduction:
This atmosphere ceramic sintering furnace has ample room, available for both laboratory sintering studies and industrial production.
It’s mainly used in electronic components (resistors, capacitors), art ceramics, structural ceramics, textile ceramics, electronic ceramic filters, thick film circuits, magnetic materials, powder metallurgy, electronic powder, rare earth chemicals, ceramic substrates, high aluminum ceramics and its metallization, contact materials, hard alloy materials, tungsten, molybdenum and other materials industry sintering preparation.
Main Features:
1. Max. Temperature 1500C, continue working temperature RT-1450°C.
2. 30 segments programmable and auto control.
3. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
4. By using special lining import from Japan and heating elements made of pure type, protected against chemical contamination at the best.
5. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
6. There are 2 way atmosphere control system, can work with inert-atmosphere,such as Nitrogen, Argon….etc.

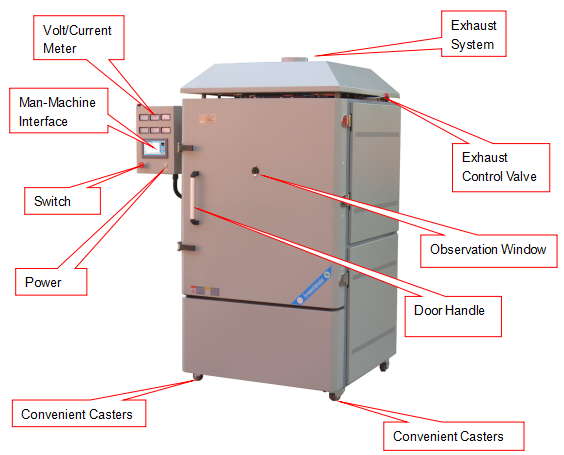

7. With the exhaust device(an exhaust chimney in the top of the furnace), effectively remove volatiles generated during sintering.
8. Beautiful and novel design, practicable.
Main Specifications:
| Model | M1500-50IT |
| Furnace Structure | •1600 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size
(working space) |
500(W)x800(H)x500(D)mm |
| Max Working Temperature | 1500°C |
| Continue
Working Temperature |
RT~ 1450°C |

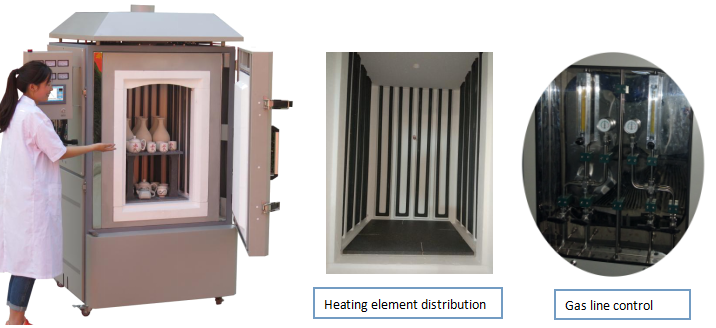

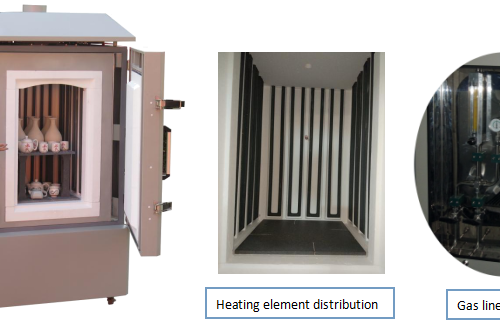

| Heating Elements | High-purity sic heating element with excellent acid and corrosion resistance, 3 sides heating |
| Intelligent Touch Screen
Temperature controller |
•PID automatic control and auto-tune function. •30 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple. •Touch screen man-machine & English graphics interface, more intuitive and convenient operation.•.Can store 30 sintering programs, and has the function of USB interface derived data. |
| Working Voltage | 380V 50HZ(or as requirement) |
| Rated Power | 25kw |
| Heating Rate | 0~15℃/min |
| Temperature Accuracy | ±1℃ |
| Thermal Couple | S type |
| Temperature Uniform | ±3℃ |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
| Certificate | ISO |
Standard Size and Delivery Time:
| Model | Max. temperature | Chamber Size(W*H*D) | Delivery Time |
| M1500-50IT | 1500 degree C | 500*800*500mm | 25 days |
| M1700-50IT | 1700 degree C | 500*800*500mm | 25 days |
| M1500-80IT | 1500 degree C | 800*1000*800mm | 35 days |
| M1700-80IT | 1700 degree C | 800*1000*800mm | 35days |
Which kinds of industry can use this Atmosphere Ceramic Sintering Furnace?
Education, Research, Ceramic, etc.
Applications:
Mainly used in electronic components (resistors, capacitors), art ceramics, structural ceramics, textile ceramics, electronic ceramic filters, thick film circuits, magnetic materials, powder metallurgy, electronic powder, rare earth chemicals, ceramic substrates, high aluminum ceramics and its metallization, contact materials, hard alloy materials, tungsten, molybdenum and other materials industry sintering preparation.
