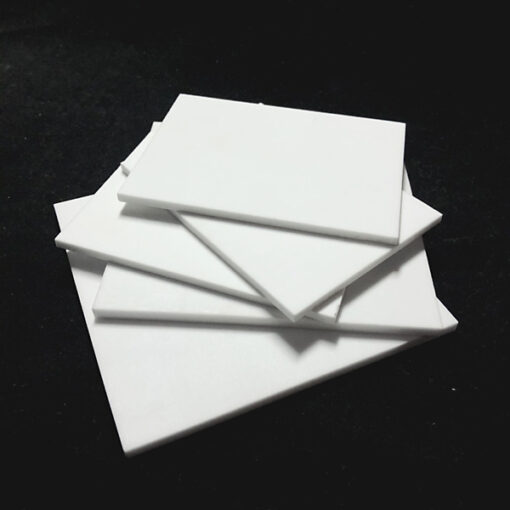

95% Alumina Ceramic Plate
Introduction:
The 95% alumina ceramic plate is a high-performance material widely used in various industrial and laboratory applications. Made from alumina (Al₂O₃) with a purity of 95%, this ceramic plate offers an excellent combination of mechanical strength, thermal stability, and wear resistance.
Key Features and Benefits:
High Mechanical Strength:
The 95% alumina ceramic plate has exceptional mechanical strength, making it ideal for applications that require durability and resistance to mechanical stress and wear.
Thermal Stability:
With a high melting point and excellent thermal stability, the alumina ceramic plate can withstand extreme temperatures without degrading, making it suitable for high-temperature environments.
Wear Resistance:
The alumina ceramic plate is highly resistant to wear and abrasion, ensuring long-lasting performance in demanding conditions.
Chemical Resistance:
This ceramic material is chemically inert, providing resistance to corrosion and chemical attack from most acids, alkalis, and organic solvents.
Electrical Insulation:
Alumina ceramic plates have excellent electrical insulating properties, making them suitable for use in electronic and electrical applications.
Low Thermal Expansion:
The low thermal expansion coefficient of the alumina ceramic plate ensures dimensional stability across a wide temperature range.
Applications:
Laboratory Equipment:
Ideal for use in various laboratory settings, including as substrates for experiments and as components in high-temperature furnaces.
Industrial Components:
Used in manufacturing processes that require materials with high wear and thermal resistance, such as seals, bearings, and insulators.
Electronics:
Utilized in electronic devices and systems for its insulating properties and thermal stability.
Medical Devices:
Applied in medical equipment that demands biocompatibility and resistance to sterilization processes.
Specifications:
Material: 95% Alumina (Al₂O₃)
Purity: 95%
Density: Approximately 3.7 g/cm³
Hardness: > 1500 HV
Maximum Operating Temperature: 1600°C
Our Offered Specifications for 99% Alumina Ceramic Plate:
| 95% Alumina Ceramic Plate Specification Table (UoM：mm) | |||
| 10×10×1 | 100×100×4 | 100×100×10 | 115×70×10 |
| 130×32×10 | 133×133×6 | 135×30×10 | 135×30×10 |
| 135×135×5 | 140×85×10 | 150×100×10 | 150×140×8 |
| 150×150×6 | 150×150×8 | 150×150×10 | 160×160×8 |
| 250×250×10 | φ20×2 | φ40×3 | φ45×4 |
| φ70×5 | φ100×5 | φ105×7 | |
We provide free quotes for alumina plates in all the above specifications.
Please contact us immediately to get a detailed quote!
Related Furnaces:

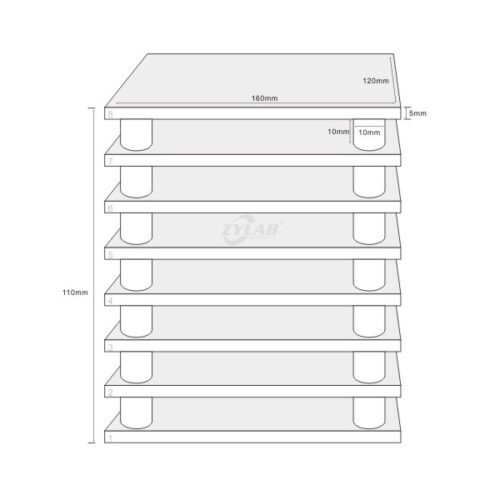

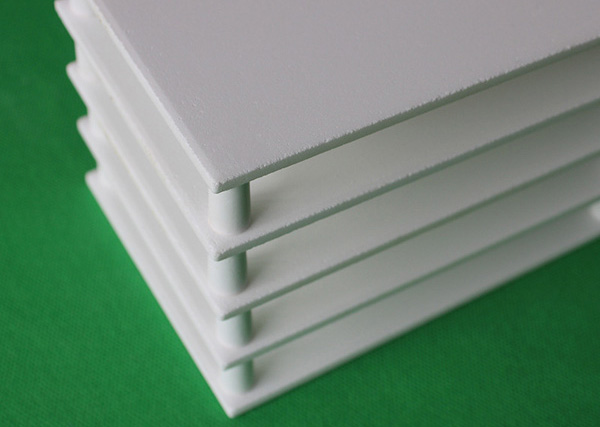

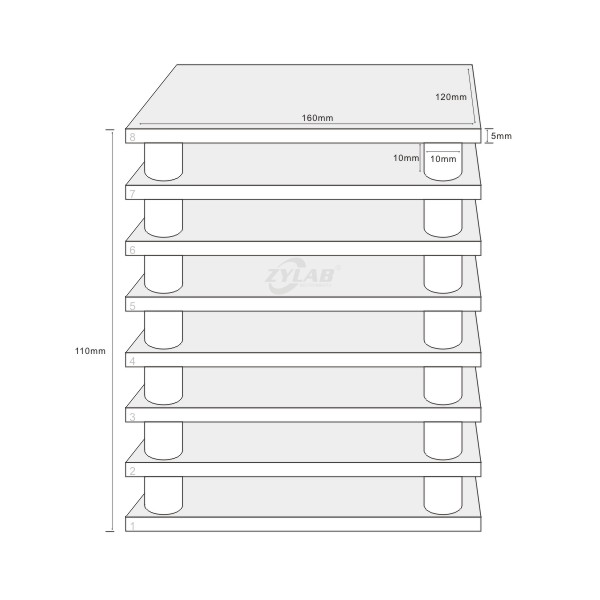

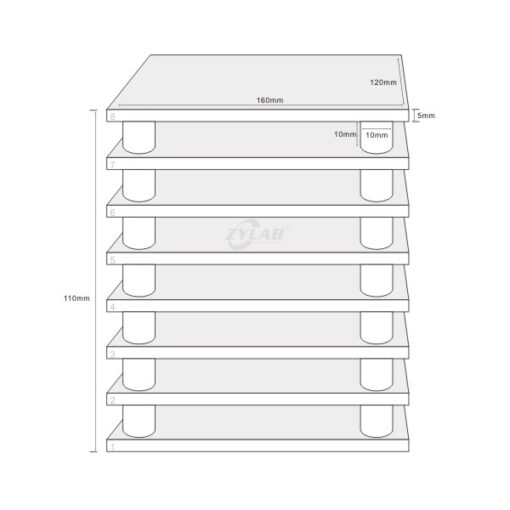

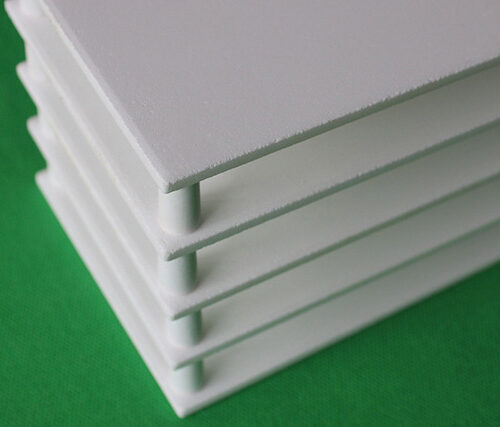

Related Furnace Furniture:
