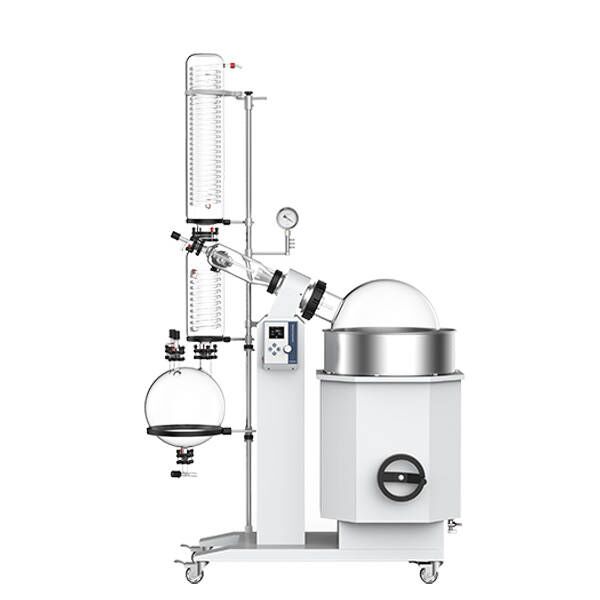

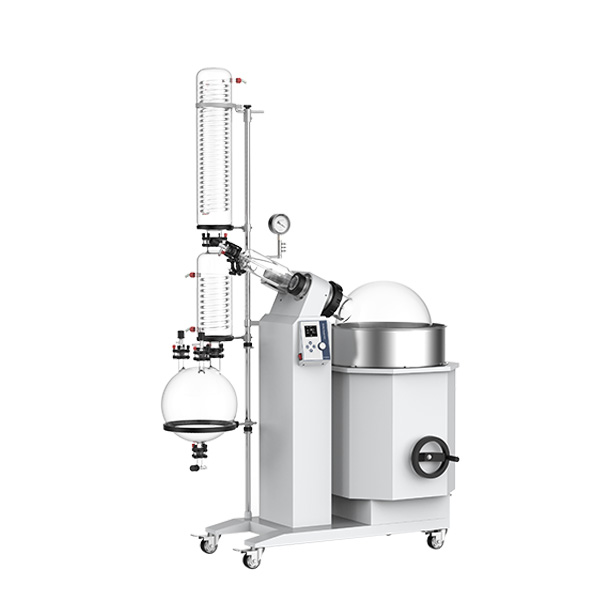

R-1050 50L Rotary Evaporator
Introduction:
R-1050 50L Rotary Evaporator is designed with large capacity and large opening of evaporating flask, give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, solvent evaporates more efficiently under vacuum condition.
Mainly used for concentration, crystallization, drying, separation, and solvent recover in various fields such as, pharmaceutical, chemical, and biotechnology industries.
Highlight:

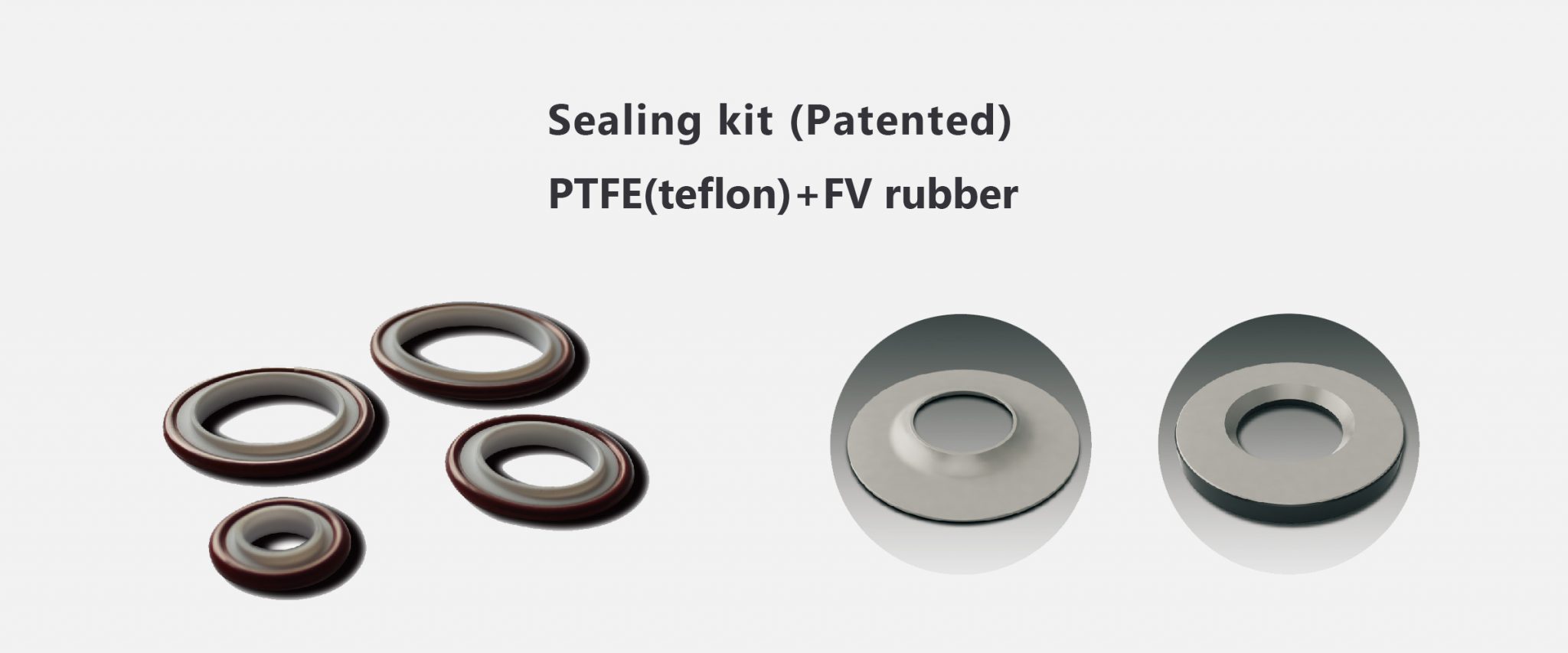

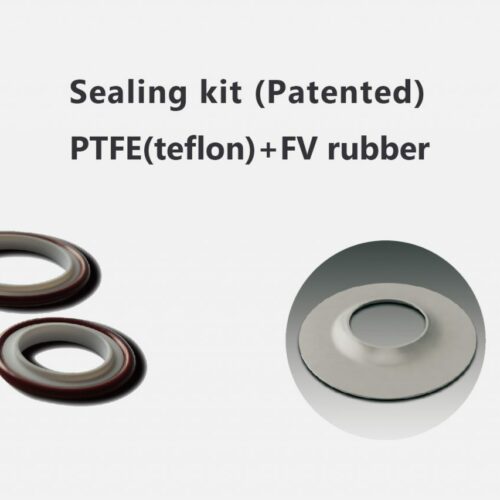

- Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.

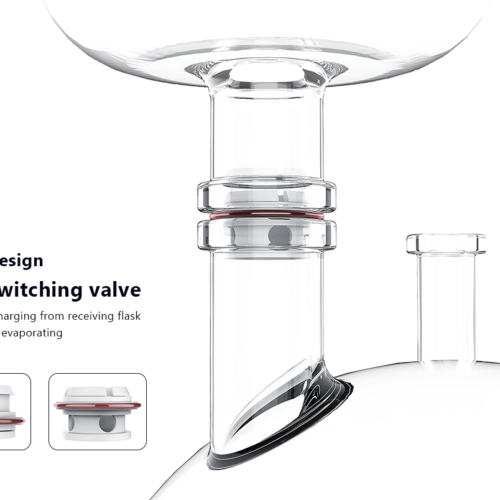

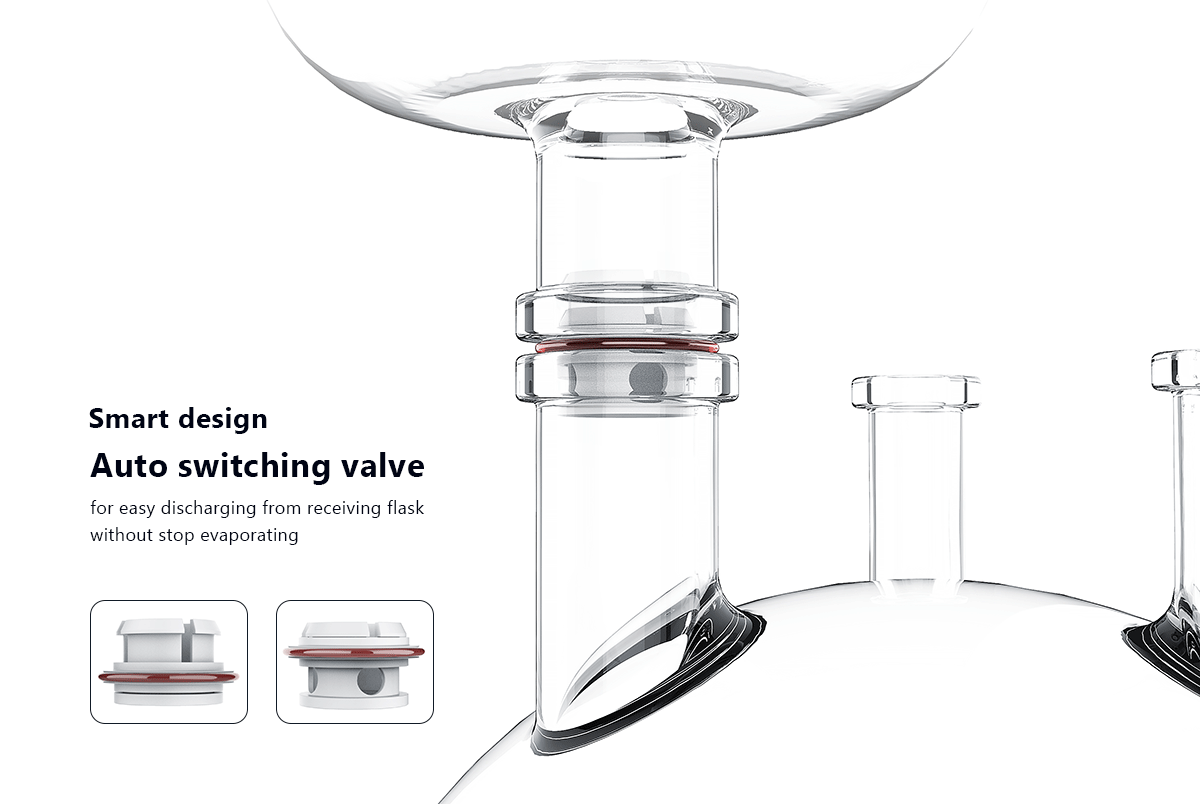

- Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation.
- Teflon discharge valve is corrosion resistant and contamination free.
- Water bath jacket protecting operator from scalding by hot liquid.
Technical Parameters:
| Model | R-1050/R-1050CE |
| Evaporating flask | 50L flange opening, Φ125mm |
| Receiving flask | 20L |
| Speed-regulation | Continuously variable |
| Power Supply | 3～ 380V,50Hz or 220V, 60Hz |
| Overall Power | 6.3KW |
| Rotation Speed | 20-110rpm |
| Power of Motor | 250W |
| Condenser | Vertical type, Main+auxiliary triple-circulating cold traps |
| Condensation area | 1.15m2(Main), 0.4m2(Auxiliary) |
| Bath Material | Stainless steel 304, Φ550*320mm |
| Temperature Range | 95℃ Max |
| Temperature Display | LCD |
| Vacuum Leakage | ≤2kPa/h |
| Evaporating Speed | 9.0L/h(water) 24.5L/h(ethanol) |
| Lifting Function | Motorized+Manual lift |
| Dimensions | 1345W*770D*2230H mm |
| Net weight | 140kg |
Optional:

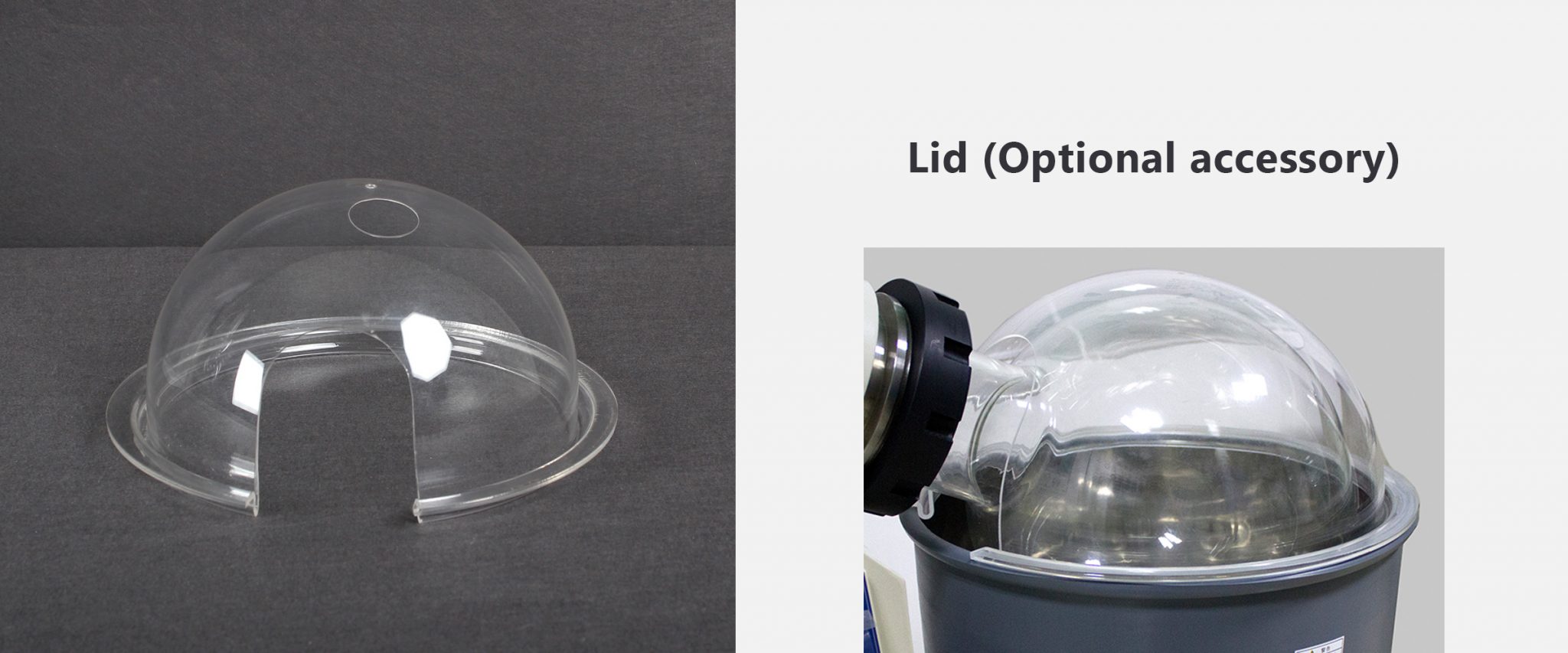

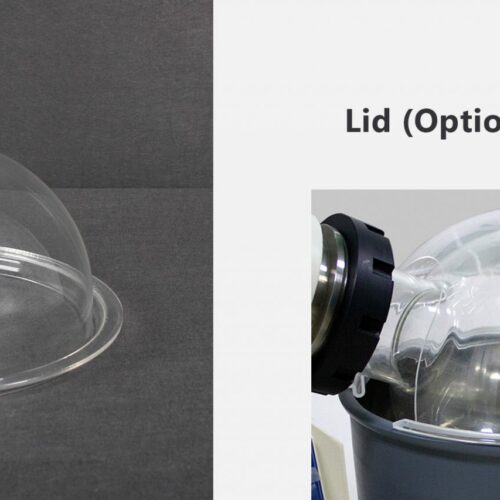

| Splash Protection | Bath pot supporting transparent cover |
Turnkey Solution:

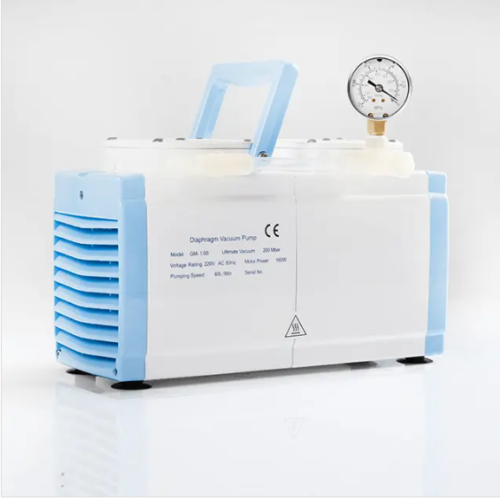

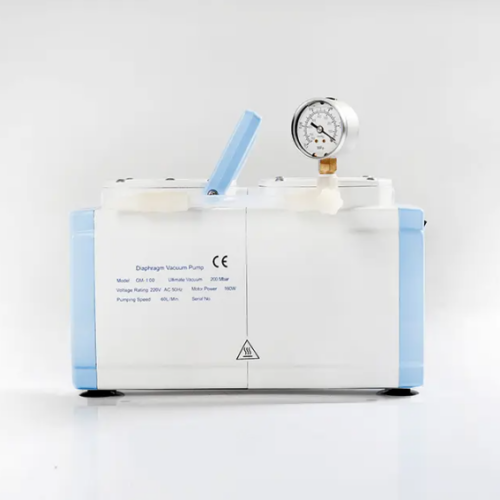

Vacuum Pump
Temperature Control Unit
Which kinds of industry can use this 50L Rotary Evaporator?
Pharmaceutical, food, petroleum industries, and chemical laboratories, etc.
Applications:
Distillation,
Purification (purify samples),
Concentration,
Crystallization,
Extraction
Drying,
Separation(liquid separation),
Solvent recovery,
Indistillation of volatile solvents,
Chemical synthesis,
Prepare samples for analysis.
