Top Quality GR-50CE 50L Jacketed Glass Reactor
Introduction:
GR-50CE 50L jacketed glass reactor is trusted by top research labs and universities.
Add the cutting groove to the stirring paddle to avoid the pollution of cutting material.
Add the corrugated hoses to avoid excessive stress.
Connect the temperature sensor base with a quick-connect flange.
You can use this 50L jacketed glass reactor to complete the synthesis reaction of the materials.
Features and Advantage:
- High borosilicate glass 3.3 has good physical and chemical properties.
- Wide working temperature range: -80~200℃.
- Working pressure: -0.1 MPa to 0.0 MPa.
- Stainless steel hose connected to the jacket inlet/outlet.
- PTFE discharge valve.
- Stainless steel frame, corrosion resistant.
- SUS304 material tray (Optional).
- DC brushless motor, stepless speed regulation, LED digital display of torque, temperature, time and rotation speed.
- RS485 communication interface on the control box can transfer the data to PC.
- Patented stirring shaft has high sealing efficient and long lift-span.
- PT100 temperature sensor has high control accuracy, SUS304 coated with PTFE tube, double anti-corrosion.
- PTFE stirring paddle, SUS304 coated with PTFE.
Technical Parameters:
| Model | GR-50CE |
| Vessel capacity | 50 L |
| Jecket capacity | 13 L |
| Pressure in the vessel | -0.1-0.0MPa(Ordinary pressure or negative pressure) |
| Pressure in the jacket | ≤0.03MPa |
| Working temperature range | -80-200℃ |
| Condenser exchanging area | 0.429 m² |
| Vessel inlet/outlet | DN15 |
| Constant-pressure funnel volume | 2.0L |
| Display window | LED |
| Stirring speed | 20-500rpm |
| Stirring speed display accuracy | ±1rpm |
| Speed regulation accuracy | Speed<=300r/min：±0.7% |
| Discharge Port | Speed>300r/min：±1% |
| Max. torque | 5.4N.m |
| Motor power | 370W |
| Power supply | 100-240V～,50/60Hz |
| Ambient temperature | 5-35℃ |
| Relative humidity | <=70% |
| Dimensions(mm) | 900W×690D×2100H |
| Net weight | 82kgs |
| Warranty | 12 months, lifetime support |
| Certificate | CE, ISO9001 |

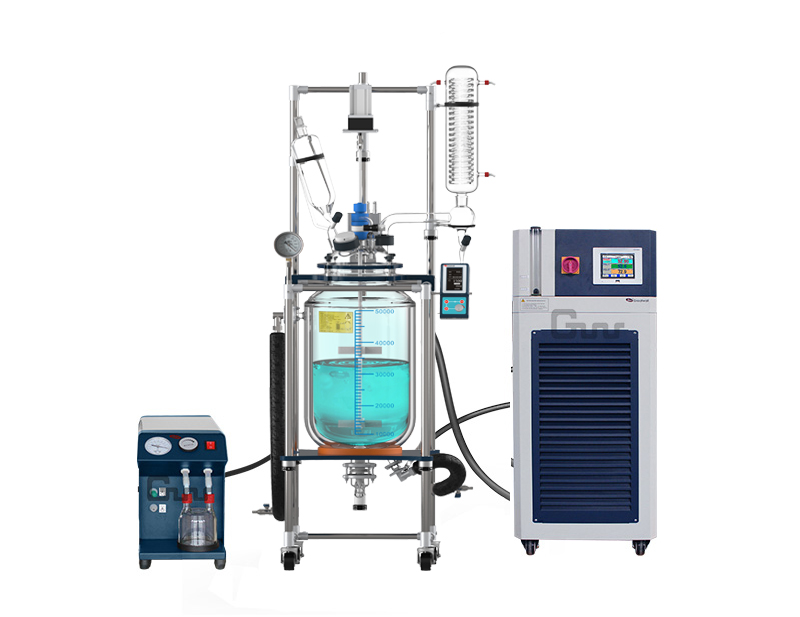

Optional Turnkey Solution:
Vacuum Pump
Temperature Control Unit
Which kinds of industry use this 50L Jacketed Glass Reactor?
Used in university laboratories for heating/cooling reaction materials, experimental synthesis, catalysis, or other chemical reactions under inert gas conditions.
Used in energy for fuel cells, catalytic reactions, filtration and washing, etc.
In biomedicine, it is used for chemical synthesis, reflux, distillation, concentration, crystallization, extraction, etc., and can be used in conjunction with a constant temperature circulator.
Used in cosmetics for material dispersion, emulsification, homogenization, mixing, extraction, etc.
Used for solvent recovery, single component distillation, multi-component distillation, distillation purification, or chemical synthesis in petrochemical industry.
Applications of 50L Jacketed Glass Reactor
Jacketed glass reactors have a wide range of applications in chemistry and research.
They are used for chemical synthesis, crystallization, distillation, extraction, mixing, homogenization, photochemical reactions, solvothermal reactions, material synthesis, pharmaceutical research, and academic studies. They are also used for scale-up studies before moving to larger industrial-scale reactors.
Benefits of 50L Jacketed Glass Reactor:
1. Controlled reaction conditions.
2. Visual observation of reactions.
3. Safety due to the double-wall construction.
4. Versatility for various applications.
5. Scalability for process development.
6. Easy cleaning and maintenance.
7. Efficient heat transfer.
8. Corrosion resistance.
9. Cost-effectiveness.
10. Support for research and development efforts.
