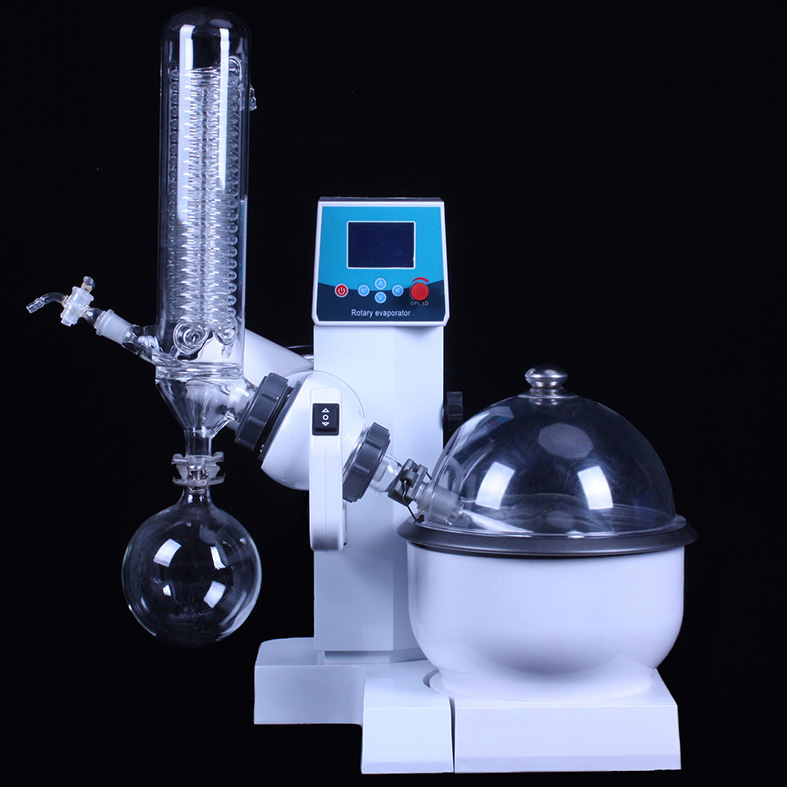

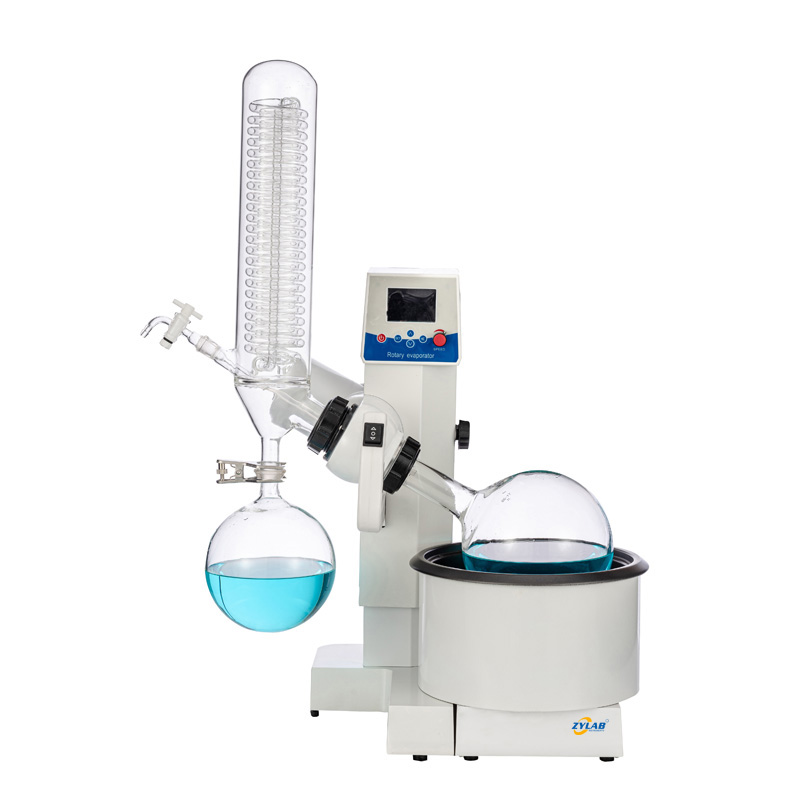

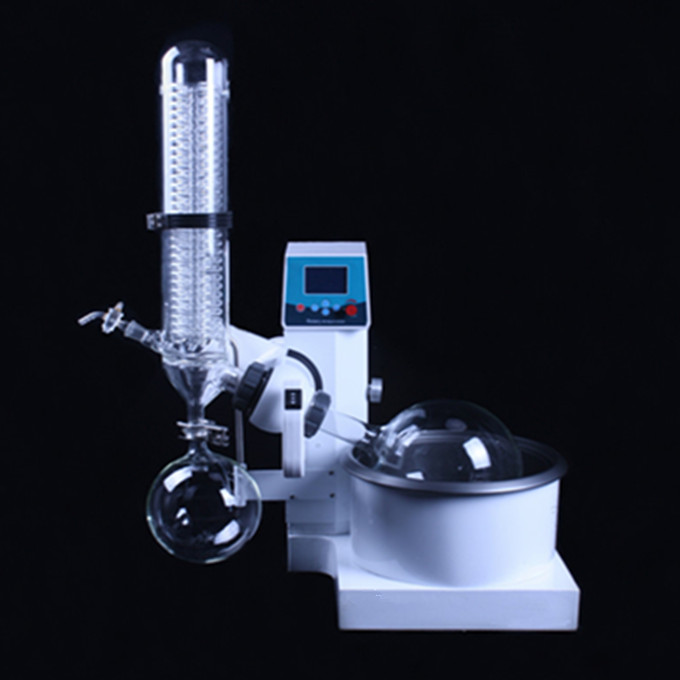

Auto-lifting 3L Rotary Evaporator
Introduction:
RE-3000 3L rotary evaporator is an up-dated intelligentized product developed based on the technique of Switzerland Buchi company, adopt high speed performance single Chip Microcomputer controlling sector; special controlling process for different controlled object, elegent appearance and stable, reserved connects for special customer’s upgrade requirement.
Mainly used for concentration, crystallization, drying, separation, and solvent recover in various fields such as, pharmaceutical, chemical, and biotechnology industries.
Main Features and Benefits:
1. Main body bracket : aluminum alloy, with reasonable structure and exquisite materials.
2. Sealing system adopts Teflon + imported fluororubber combination bidirectional sealing, which can maintain high vacuum.
3. All glass parts are made of high borosilicate3.3 (GG-17), which is resistant to high temperature and corrosion..
4. Upright double-layer serpentine coil condenser to ensure high recovery rate.
5. Large LCD screen can display the speed and temperature at the same time.
6. Intelligent constant temperature control of the bath, PT100 sensor transmits the temperature quickly and accurately.
7. Fuse safety protection, and has the function of automatic power off to prevent dry burning.
8. Electronic stepless speed regulation (0-200rpm), rotating setting, easy to operate.
9. Bath liner adopts stainless steel + Teflon compound, which is fully enclosed and heated.
10. Driven by a micro motor, automatically moves up and down.
Technical Parameters:
| Model | RE-3000E |
| Glass | High Borosilicate Glass GG-17(3.3) |
| Frame | Aluminium Alloy |
| Bath | Teflon Composite Pot，Fully Enclosed Heating 250*130mm |
| Rotary Bottle | 3L #50 |
| Collecting Bottle | 2L #35 |
| Rotary Motor | 40W, Induction Motor |
| Rotary Speed | 0-200rpm |
| Heating Power | 2KW |
| Temperature Range | 0-99℃ |
| Temperature Accuracy | ±1℃ |
| Achievable vacuum | 0.098Mpa |
| Evaporating capability | 20ml/min |
| Elevating Power | 15W |
| Elevating Stroke(mm) | 150mm |
| Voltage | 220V 50/60Hz(others can be customized) |
| Dimensions(mm*mm*mm) | 660*420*830 |
| Packing (mm*mm*mm) | 630*560*540 0.19m3 |
| Gross Weight（KG） | 30 |
| Speed-regulation | Electronic Stepless Speed-regulation |
| Rotary Speed Display | LCD |
| Temperature Display | PT100 Sensor LCD |
| Temperature Control | Intelligent temperature control |
| Sealing | Double Sealing |
| Lifting Function | Motorized lift |
| Condenser Model | Vertical Type 100*510mm |
| Continue Charging | 19# Charging Valve |
Optional:
| Heating | Oil Bath 0-400℃ |
| Bath Material | SUS 304 Stainless Steel |
| Splash Protection | Bath pot supporting transparent cover |

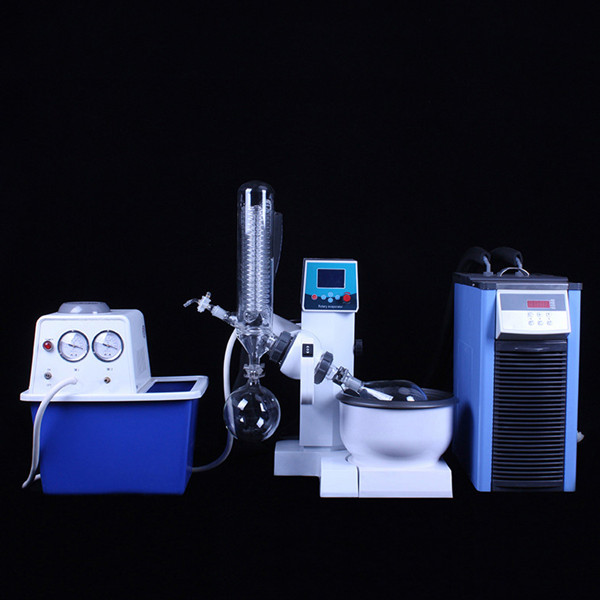

Turnkey Solution:
Temperature Control Unit
Which kinds of industry can use this 3L Rotary Evaporator?
Pharmaceutical, food, petroleum industries, and chemical laboratories, etc.
Applications:
Distillation,
Purification (purify samples),
Concentration,
Crystallization,
Extraction
Drying,
Separation(liquid separation),
Solvent recovery,
Indistillation of volatile solvents,
Chemical synthesis,
Prepare samples for analysis.
