2L Plasma Cleaner
Introduction:

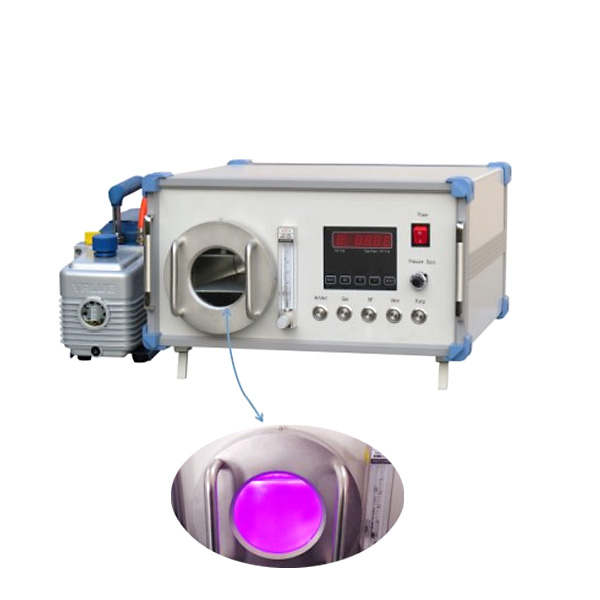

The 2L plasma cleaner has a built-in stainless steel chamber volume of 2 liters and adopts a universally recognized international structure. It utilizes innovative exterior design techniques and solid-state power automatic matching technology, effectively increasing its usable volume and ensuring stable control frequency. Capable of handling objects with a diameter of 100 millimeters and a height of 80 millimeters, it features an observation window for visualizing the processing of objects. Its radio frequency power supply and control are assembled in one chassis, minimizing space occupation, making it more convenient for operation and placement. Compared to large-scale cleaning machines, it offers one-click operation for both detection and control functions, making it particularly suitable for scientific experiments and teaching purposes.
Features and Benefits:
1.Stable performance, high cost-effectiveness, easy operation, low usage costs, and easy maintenance.
2.Can handle various geometric shapes with different surface roughness.
3.Timely processing, rapid treatment, and high cleaning efficiency.
4.Environmentally friendly and green; no use of chemical reagents, no pollution to samples or the environment.
5.Ultra-clean treatment under room temperature conditions, non-destructive treatment of samples.
Technical Parameter of 2L Plasma Cleaner:
Model | RFC-2L |
Power supply | AC 220V 50HZ |
Operating Current | The entire machine does not exceed 3.5A (excluding the vacuum pump). |
RF Power | 200W |
RF Frequency | 40KHz |
Frequency Offset | Less than 0.2 KHz |
Characteristic Impedance | 50 ohms, with automatic matching |
Vacuum | ≤100Pa |
Gas Flow Rate | 60—600ml/min |
Process Control | MCU Automatic and Manual Modes |
Overall Dimensions(mm) | 450x450x200mm |
Chamber Size (mm) | Φ100×270mm |
Net weight | 18kgs |
Vacuum pump | Model 3C(optional) |
Vacuum Chamber Temperature | Less than 65°C |
Cooling Method | Forced air cooling |
Standard Configuration | 1 unit of model-1.5C vacuum pump, 1 meter connecting hose |
Applications:
The 2l plasma cleaner operates on a 40KHz radio frequency power supply. As a precision dry cleaning equipment, it is primarily used in industries such as semiconductors, coating processes, PCB processes, component packaging, COG processing, vacuum electronics, connectors, relays, and other precision cleaning applications. It is also employed for surface activation of materials like plastic, rubber, metal, ceramics, and in life science experiments.
