27L Muffle Furnace | High-Capacity 1200°C Laboratory Furnace

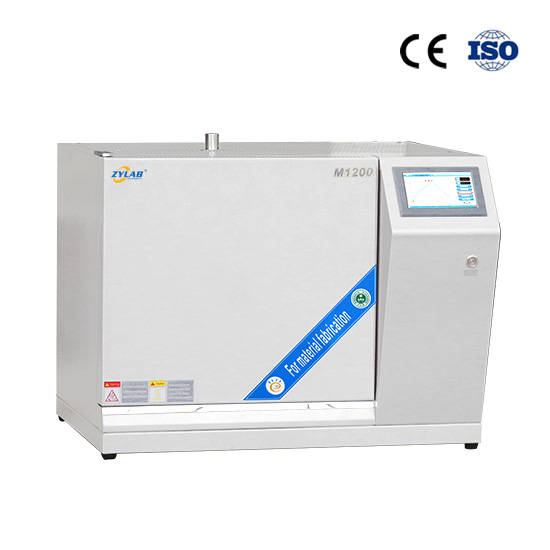

ZYLAB 27L Muffle Furnace

Introduction

ZYLAB 27L Muffle Furnace is a high-capacity benchtop furnace designed for demanding laboratory heat treatment tasks. With a maximum temperature of 1200°C and a spacious 27-liter ceramic fiber chamber, it allows for simultaneous processing of large or multiple samples, making it ideal for materials research, thermal testing, and routine analysis in academic and industrial labs.

Its user-friendly 7” touchscreen temperature controller, precise PID control, and robust construction ensure efficient, safe, and consistent heating performance.

Key Features

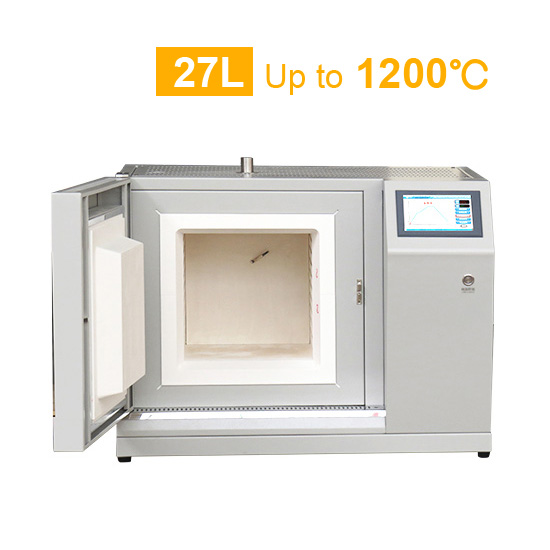

• Large 27L Chamber
  Accommodates bulkier or multiple samples at once, improving lab throughput and workflow efficiency.

• High-Temperature Performance
  Maximum temperature of 1200°C, with a recommended working range from room temperature to 1100°C, ideal for a wide range of thermal processing tasks.

• Smart Touchscreen Control
  Equipped with a 7-inch color touchscreen controller, offering intuitive operation and clear real-time display of the heating process. Supports storage of multiple temperature curves to avoid repeated settings across different experiments.

• Advanced Programmable Control
  Features 30-segment programmable temperature control for precise and automated heating cycles.

• Efficient Ceramic Fiber Chamber
  The furnace chamber is constructed from high-efficiency ceramic fiber, enabling fast heating rates, reduced power consumption, and excellent thermal insulation.

• Integrated Exhaust System
  Includes a top-mounted exhaust chimney, making the furnace suitable not only for standard heating but also for applications such as wax burning and ashing.

• Safe Double-Layer Casing
  The furnace body is designed with a double-layer steel structure and built-in cooling fan, keeping the outer surface temperature below 50°C to ensure operator safety.

• Low Power Consumption & Compact Design
  Designed with energy efficiency, lightweight construction, and a refined compact structure, this furnace is an ideal choice for material research laboratories and light industrial production.

Applications of 27L Muffle Furnace

• Ashing and loss-on-ignition analysis

• Ceramic and powder sintering

• Heat treatment of metal and non-metal samples

• Burnout and calcination of organic binders

• Thermal aging and material research

• Sample preparation for chemical testing (e.g., XRF, AAS)

Technical Specifications of 27L Muffle Furnace

Model	M1200-30
Working voltage	AC 208 – 240V, 50/60 Hz (according to requirement)
Max. Power	7KW
Maximum Temperature	1200°C (for ≤1 hour)
Continuous Working Temp	1100°C (continuous)
Max Heating Rate	≤20°C/min
Chamber Size	300 × 300 × 300 mm
Overall Dimensions	860 (W) × 650 (H) × 670 (D) mm
Temperature Controller		Color touchscreen with intuitive GUI (English/Chinese switchable). Embedded OS with smart HMI. Non-linear temperature calibration. Stores up to 15 programs, 30 segments per program. Safety features: over-temp alarm, thermocouple break alert, leakage protection.
Temperature Accuracy	±1°C
Heating Element		Mo-doped Fe-Cr-Al alloy heating wire
Atmosphere Protection Box（Optional）		Designed to create a controlled atmosphere inside the chamber. Prevents oxidation, contamination, and undesired reactions during heating. Customizable sizes available.
Net Weight	120 kg
Safety Notice	Do not open the chamber if internal temp ≥300°C to avoid injury. Small cracks in chamber due to use are normal and do not affect performance.
Warranty & Support	18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support.

Customization Options

ZYLAB offers flexible customization to meet a wide range of research and industrial processing needs. Optional features include:

• Gas Inlet for Inert Atmosphere
  Add a gas inlet to introduce inert gases such as argon or nitrogen for protective or purging purposes, and to help accelerate exhaust gas removal during heat treatment.

• Exhaust Outlet
  Integrated gas exhaust port effectively removes by-products generated during material sintering or thermal processing, keeping the chamber environment clean and stable.

• Observation Window
  Optional viewing window allows real-time monitoring of the sample’s condition and reaction status during the heating cycle.

• Custom Chamber Size
  The furnace chamber can be tailored to specific dimensions, accommodating various material sizes and process requirements.

Advantages of ZYLAB Furnaces

• Flexible Customization – Designed to meet diverse laboratory demands

• Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments

• Professional Support – Dedicated technical service and documentation

• Efficient Logistics – Timely delivery and global shipment options
