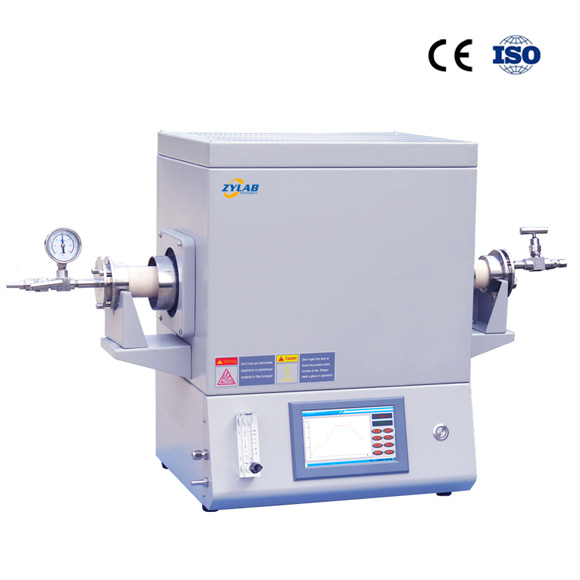

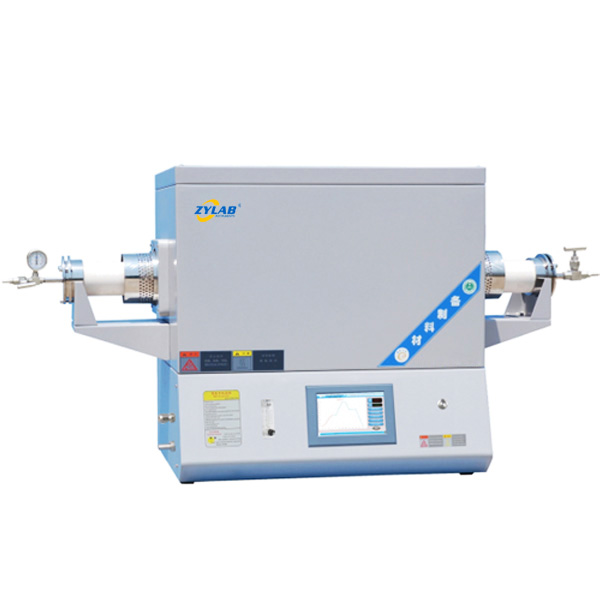

High Temperature 1700.C Horizontal Tube Furnace
Introduction
This 1700.C Horizontal Tube Furnace max.temperature up to 1700.C, use corundum tube as the carrier for heating and sealing. Precise and advanced touch screen auto temperature controller, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniform.
Is widely used for vacuum sintering, vacuum sintering under atmosphere protection, nano materials preparation, battery material preparation and other multiple research fields.
Key Features
1.Max. Temperature 1700.C, suggest working temperature 800-1650.C.

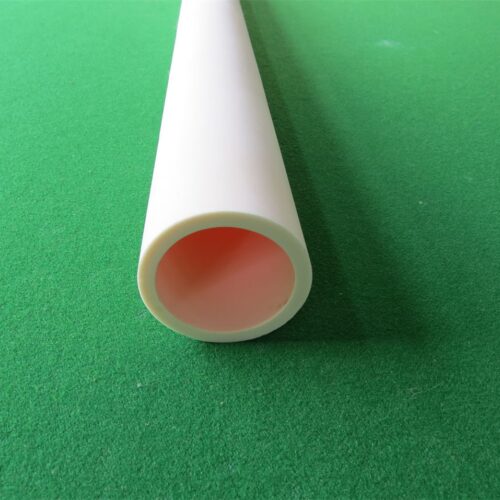

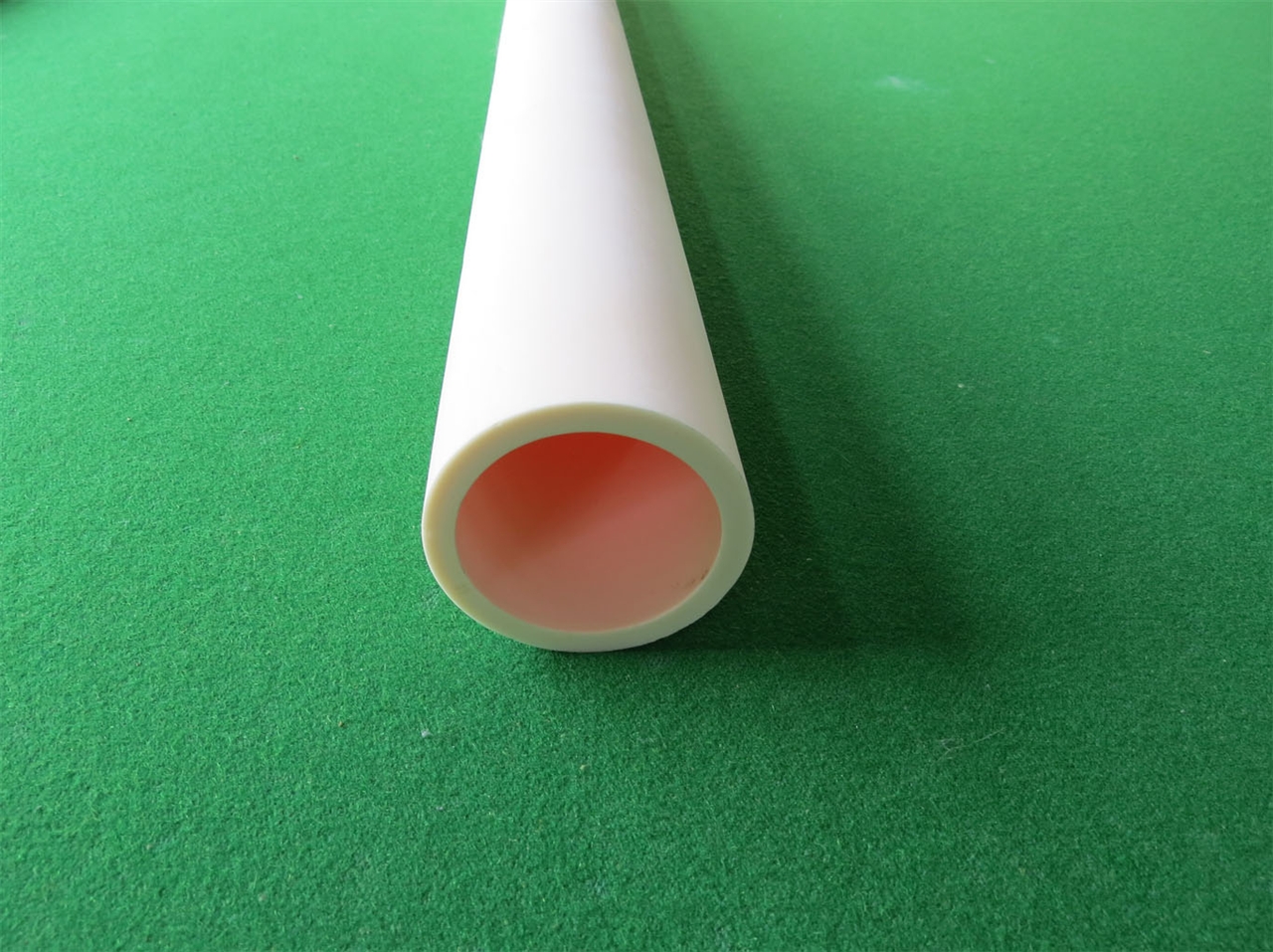

2.High purity alumina(Corundum tube as furnace tube, with excellent corrosion resistance and high temperature resistance, longer service life.
3. 30 segments programmable and auto control.

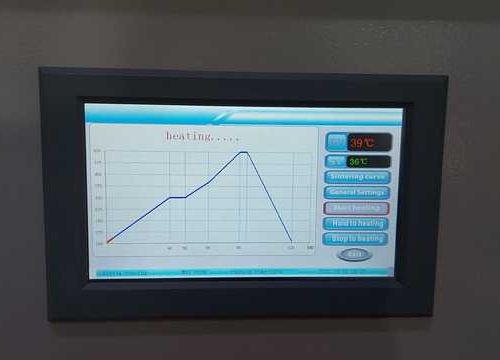

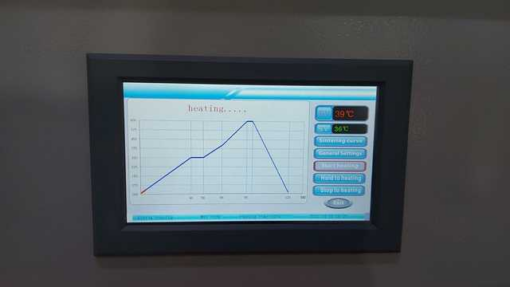

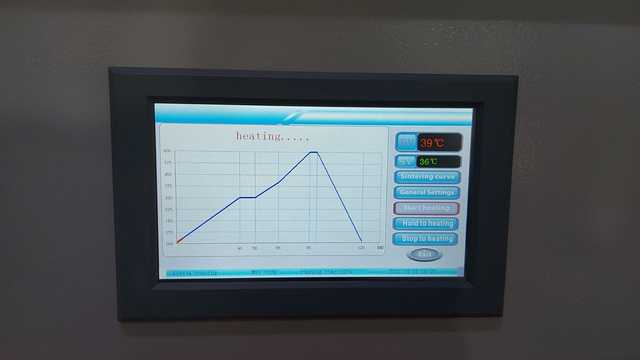

4. Intelligent 7”Color Touch screen LCD man-machine English interface temperature controller, more intuitive and convenient operation, the graph of sintering curve with temperature changes makes you clear at a glance.
5. Can presetting 15 sintering curves to avoid the trouble caused by repeated settings of different experimental processes.
6. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
7. By using special lining import from Japan and high quality heating elements made of pure type molydenum disilicide, protected against chemical contamination at the best and longer service life.
8. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
9. Come with gas flowmeter, atmosphere sintering more convenient.

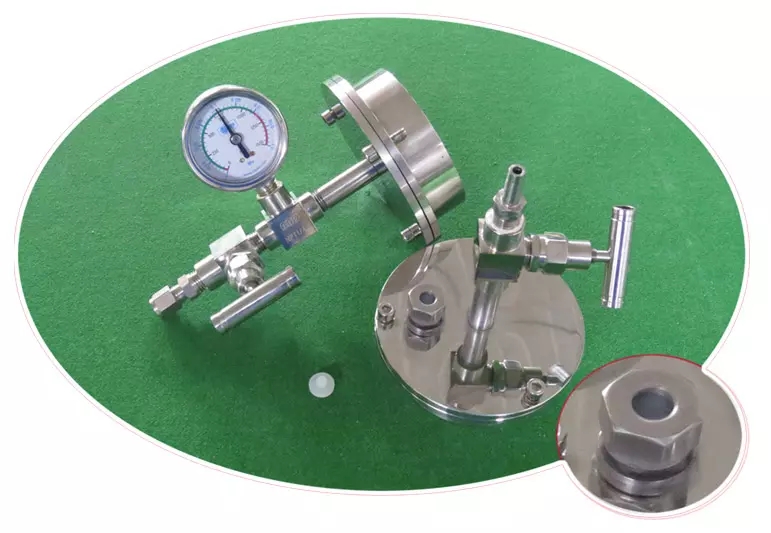

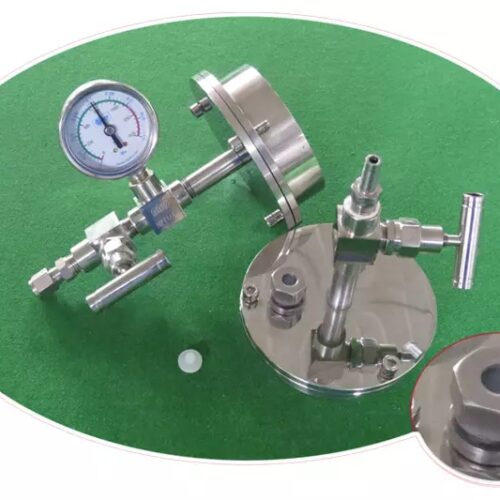

10. Unique flange has a multi-function test holes, insert the corresponding electrode to test tube temperature or atmosphere environment.
11. Low power consumable, exquisite structure and light weight, it is the ideal tube furnace for labs and production in factory.
Technical Parameters of 1700.C Horizontal Tube Furnace
| Model | T1700-IT |
| Chamber Material | Imported high quality alumina fiber refraction insulation |
| Heating Element | High purity mosi2 rod |
| Max.temperature | 1700.C |
| Working Temperature | ≤1650.C |
| Heating Rate | ≤20.C /min(advice:10.C/min) |
| Heating Zone | One(optional:two) |
| Length of Heating Zone | 180m(optional:310mm or 480mm) |
| Constant temperature Zone | 130mm |
| Tube Material | High Purity Alumina(Corundum tube) |
| Tube Size(mm) | Dia50x700mm
Other optional size: Φ50*1000,Φ60*1000,Φ80*1000(heating length 310mm) Φ50*1200,Φ60*1200,Φ80*1200(heating length 480mm) |
| Sealing Mode | Vacuum Flange |
| Vacuum | ≤ 10pa |
| Control Mode | Smart PID Control |
| Temperature Accuracy | +/- 1.C |
| Operating Interface | English Graphical Interface |
| Presetting Curve | 15 Presetting Curve, 30 Segments Programmable |
| Protection Setting | Over Temperature Alarm, Over Current Protection, Broken Thermocouple Prompt |
| Thermocouple | B Type |
| Power | 1.8kw |
| Working Voltage | 208-240V 50/60HZ |
| Dimensions | 850x680x420mm |
| Standard Accessories | Alumina Tube, Vacuum Flange,Vacuum Gauge, Gas Flow Meter,Tube Block, O-ring, Protective Gloves, Crucible Hook, Manual Book |
| Warranty | 18 months(not including consumable parts, such as alumina tube, heating elements, thermocouple, etc), lifetime support. |
| Certification | CE,ISO |
Which kinds of industry can use this 1700.C Horizontal Tube Furnace?
College & Universities, New Material Research, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications
The 1700.C Horizontal Tube Furnace is a versatile tool widely used in various fields, including:
- Material Science:
- Sintering and processing advanced materials.
- Studying phase transitions and structural properties of new materials.
- Energy Research:
- Conducting experiments in battery materials, fuel cells, and other energy storage technologies.
- Investigating materials for solar cells and hydrogen production.
- Chemical Analysis:
- Performing high-temperature chemical reactions.
- Analyzing the thermal stability and decomposition of compounds.
- Semiconductor Manufacturing:
- Used for doping processes and thermal oxidation in semiconductor fabrication.
- Nanotechnology:
- Synthesizing and characterizing nanomaterials at elevated temperatures.
- Environmental Studies:
- Testing material performance under extreme conditions, simulating environmental stressors.
This furnace is essential for researchers and engineers aiming to innovate in material development and energy solutions.
