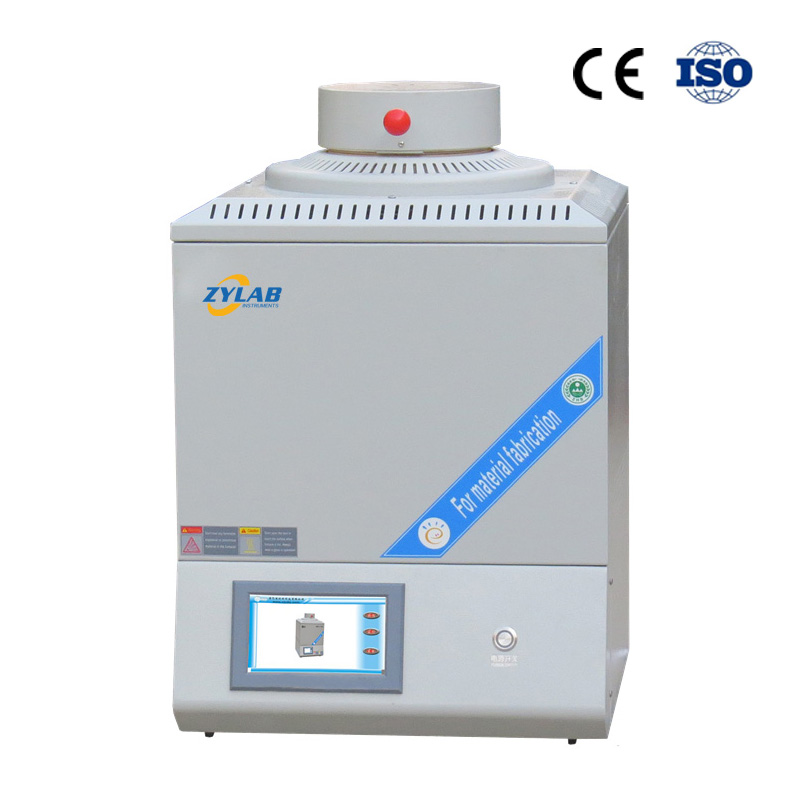

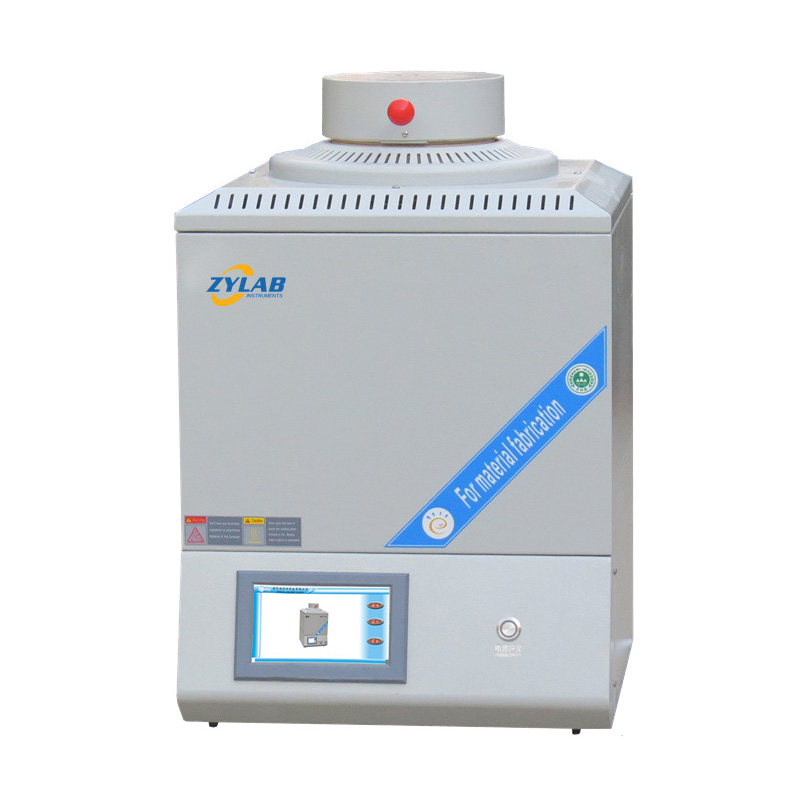

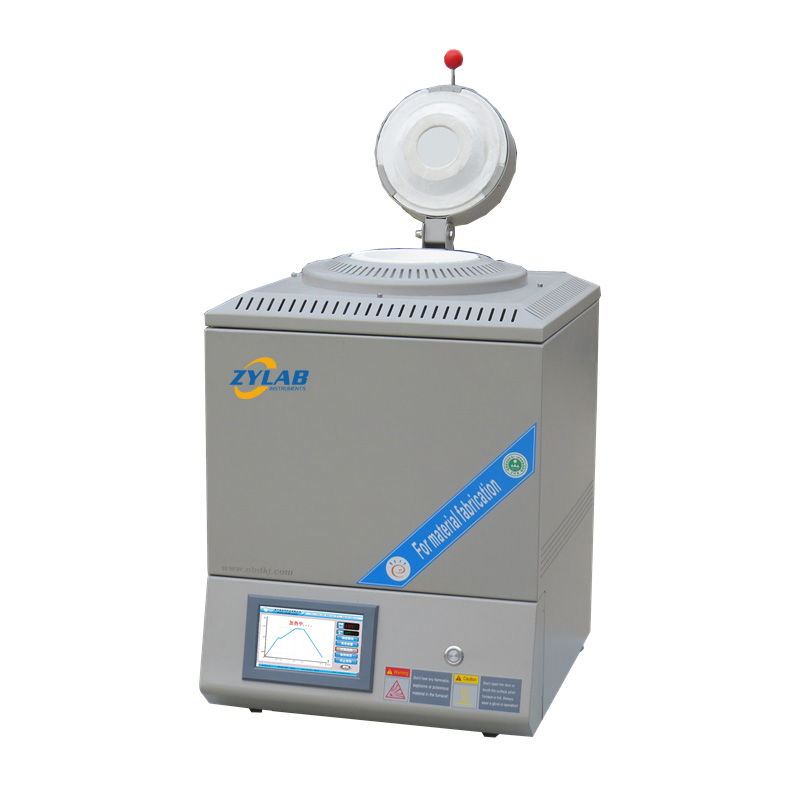

1700.C Crucible Furnace
Introduction:
The upper open 1700.C crucible furnace is suitable for high or heavy samples, the heating elements are evenly arranged around the furnace cavity make the thermal field uniformity.
It’s suitable for scientific research institutes, university laboratories, enterprises for high-temperature sintering, melting, heat treatment of metals, non-metals, alloys, ceramics and other materials.
Main Features:
1. Max. Temperature 1700C, working temperature 800-1650C.

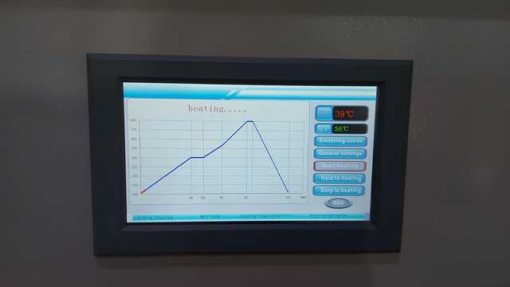

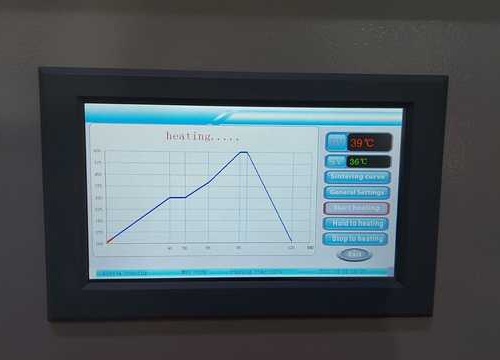

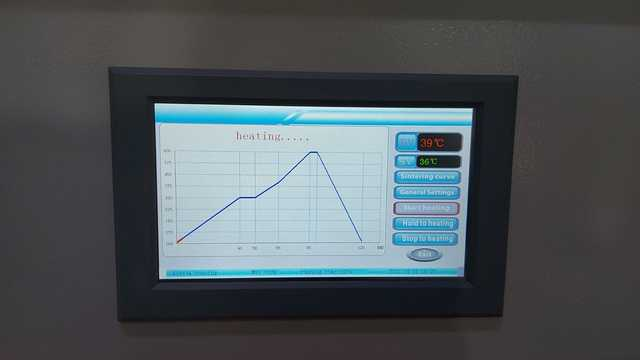

2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and heating elements made of pure type molydenum disilicide, products are protected against chemical contamination at the best and longer service life.

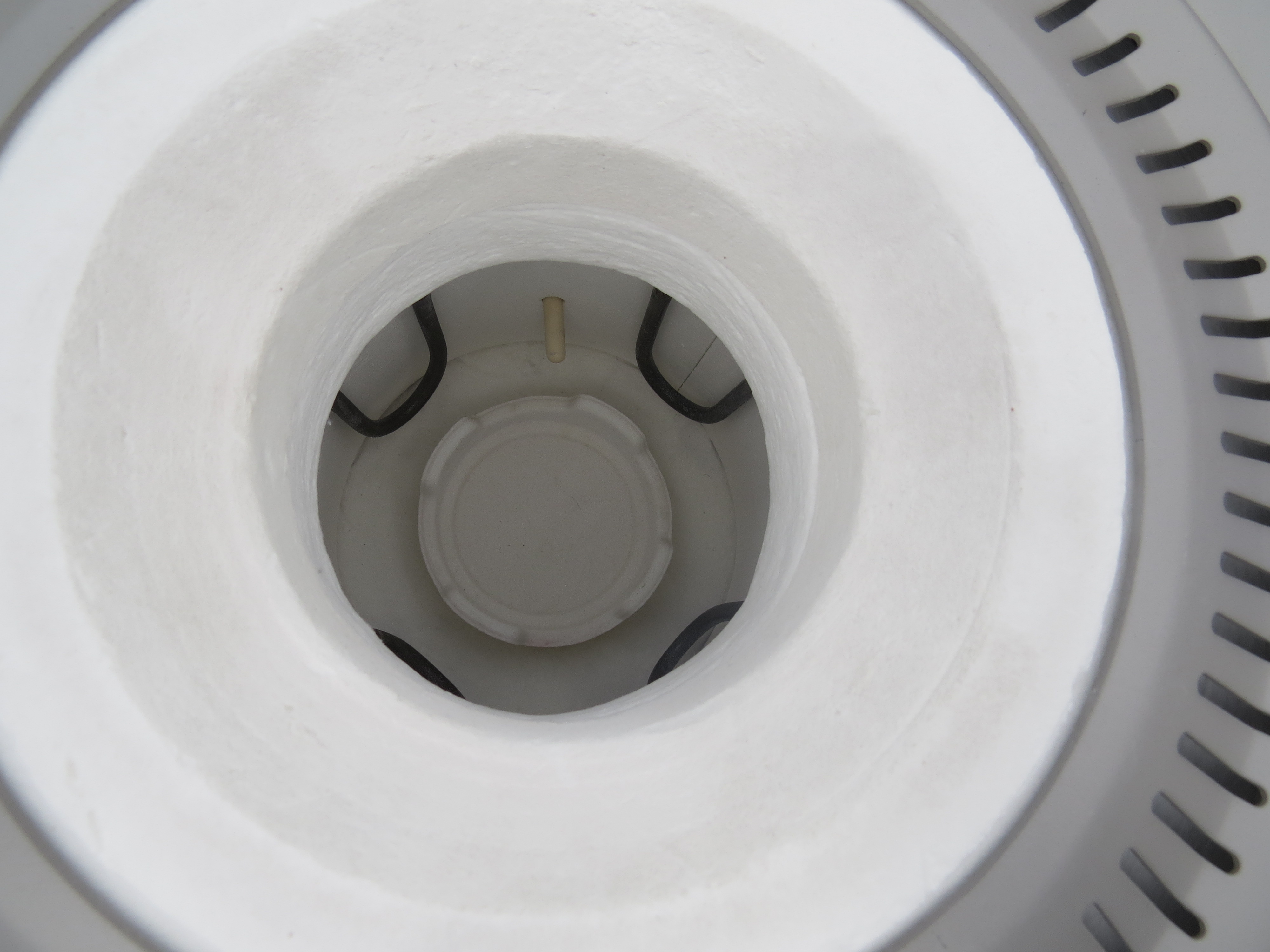

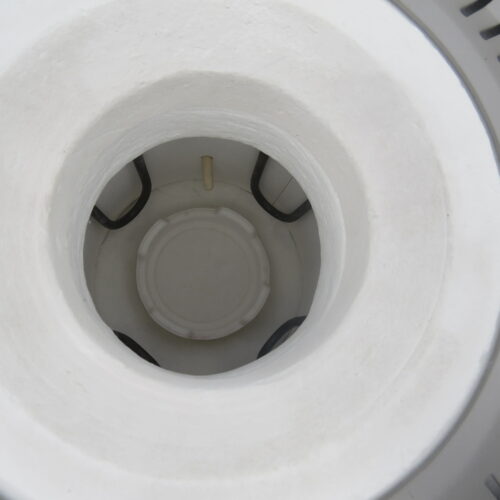

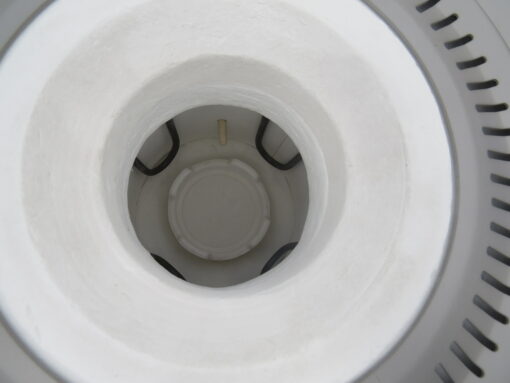

6. Heating elements ring distribution, the temperature is more uniform to obtain better effect.
7. Upturn door structure, pick and place materials convenient.
8. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
9. Low power consumable, exquisite structure and light weight, it is the ideal crucible furnace for material research labs, also used in factory production.
Main Specifications:
| Model | G1700-12IT |
|
Furnace structure |
•1800 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size
(working space) |
Dia120*160mm
(Optional big size: 300*500mm) |
| Max. temperature | 1700 ℃(<1hours) |
| Working temperature | 800-1650 ℃(continuing) |
| Intelligent Touch Screen
Temperature controller |
•PID automatic control and auto-tune function. •30 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple, and leakage. • Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation.•.Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating rate | 0-20 ℃ /min(Suggest: 10°C/min) |
| Thermocouple | B type |
| Temperature accuracy | +/- 1 ℃ |
| Heating element | M1800 high purity MoSi2 heating element |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 2.8Kw |
| Dimension | 550(W)*750(H)*500(D)mm |
| Quantity / Net weight | 1set / 90kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
| Certificate | CE, ISO9001 |
Which kinds of industry can use this 1700.C Crucible Furnace?
College & Universities, New Material Research, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications:
Used in university laboratories, research institutes, and industrial & mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
For heat working or treatment of small workpieces in cement and building materials industries.
Used in the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis,etc.
