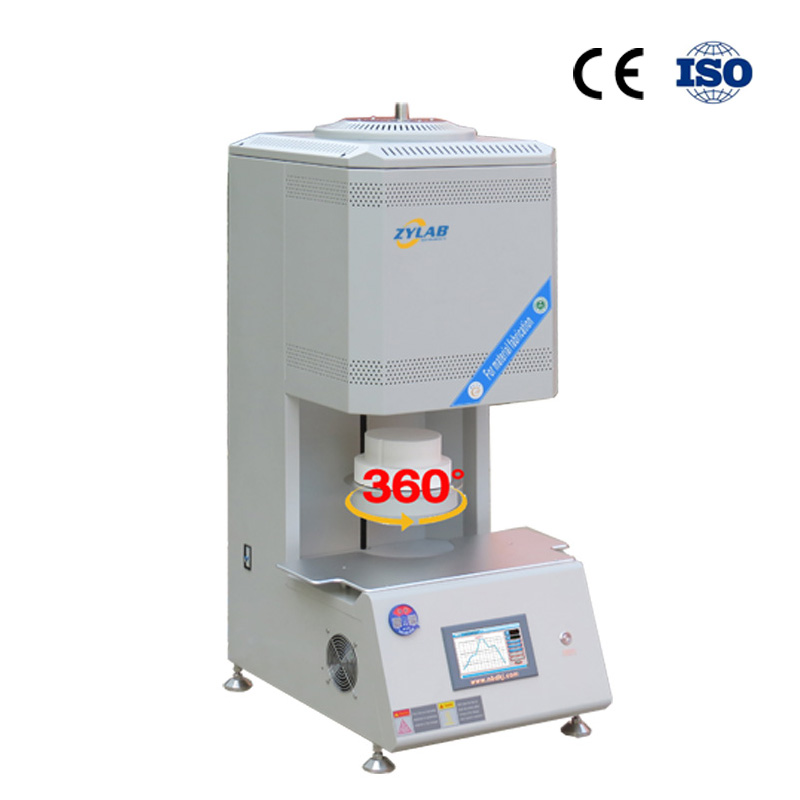

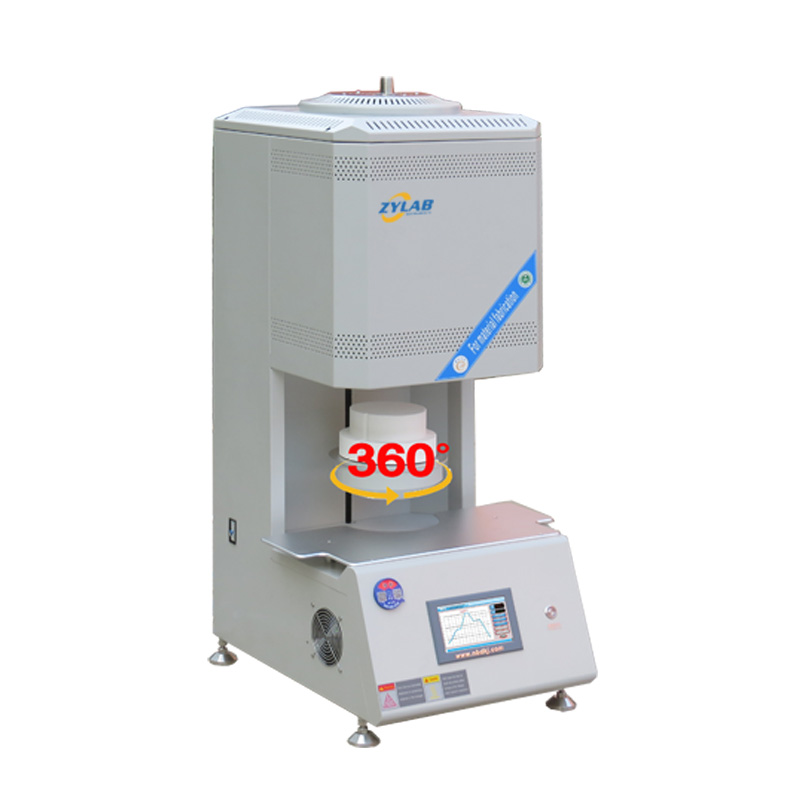

1700.C 4L Bottom Loading Sintering Furnace
Introduction:
This 1700.C bottom loading sintering furnace is widely used in university laboratories and scientific research institutes for sintering, testing, annealing, melting,etc heat treatment.
Electric lifts design greatly simplify the loading step, much safer. Compact and practical, and beautiful design won the praise of customers, such as heating elements distributed all around – its more constant temperature field, Round heating chamber can place three layers of crucible , automatic bottom loading and lifting structure. latex hole carefully designed is the perfect solution to the waste gas during material sintering.
High quality touch-screen control system makes operation more simple, intuitive and fast. In addition, 15 curves can be stored varies with temperature sintering curve.
Main Features:
1. Max. Temperature 1700C, working temperature 800-1650C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and heating elements made of pure type molydenum disilicide, products are protected against chemical contamination at the best and longer service life.
6. Heating elements ring distribution, the temperature is more uniform to obtain better effect.
7. Automatic bottom loading and lifting structure. Silent bilateral lifting system to ensure the stability of the lifting system.
8. Latex hole carefully designed is the perfect solution to the waste gas during material sintering.
9. Low power consumable, exquisite structure and light weight, it is the ideal bottom loading furnace for material research labs, also used in factory production.

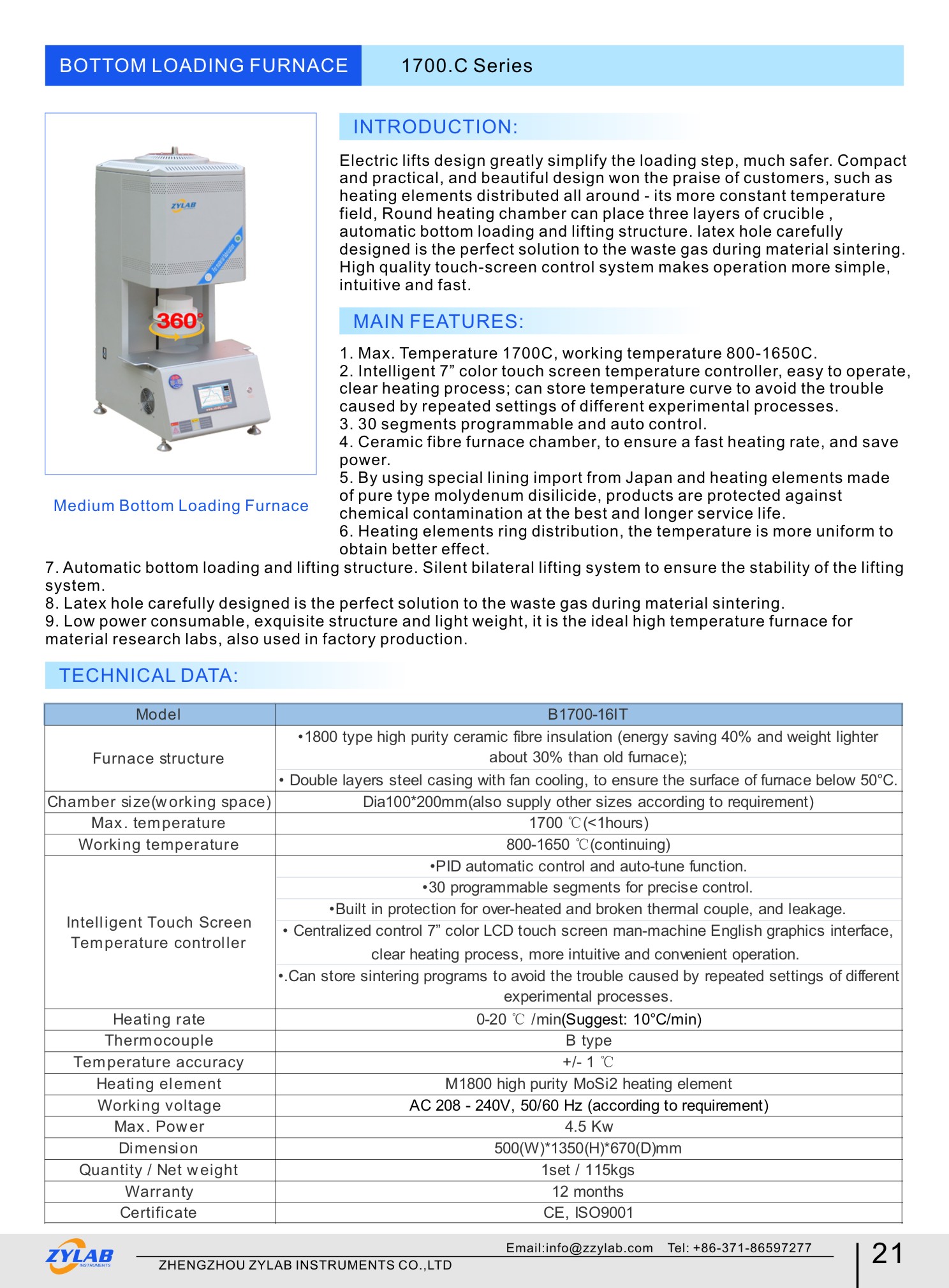

Main Specifications:
| Model | B1700-16IT |
|
Furnace structure |
•1800 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size
(working space) |
Dia160*200mm(capacity:4L) |
| Max. temperature | 1700 ℃(<1hours) |
| Working temperature | 800-1650 ℃(continuing) |
| Intelligent Touch Screen
Temperature controller |
•PID automatic control and auto-tune function. •30 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple, and leakage. • Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation.•.Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating rate | 0-20 ℃ /min(Suggest: 10°C/min) |
| Thermocouple | B type |
| Temperature accuracy | +/- 1 ℃ |
| Heating element | M1800 high purity MoSi2 heating element |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 4.5 Kw |
| Dimension | 500(W)*1350(H)*670(D)mm |
| Quantity / Net weight | 1set / 115kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
| Certificate | CE, ISO9001 |
Which kinds of industry can use this Bottom Loading Sintering Furnace?
College & Universities, New Material Research, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications:
Used in university laboratories, research institutes, and industrial & mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
For heat working or treatment of small workpieces in cement and building materials industries.
Used in the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis,etc.
