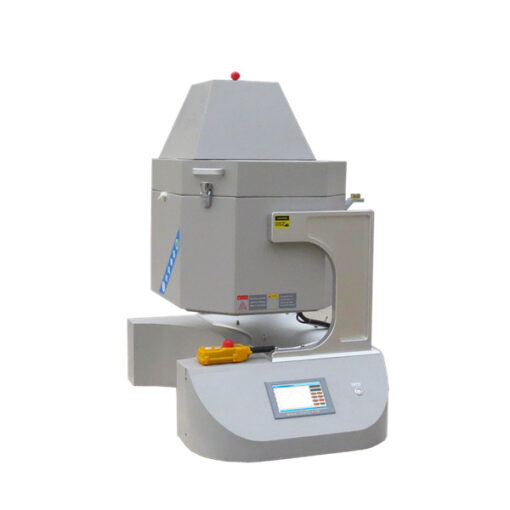

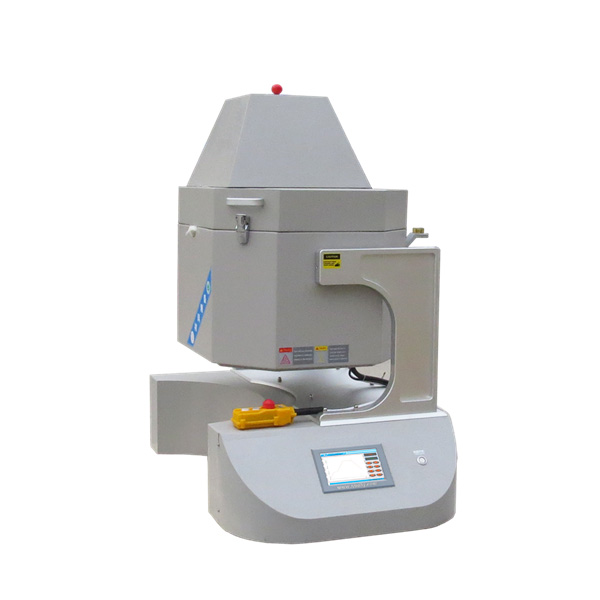

Laboratory Precision 1500°C Melting Furnace with Automatic Pouring Function

Laboratory Precision 1500°C Melting Furnace with Automatic Pouring Function

Introduction:

This 1500°C Melting Furnace is used for melting and casting of metal materials, featuring an automatic tilting function to facilitate precision casting at high temperatures. It utilizes fiber refractory insulation materials, making it more energy-efficient.

Features and Benefits of 1500°C Melting Furnace:

• Uses contactless silicon-controlled rectifier (SCR) modules to enhance system control stability.
• Manufactured with advanced refractory insulation materials, minimizing heat loss and effectively reducing the power consumption of the equipment.
• High melting efficiency, excellent energy-saving performance, and uniform metal composition.
• Equipped with an automatic tilting function for quick casting operations.

Technical Parameters:

Model	P1500-2.5LTI	P1700-2.5LTI
Power supply	AC220V 4KW	AC220V 5KW
Maximum Temperature	1500°C (<1 hour)	1700°C (<1 hour)
Working Temperature	1450°C (continuous)	1650°C (continuous)
Heating Rate	≤20°C/min
Furnace Chamber Volume	2.5L
Control System	1. Embedded operating system with bilingual (Chinese/English) graphical interface, 7-inch true-color touchscreen input, intelligent human-machine dialogue mode, real-time heating power display; nonlinear temperature correction; 2. 15 temperature profiles can be pre-stored, each with 30 temperature-time segments, avoiding the hassle of repeated settings for different experimental processes; 3. Features over-temperature alarm, thermocouple break indication, and leakage protection.
Pouring Method	Motor-controlled for automated sample pouring, ensuring safer and more reliable operation.
Temperature Accuracy	+/- 1°C
Heating Element	High-purity silicon carbide rods	High-purity molybdenum disilicide rods
Net Weight	75KG	110KG
Service Support	1-year warranty with lifetime support (warranty does not cover consumable parts).
