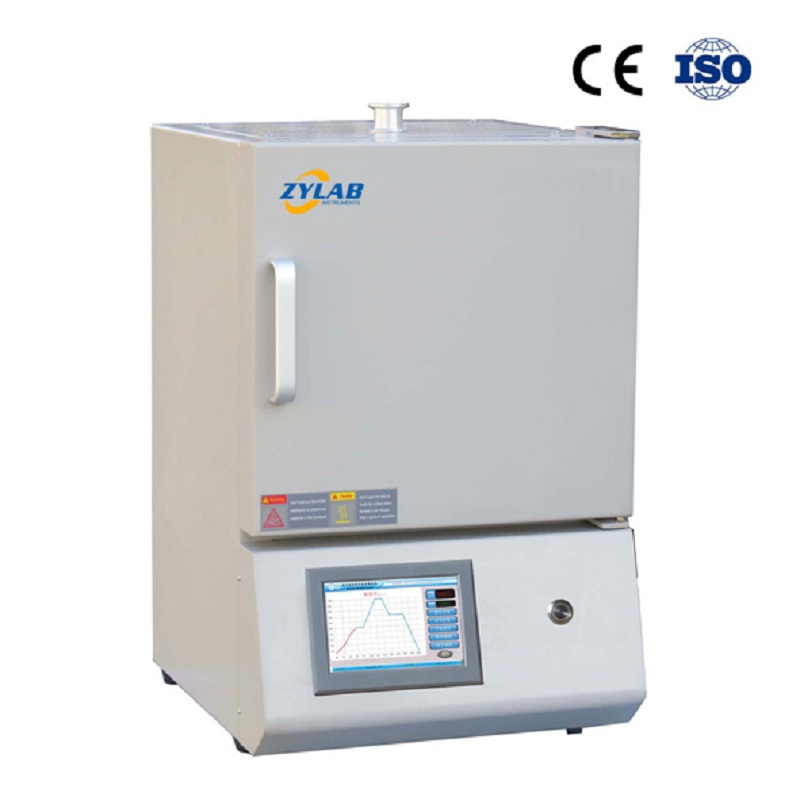

Lab 1400°C Benchtop Muffle Furnace for High-Temperature Applications
Introduction
The first-class workmanship and using high-quality materials, combined with ease of operation, make the 1400°C Benchtop Muffle Furnace all-rounders in research and the laboratory, such as sintering, melting, annealing, heating, test, etc heat treatment.
The exquisite design gives people a smooth experience. The sintering curve that changes with temperature makes you clear at a glance and solves the problem of wrong curve setting. 15 sintering curves can be pre-stored to save the trouble of repeated modification, plus the classic style and touch screen graphic interface, making the operation of the device more simple. Reasonable heat dissipation design scheme makes the surface temperature of the furnace body always lower than 50.C under high temperature.
Features
1. Max. Temperature 1500C, working temperature RT-1450C.
2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining and top quality sic heating element with excellent acid and corrosion resistance, products are protected against chemical contamination at the best and long service life.
6. Chimney carefully designed is the perfect solution to the waste gas during material sintering.
7. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
8. Low power consumable, exquisite structure and light weight, it is the ideal muffle furnace for material research labs.
Technical Specifications
| Model | M1500-12IT |
|
Furnace structure |
•1600 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size
(working space) |
120*120*120mm
Also supply other sizes:160*160*160mm, 220*220*260mm, 220*220*300mm, 300*300*400mm. |
| Max. temperature | 1500.C(<1hours) |
| Working temperature | RT-1450.C(continuing) |
| Intelligent Touch Screen
Temperature controller |
1. PID automatic control and auto-tune function. 2. 30 programmable segments for precise control. 3. Built in protection for over-heated and broken thermal couple, and leakage. 4. Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation. 5. Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes.
|
| Heating rate | 0-20.C /min |
| Thermocouple | S type |
| Temperature accuracy | +/- 1.C |
| Heating element | High-purity sic heating element with excellent acid and corrosion resistance
|
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 1.5Kw |
| Dimension | 390(W)*630(H)*430(D)mm |
| Quantity / Net weight | 1set / 50kgs |
| Warranty | 12 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
| Certificate | CE, ISO9001 |
Which kinds of industry can use this 1400°C Benchtop Muffle Furnace?
Universities, Chemistry, Material Science, New Energy Research, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic etc.
Applications of 1400°C Benchtop Muffle Furnace
- Material Sintering – Ideal for high-temperature sintering of ceramics, metals, and composite materials.
- Ashing and Combustion – Perfect for sample ashing, combustion, and organic material analysis.
- Heat Treatment – Used for hardening, tempering, and annealing various materials in laboratory settings.
- Research and Development – Supports a range of R&D applications in materials science, chemistry, and metallurgy.
- Sample Preparation – Essential for preparing samples in laboratories, particularly for elemental analysis and mineralogy.
- Metallurgical Testing – Suitable for testing metal alloys and other high-temperature experiments in the metallurgy field.
- Powder Processing – Useful for processing powders in industries such as pharmaceuticals, coatings, and catalysts.
