Continuing Operating Temperature 1400.C Programmable Muffle Furnace Along All Standard Accessories
Introduction:

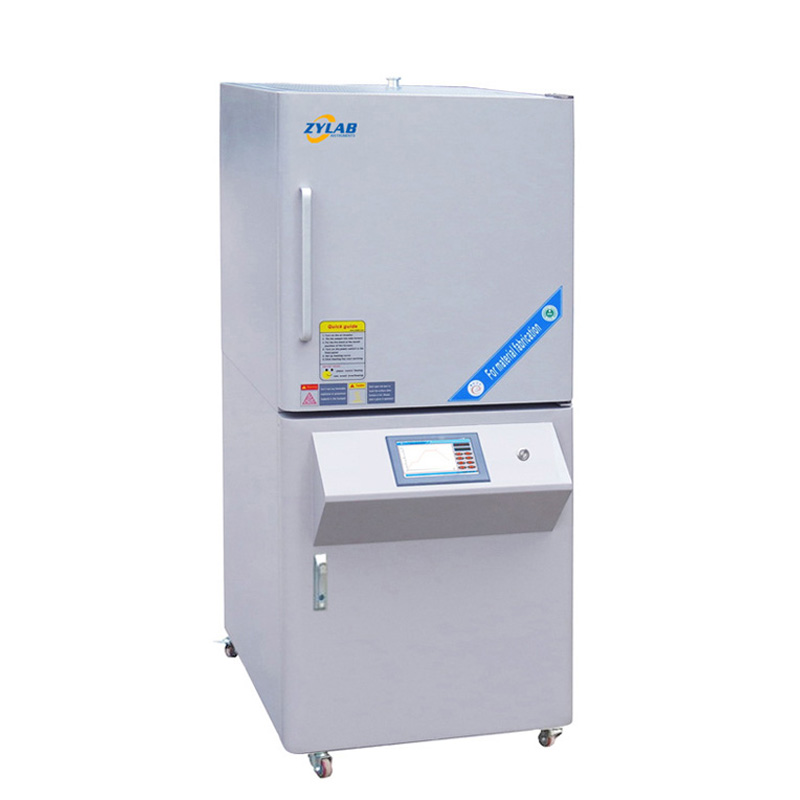

This 1400.C Programmable Muffle Furnace adopts durable compact vertical structure, without auxiliary table, convenient operation.
The tilting angel of operating panel is 43, excellent user experiences.
The exquisite design gives people a smooth experience. The sintering curve that changes with temperature makes you clear at a glance and solves the problem of wrong curve setting. 15 sintering curves can be pre-stored to save the trouble of repeated modification, plus the classic style and touch screen graphic interface, making the operation of the device more simple. Reasonable heat dissipation design scheme makes the surface temperature of the furnace body always lower than 50.C under high temperature.
Features and Benefits:
1. Max. Temperature 1500.C, working temperature Rt –1450.C.
2. 51 segments programmable, auto control.
3. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
4. By using special lining import from Japan and high quality SiC heating elements with excellent acid and corrosion resistance, products are protected against chemical contamination at the best and long service life.
5. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C, safety for the operator.
6. 7”color touch screen LCD man-machine English graphics interface, more intuitive and convenient operation.

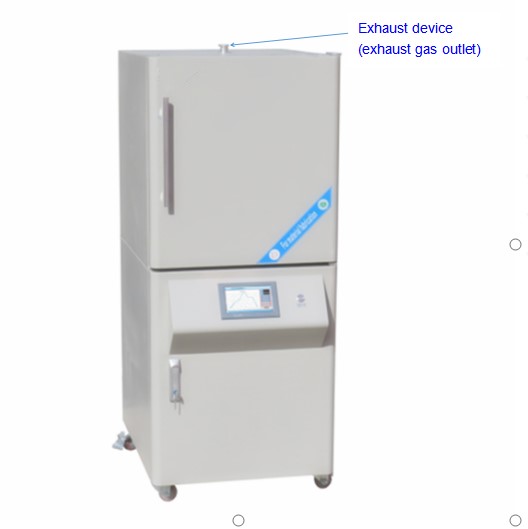

7. With the exhaust device(an exhaust chimney in the top of the furnace), effectively remove volatiles generated during sintering
8. Easy to move casters, more convenient.
9. Low power consumable, exquisite structure and light weight, it is the ideal chamber furnace for labs.
Technical Parameters of 1400.C Programmable Muffle Furnace:
| Model | M1500-30IT |
| Furnace structure | •1600 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size
(working space) |
300*300*400mm |
| Max. temperature | 1500.C(<1 hour) |
| Continuing Working temperature | 1400.C(continuing) |
| Intelligent Touch Screen
Temperature controller |
•PID automatic control and auto-tune function;
•51 programmable segments for precise control; •Built in protection for over-heated and broken thermal couple, and leakage; •Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation; •.Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating element | High purity sic heating elements with excellent acid and corrosion resistance and long service life. |
| Heating rate | 0~20.C/min |
| Temperature accuracy | +/- 1.C |
| Thermocouple | S type |
| Working voltage | AC380V 50Hz |
| Max. Power | 6 Kw |
| Dimension | 640(W)*1530(H)*900(D)mm |
| Warranty | 12 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |

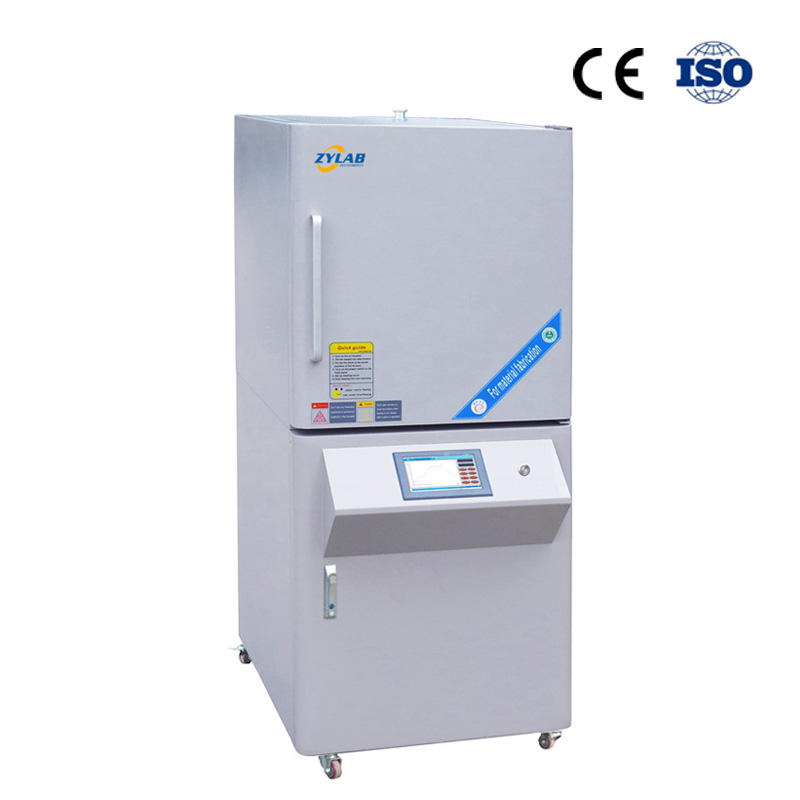

| Certificate | CE, ISO |
Which kinds of industry can use this 1400.C Programmable Muffle Furnace?
College & Universities, Scientific Research, New Material Research, Chemistry, Medicine, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications:
Here are some applications of a 1400°C programmable muffle furnace:
Materials Research and Development:
Used for studying the properties of various materials at high temperatures, including ceramics, metals, and alloys. Researchers can investigate phase transformations, thermal stability, and microstructural changes.
Sintering:
The furnace is employed in the sintering process to compact and bond particles of a material together at elevated temperatures, improving density, strength, and other properties.
Heat Treatment:
Commonly used in metallurgy for heat treating metals and alloys to modify their properties, such as hardness, toughness, and electrical conductivity. Processes include annealing, tempering, and quenching.
Powder Metallurgy:
Utilized for sintering metal powders to produce solid components with intricate shapes and structures. Powder metallurgy applications include manufacturing of gears, bearings, and cutting tools.
Ceramics Processing:
Ideal for firing ceramic materials to achieve desired properties such as strength, hardness, and porosity. Applications include manufacturing of tiles, bricks, and advanced ceramics used in electronics and aerospace.
Crystal Growth:
Used in crystal growth experiments to produce single crystals of materials such as silicon, gallium arsenide, and quartz. High-temperature conditions provided by the furnace facilitate the controlled growth of crystals with specific properties.
Thermal Decomposition Analysis:
Employed in laboratories for thermal decomposition studies, such as thermogravimetric analysis (TGA), where samples are heated to analyze weight loss and chemical changes.
Ashing:
Used for ashing organic samples to determine the ash content and composition. Ashing involves heating samples to high temperatures in a controlled atmosphere to combust organic matter, leaving behind inorganic residues.
Environmental Testing:
Applied in environmental science and analysis for various applications, including testing soil samples, analyzing pollutants, and studying biomass decomposition.
Quality Control in Manufacturing:
Employed in industries such as aerospace, automotive, and electronics for quality control testing of materials and components to ensure reliability, consistency, and performance.
Educational Purposes:
Used in educational institutions for teaching materials science, chemistry, and engineering concepts related to high-temperature processes and laboratory techniques.
