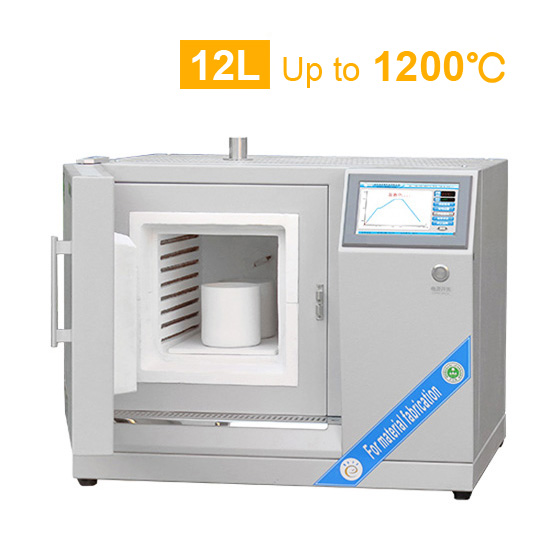

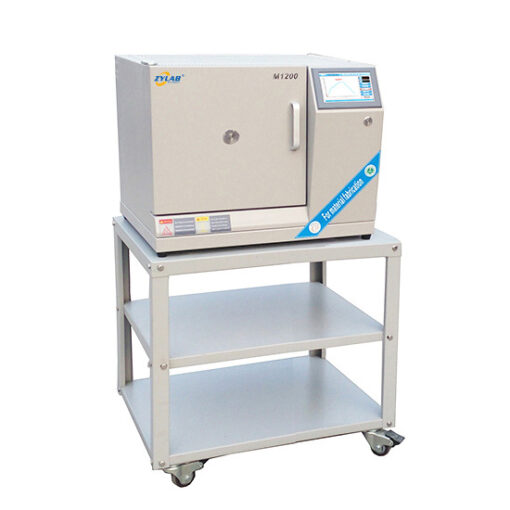

ZYLAB 12L Muffle Furnace
Introduction
ZYLAB 12L Muffle Furnace is a benchtop high-temperature furnace featuring a spacious 12-liter chamber, ideal for laboratories that require heat treatment of larger or multiple samples simultaneously.
With a maximum temperature of 1200°C and precise temperature control, it supports a wide range of applications such as ashing, sintering, and thermal processing.
Its compact footprint, durable construction, and intelligent control system make it a reliable solution for research and quality testing.
Key Features
- 12L Chamber Capacity
Spacious interior for processing larger sample batches or bulk materials in research and testing. -
High-Temperature Performance
Maximum temperature of 1200°C, with a recommended working range from room temperature to 1100°C, ideal for a wide range of thermal processing tasks. -
Smart Touchscreen Control
Equipped with a 7-inch color touchscreen controller, offering intuitive operation and clear real-time display of the heating process. Supports storage of multiple temperature curves to avoid repeated settings across different experiments. -
Advanced Programmable Control
Features 30-segment programmable temperature control for precise and automated heating cycles. -
Efficient Ceramic Fiber Chamber
The furnace chamber is constructed from high-efficiency ceramic fiber, enabling fast heating rates, reduced power consumption, and excellent thermal insulation. -
Integrated Exhaust System
Includes a top-mounted exhaust chimney, making the furnace suitable not only for standard heating but also for applications such as wax burning and ashing. -
Safe Double-Layer Casing
The furnace body is designed with a double-layer steel structure and built-in cooling fan, keeping the outer surface temperature below 50°C to ensure operator safety. -
Low Power Consumption & Compact Design
Designed with energy efficiency, lightweight construction, and a refined compact structure, this furnace is an ideal choice for material research laboratories and light industrial production.
Applications of 12L Muffle Furnace
-
Ashing of organic and inorganic materials
Efficient for determining sample composition or removing volatile components. -
Sintering of ceramic and powder materials
Suitable for low to medium-temperature sintering of lab-scale components. -
Heat treatment and thermal aging
Ideal for annealing, stress relief, and other material modification processes. -
Material characterization
Used in universities, research institutes, and R&D labs for studying thermal behavior. -
Sample pre-treatment for chemical analysis
Prepares specimens for accurate downstream testing such as XRF, AAS, or SEM. -
Burnout and calcination processes
Reliable for removing binders or moisture content in material science workflows.
Technical Specifications of 12L Muffle Furnace
Model | M1200-20 | |
Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) | |
Max. Power | 4KW | |
Maximum Temperature | 1200°C (for ≤1 hour) | |
Continuous Working Temp | 1100°C (continuous) | |
Max Heating Rate | ≤20°C/min | |
Chamber Size | 200 × 200 × 300 mm | |
Overall Dimensions | 650 (W) × 520 (H) × 600 (D) mm | |
Temperature Controller | ![]() |
|
Temperature Accuracy | ±1°C | |
Heating Element | ![]() |
Mo-doped Fe-Cr-Al alloy heating wire |
Atmosphere Protection Box(Optional) | ![]() |
Designed to create a controlled atmosphere inside the chamber. Prevents oxidation, contamination, and undesired reactions during heating. Customizable sizes available. |
Net Weight | 60 kg | |
Safety Notice |
|
|
Warranty & Support | 18 months(not including consumable parts, such as heating elements, thermocouple), lifetime support. |
Customization Options
ZYLAB offers flexible customization to meet a wide range of research and industrial processing needs. Optional features include:
-
Gas Inlet for Inert Atmosphere
Add a gas inlet to introduce inert gases such as argon or nitrogen for protective or purging purposes, and to help accelerate exhaust gas removal during heat treatment. -
Exhaust Outlet
Integrated gas exhaust port effectively removes by-products generated during material sintering or thermal processing, keeping the chamber environment clean and stable. -
Observation Window
Optional viewing window allows real-time monitoring of the sample’s condition and reaction status during the heating cycle. -
Custom Chamber Size
The furnace chamber can be tailored to specific dimensions, accommodating various material sizes and process requirements.
Advantages of ZYLAB Furnaces
-
Flexible Customization – Designed to meet diverse laboratory demands
-
Widely Used in Research and Industry – Reliable performance in materials labs, universities, and production environments
-
Professional Support – Dedicated technical service and documentation
-
Efficient Logistics – Timely delivery and global shipment options
