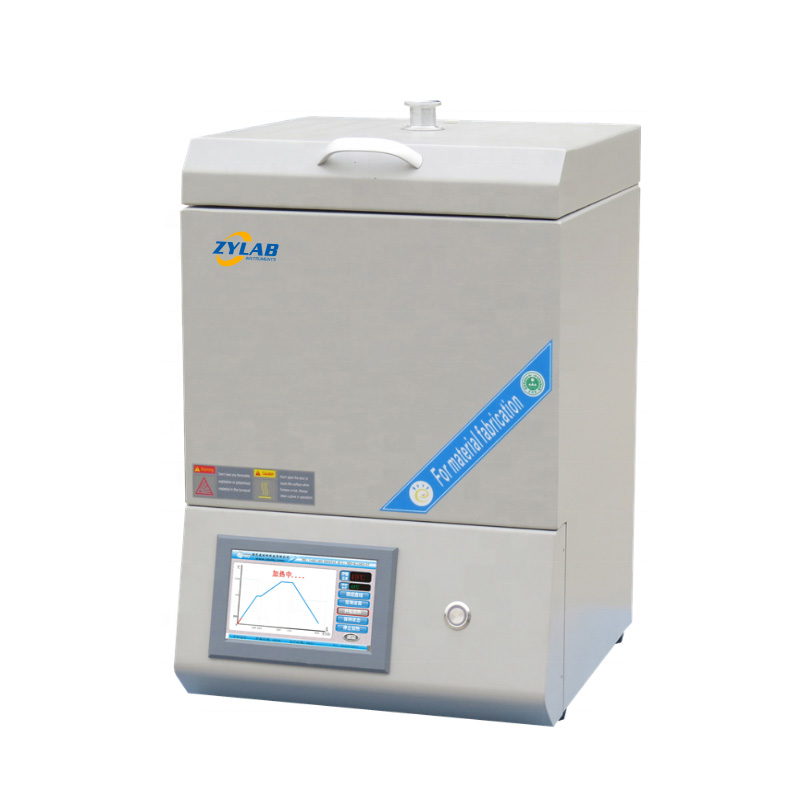

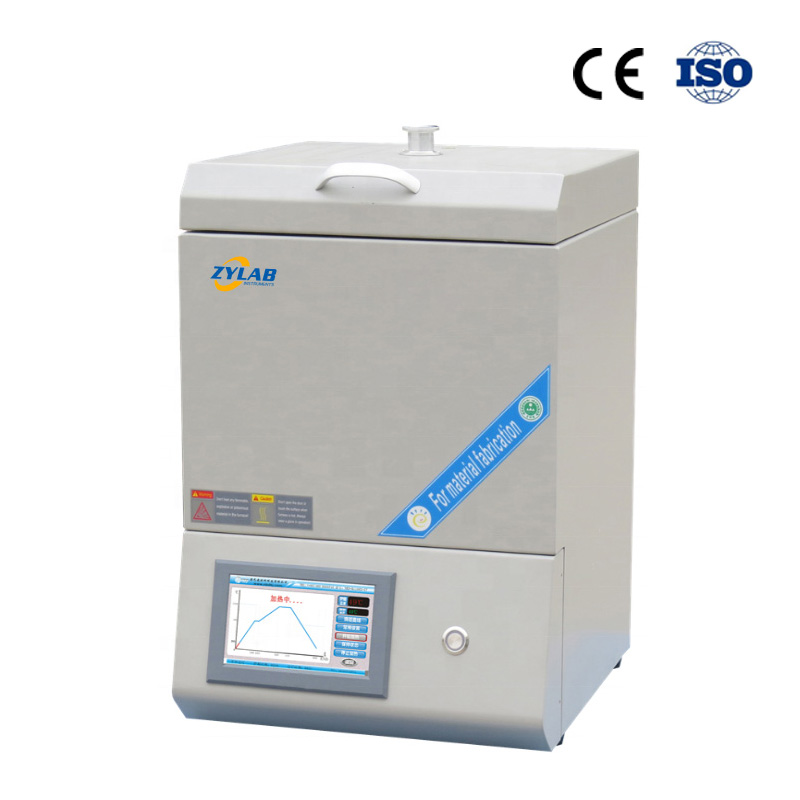

1200.C Crucible Furnace
Introduction:
The 1200.C Crucible Furnace be widely used for high temperature sintering, melting and heat treatment of metal alloy, nonmetal material, ceramic material and other materials, ideal electric furnace for university, research institutes.
Adopts ferro – chromium aluminum alloy heating wire element doped with molybdenum.
The integrated shape design, coupled with the minimalist control mode, makes the 1200.C Crucible Furnace has a very high cost performance.
Main Features:
1. Max. Temperature 1200C, working temperature RT-1100C.

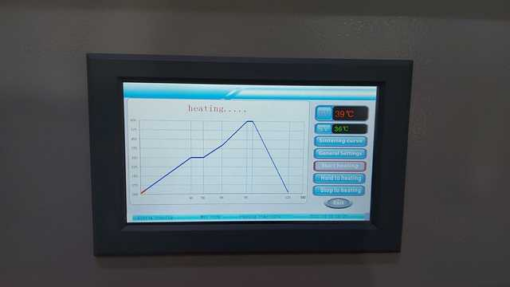

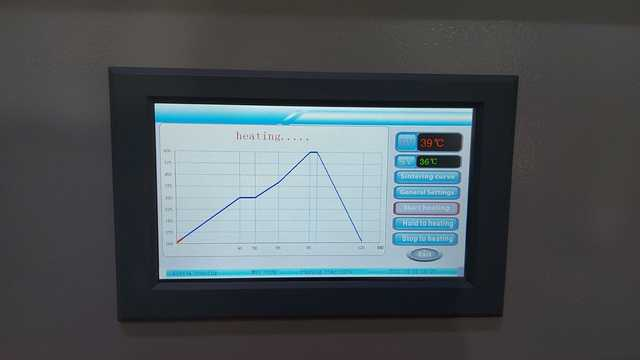

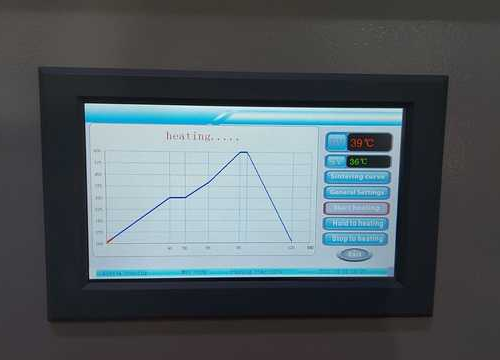

2. Intelligent 7” color touch screen temperature controller, easy to operate, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.
3. 30 segments programmable and auto control.
4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and high quality alloy heating wire with excellent acid and corrosion resistance, protected against chemical contamination at the best and longer service life.

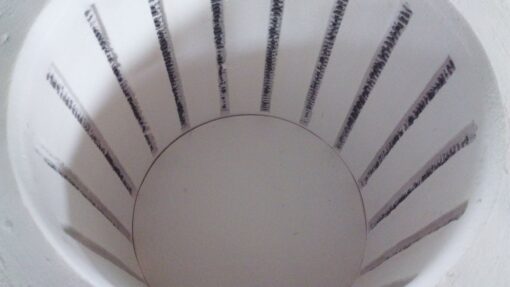

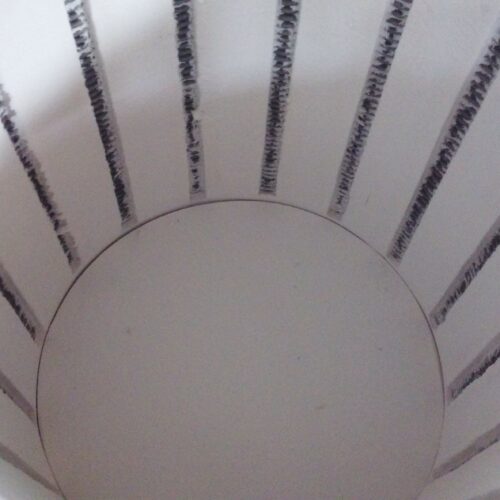

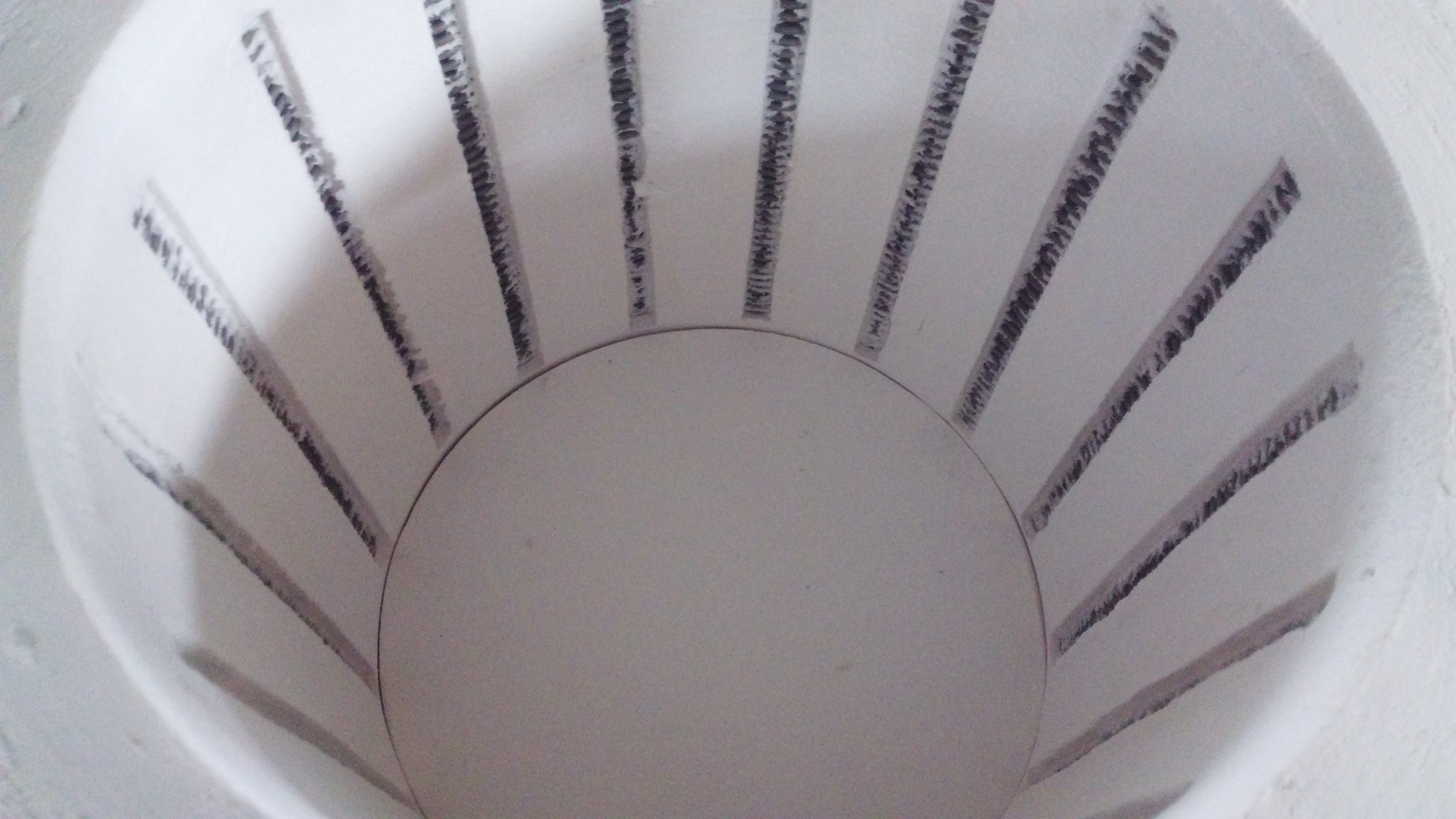

6. Built-in alloy resistance wire ring distribution, the temperature is more uniform to obtain better effect.

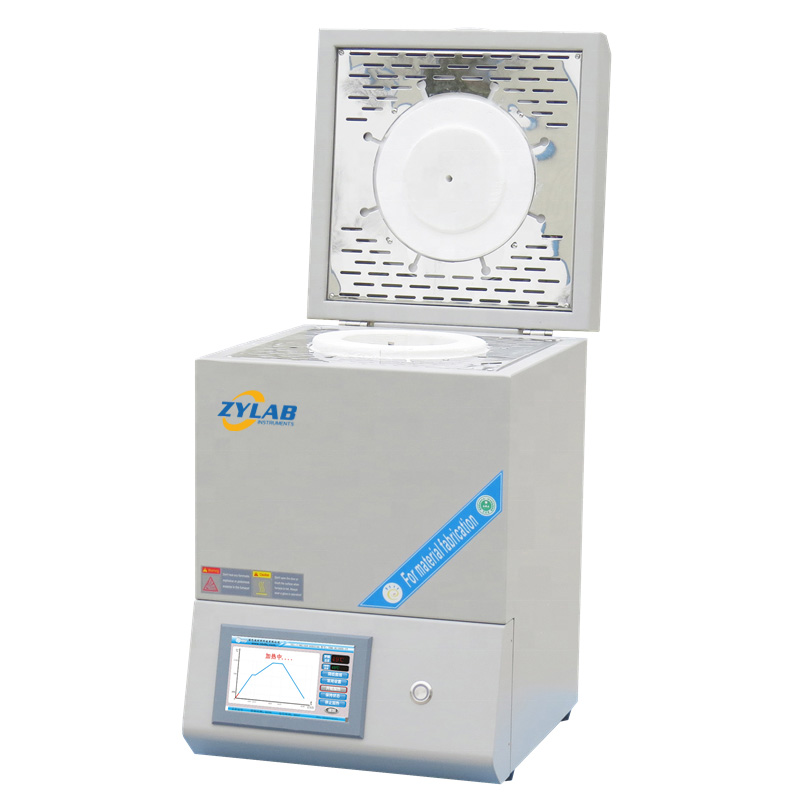

7. Upturn door structure, pick and place materials convenient.
8. Vent hole carefully designed is the perfect solution to the waste gas during material sintering.
9. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
10. Low power consumable, exquisite structure and light weight, it is the ideal crucible furnace for material research labs, also used in factory production.
Main Specifications:
| Model | G1200-15IT |
|
Furnace structure |
•1430 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace); • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50.C. |
| Chamber size
(working space) |
Dia150*200mm
(Optional big size: 240*240mm) |
| Max. temperature | 1200.C(<1hours) |
| Working temperature | RT-1100.C(continuing) |
| Intelligent Touch Screen
Temperature controller |
•PID automatic control and auto-tune function. •30 programmable segments for precise control. •Built in protection for over-heated and broken thermal couple, and leakage. • Centralized control 7” color LCD touch screen man-machine English graphics interface, clear heating process, more intuitive and convenient operation.•.Can store sintering programs to avoid the trouble caused by repeated settings of different experimental processes. |
| Heating rate | 0-20.C /min(Suggest: 10.C/min) |
| Thermocouple | K type |
| Temperature accuracy | +/- 1.C |
| Heating element | High quality alloy heating wire with excellent acid and corrosion resistance |
| Working voltage | AC 208 – 240V, 50/60 Hz (according to requirement) |
| Max. Power | 2.5Kw |
| Dimension | 450(W)*590(H)*400(D)mm |
| Quantity / Net weight | 1set / 40kgs |
| Warranty | 18 months(not including consumable parts, such as heating elements, thermocouple, etc), lifetime support. |
| Certificate | CE, ISO9001 |
Which kinds of industry can use this 1200.C Crucible Furnace?
College & Universities, New Material Research, Chemistry, Medicine, Building Materials, Coal Mining, Metallurgy, Electronics, Ceramic, etc.
Applications:
Used in university laboratories, research institutes, and industrial & mining enterprise laboratories for sintering of metal ceramic materials, heat treatment of small steel parts, and quality testing.
In analytical chemistry industry, mainly used for sample treatment in water qualiy analysis, environmental analysis and other fields. It can also be used for oil and its analysis.
For heat working or treatment of small workpieces in cement and building materials industries.
Used in the pharmaceutical industry for drug inspection, pre-treatment of medical samples,etc.
In the coal mining industry for measuring moisture, ash, volatile matter, ash melting point analysis, ash composition analysis, and elemental analysis,etc.
