36L 1100.C Programmable Muffle Furnace Along All Standard Accessories

36L1100.C Programmable Muffle Furnace Along All Standard Accessories

Introduction:

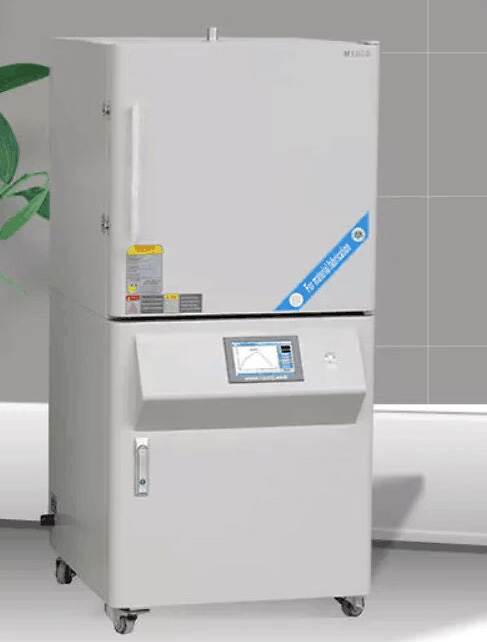

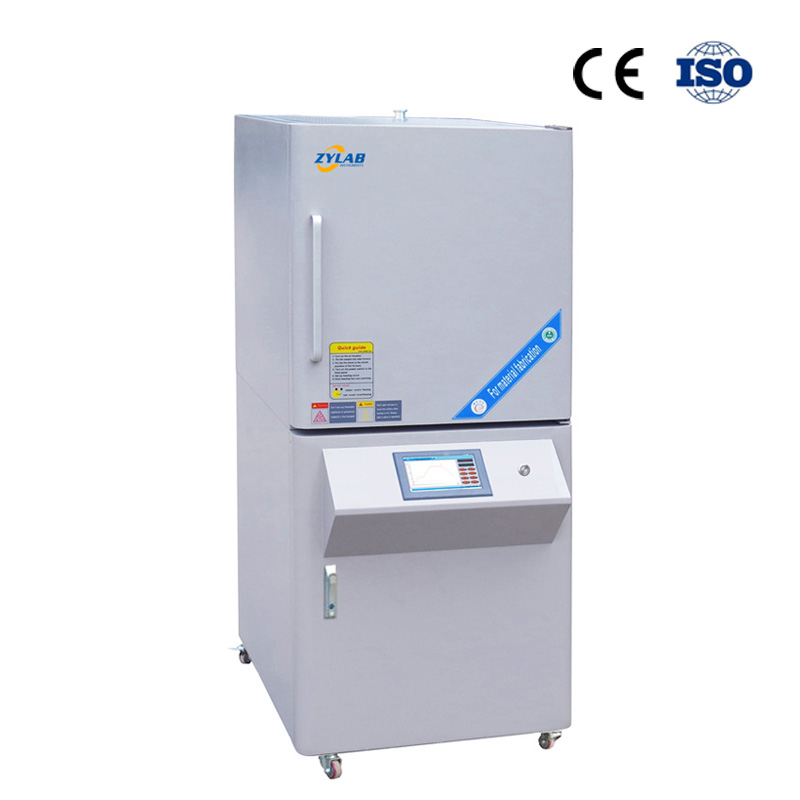

This 36L 1100.C programmable muffle furnace adopts durable compact vertical structure, without auxiliary table, convenient operation.
The tilting angel of operating panel is 43, excellent user experiences.
The exquisite design gives people a smooth experience. The sintering curve that changes with temperature makes you clear at a glance and solves the problem of wrong curve setting. 15 sintering curves can be pre-stored to save the trouble of repeated modification, plus the classic style and touch screen graphic interface, making the operation of the device more easier. Reasonable heat dissipation design scheme makes the surface temperature of the furnace body always lower than 50.C under high temperature.

Features and Benefits:

1. Max. Temperature 1200C, working temperature Rt –1100C.
2. 30 segments programmable, auto control.
3. Intelligent 7” color touch screen LCD temperature controller, man-machine English graphics interface, more intuitive and convenient operation, clear heating process; can store temperature curve to avoid the trouble caused by repeated settings of different experimental processes.

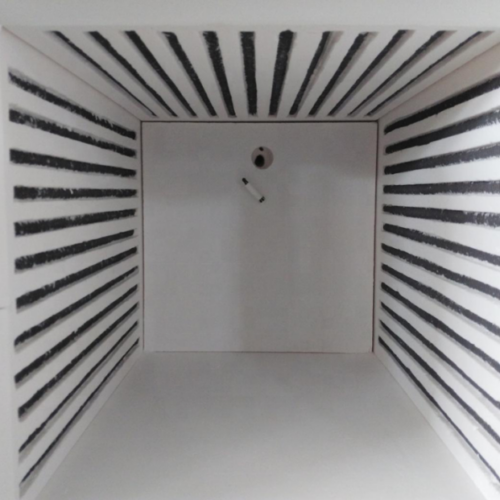

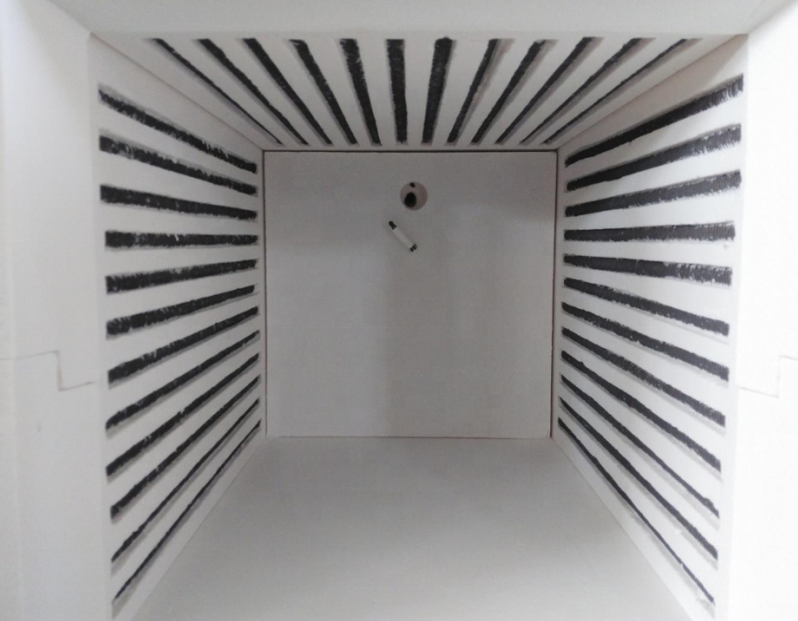

4. Ceramic fibre furnace chamber, to ensure a fast heating rate, and save power.
5. By using special lining import from Japan and high quality resistance wire, protected against chemical contamination at the best and longer service life.
6. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
7. With the exhaust device(an exhaust chimney in the top of the furnace), effectively remove volatiles generated during sintering
8. Come with casters for easy to move, more convenient.
9. Low power consumable, exquisite structure and light weight, it is the ideal muffle furnace for labs and production in factory.
10. Furnace furniture can be customized to maximize the efficient use of space.(Optional)

Technical Parameters of 1100.C Programmable Muffle Furnace:

Which kinds of industry can use this 1100.C Programmable Muffle Furnace?

Universities, Scientific Research, New Materials, Chemistry, Medicine,  Metallurgy, Electronics, etc.

Applications:

A programmable muffle furnace operating at 1100°C can be used in various industrial, scientific, and research applications where controlled high-temperature environments are required. Some common applications include:

Material Testing and Characterization:

The controlled heating environment of the muffle furnace is ideal for studying the thermal properties of materials, such as melting points, phase transitions, and thermal stability. It’s commonly used in materials science laboratories for analyzing ceramics, metals, polymers, and composites.

Heat Treatment:

Muffle furnaces are widely used in the heat treatment of metals. Processes such as annealing, tempering, and stress relieving can be carried out under controlled temperature profiles to enhance the mechanical properties of metals, improve their microstructure, or relieve internal stresses.

Sintering and Ceramics Processing:

Sintering involves compacting and heating materials to form a solid mass without melting them completely. Muffle furnaces are crucial for sintering ceramics, metal powders, and other powdered materials to form dense and structurally sound components.

Ashing and Combustion Analysis:

In laboratories, muffle furnaces are commonly used for ashing processes, where organic samples are combusted at high temperatures to leave behind inorganic residues for analysis. This technique is employed in environmental analysis, forensic science, and agricultural research.

Synthesis and Chemical Reactions:

Muffle furnaces are used in chemical synthesis processes where high-temperature reactions are required, such as calcination, decomposition, and oxidation. These furnaces provide a controlled atmosphere for reactions, ensuring reproducibility and purity of products.

Research and Development:

In R&D settings, muffle furnaces are utilized for various experimental purposes, including catalyst preparation, crystal growth, and specialized materials synthesis.

Industrial Quality Control:

Muffle furnaces are employed in industries such as aerospace, automotive, and electronics for quality control processes. They ensure consistency and reliability in the properties of materials used in manufacturing processes.

Educational Purposes:

Muffle furnaces are used in educational institutions for teaching purposes, allowing students to observe and understand various high-temperature processes and their applications in materials science and chemistry.

In summary, the applications of a programmable muffle furnace operating at 1100°C are diverse, spanning across industries and research fields where precise control of high-temperature environments is essential.
